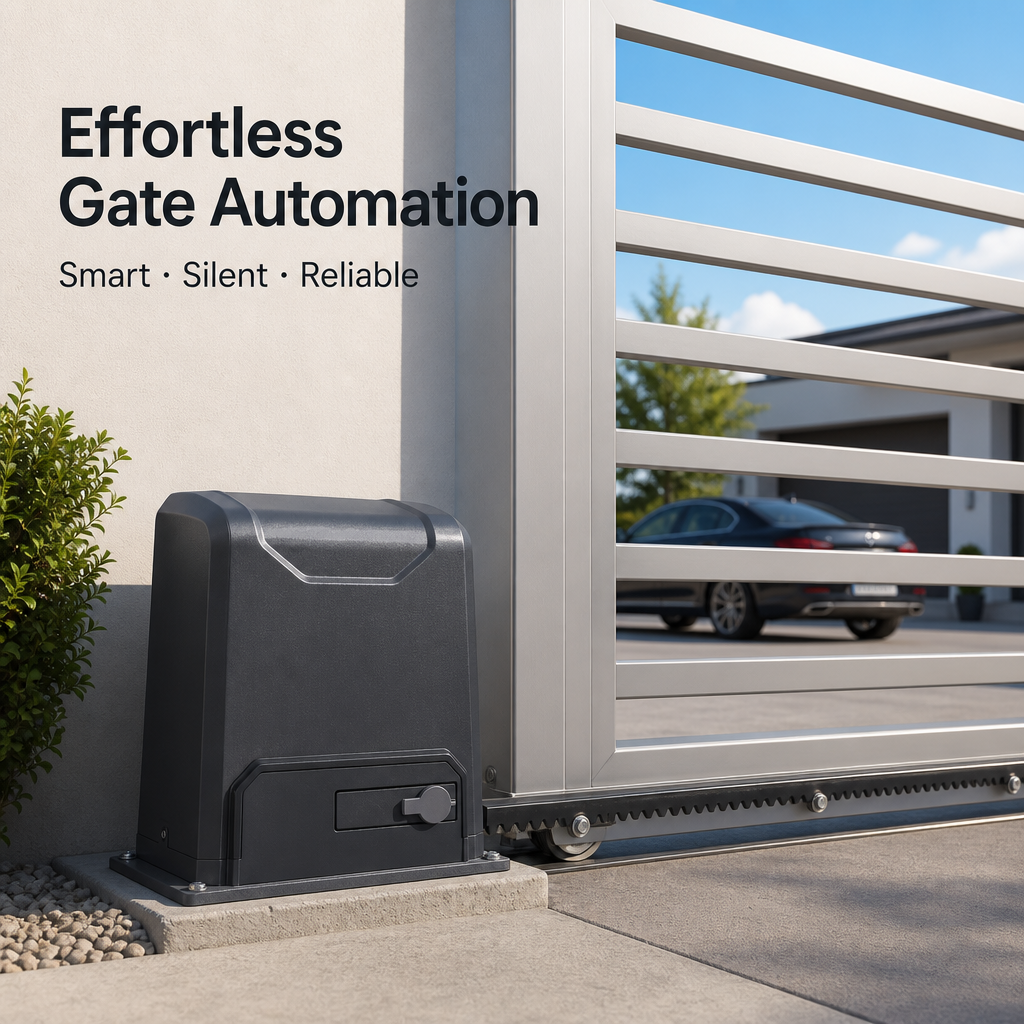

AC Motor Sliding Gate Opener with 800KG Loading Capacity Computer Control Panel and Aluminum Alloy Automatic Gate Machine
AC Motor Sliding Gate Opener with 800KG Loading Capacity Computer Control Panel and Aluminum Alloy Automatic Gate Machine
AC Motor Sliding Gate Opener with 800KG Loading Capacity Computer Control Panel and Aluminum Alloy Automatic Gate Machine
AC Motor Sliding Gate Opener with 800KG Loading Capacity Computer Control Panel and Aluminum Alloy Automatic Gate Machine
Specifications
Model Number :
SL800AC
Operatingspeed :
11~13 meters per minute
MOQ :
Sample order accepted
Delivery Time :
5-10 working days after payment received
Weight :
15KG
Drive :
Gear driven
Brand Name :
SINOMATIC
Limit Switch :
Magnetic or spring limit switch
Packaging Details :
Carton/Plywood box/Pallet
Safety features :
Obstacle Detection and Auto-Stop
Payment Terms :
T/T,Western Union
Rated Power :
370W
Alarm :
available
Price :
negotiable
Noiselevel :
< 58 dB
Remote Control Range :
30m
Supply Ability :
2,000 pcs per month
Application :
outdoor
Max Loading Weight :
800 Kg
Certification :
CE/ ISO
Operatingtemperature :
-20°C to 70°C
Material Of Cabinet :
Die casting aluminum alloy
Place of Origin :
Shenzhen, China.
Optional Accessories :
sensor, lamp, gear rack, WIFI control
Description
AC Motor Sliding Gate Opener 800KG Loading Capacity
The SL800AC/SL1000AC/SL1500AC/SL2000AC gate opener is engineered for commercial and industrial applications, capable of handling weights up to 800/1000/1500/2000kg with operating distances up to 12 meters. Gate movement is achieved through a rotating output gear that drives a gear rack (sold separately) attached to the moving gate.
Product Advantages
Smart circuit board with pure copper motor
Intelligent soft start and slow stop
Motor overheat protection
Limit switch magnet/spring
Remote control with single or multi-key configuration
Intelligent human-machine interaction
Battery low power protection
Product Main Features
  • AC motor with built-in control unit
  • Keypad/single button interface
  • Alarm lamp, photo beam and safety beam interface
  • User-selectable auto-close function
  • Soft start and slow stop (smart version, optional)
  • Auto-reverse function when hitting obstacles during closing (smart version, optional)
  • Manual key release design for emergency power failure
  • Gear driven with built-in control board
  • RF Hopping Code Technology prevents remote code access
  • Manual release key for power outages or emergencies
  • Remote control with 4 buttons for open/close/stop functions
  • Supports up to 25 additional remote controls
Technical Specifications
Model SL800AC
Driven Mode Gear
Opening Speed 13m/min
Motor Power 370W
Remote Control Mode Single button
Output Torque 22N.m
Work Duty S2 20min
Limit Switch Magnetic or spring limit switch
Max. Gate Weight 800KG
Remote Control Range ≥30M
Recording of Remote Controls Max. 25 remote transmitters
Frequency 433.92Hz
Noise (No Load) ≤58dB
Output Shaft Height 50mm
Working Temperature -20℃~70℃
Power Supply 220V/50Hz (Optional: 110V/60Hz)
Package Weight 13KG
Standard Configuration 1 motor, 1 built-in control board, 2 remote controls, 2 keys
Optional Accessories Photocell, steel gear rack, alarm wall lamp, wireless keypad, wireless wall button
AC Motor Sliding Gate Opener with 800KG Loading Capacity Computer Control Panel and Aluminum Alloy Automatic Gate Machine
Installation Procedures
Preparation Work Before Installation
Ensure the sliding gate is correctly installed, the gate rail is horizontal, and the gate can be manually moved smoothly before installing the gate opener.
Cable Installation
To guarantee normal operation and protect cables from damage, bury the motor & power cable and controlling cable separately with two PVC tubes.
Concrete Pedestal
Precast a concrete pedestal with dimensions 500mm x 300mm, depth 250mm in advance to firmly install the gate opener. Ensure the distance between the gate and gate opener is appropriate before casting the pedestal.
