12M Boom Length Double Straight Arm Automatic Barrier Gate with Remote Control for Highway Toll Gate System
12M Boom Length Double Straight Arm Automatic Barrier Gate with Remote Control for Highway Toll Gate System
12M Boom Length Double Straight Arm Automatic Barrier Gate with Remote Control for Highway Toll Gate System
12M Boom Length Double Straight Arm Automatic Barrier Gate with Remote Control for Highway Toll Gate System
Specifications
Model Number :
SN-BG-T01
Product name :
Ultra-long arm barrier gate
MOQ :
Sample order accepted
Delivery Time :
5-10 working days after payment received
Boom length :
Max.12 meters
Price :
Negotiable
Working temperature :
-40°to 85°
Packaging Details :
Carton/Plywood box/Pallet
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,Alipay,Wechat,Credit card
Application :
Over-sized Traffic Flow Area, transit solution,Outdoor,tolling solution,Parking solution
Supply Ability :
1,000 pcs per month
Certification :
CE/ ISO
Housing material :
2.0 mm cold rolled steel sheet
Place of Origin :
Shenzhen, China.
Power supply :
AC220V/ AC110V(±10%)
Brand Name :
SINOMATIC
Housing Color :
Yellow/Grey/Etc
Description
Double Straight Arm Length 8-12M Boom Barrier Factory Traffic Automatic With Remote Control Highway Toll Gate System
Product Overview

This ultra-long, double-arm rail gate is specifically engineered for extra-wide passages such as railway crossings and wide factory gates. Featuring a brushless DC motor for stable lifting and lowering operations with adjustable speed control, it provides reliable performance in demanding industrial environments.

For passages wider than 15 meters where center column installation is not feasible, two T01 gates can be installed opposite each other to create an effective dual-gate configuration.

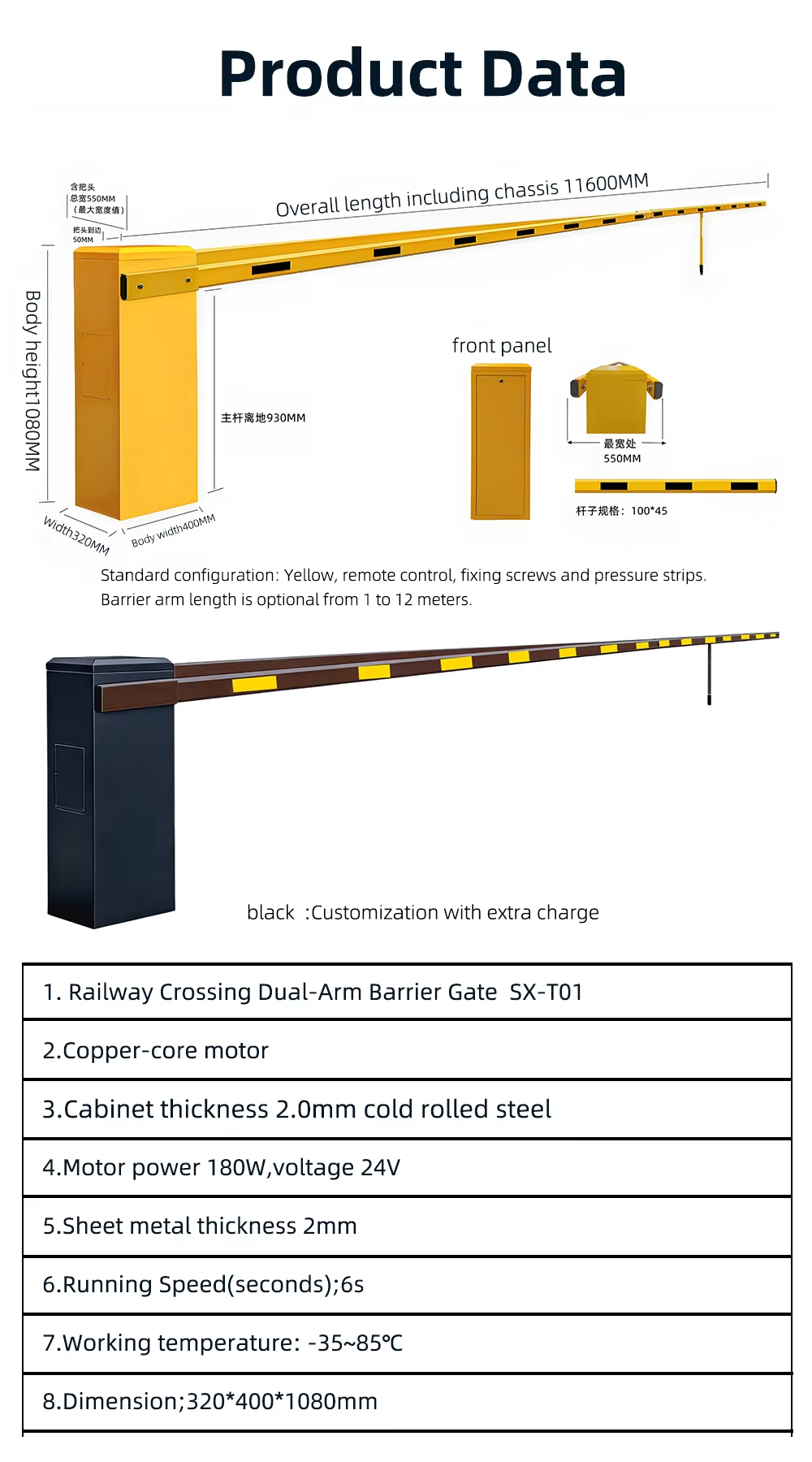

Technical Specifications
Parameter Specification
Model T01
Type Straight Rod Rail Gate / Ultra-long Double-Arm Gate
Working Voltage 24V 15A +10% / 50HZ
Motor Power 180W - 200W (Brushless DC Motor)
Drive Mode Brushless DC / Servo Motor
Working Temperature -30°C ~ +75°C
Relative Humidity ≤ 90%
Rated Torque 50 N.M
Input Power 480W
Rated Current 18A
Anti-wind Rating Level 8
Chassis Weight 65 KG
Chassis Color Yellow (Customizable)
Key Functions & Features
  • Double-Arm Design: Equipped with dual rods for enhanced stability and security on wide passages
  • Anti-smash Function: Detects obstacles during closure and automatically reverses
  • Speed Adjustable: Allows for smooth opening and closing operations
  • Smooth Deceleration: Digital control ensures a soft stop at limit positions, reducing mechanical shock
12M Boom Length Double Straight Arm Automatic Barrier Gate with Remote Control for Highway Toll Gate System
Application Advantages
Railway Crossings

12-meter long arm effectively blocks large areas, preventing unauthorized entry into railway operation zones. Fast 3-16s running speed ensures timely operation synchronized with train schedules.

Railway-Road Mixed Traffic Intersections

Comprehensive coverage of wide intersection areas reduces traffic conflicts. Stable operation withstands frequent opening and closing cycles in busy environments.

Port Docks

Excellent environmental adaptability maintains stable performance in varying weather conditions. Controls entry and exit of large transport vehicles to optimize logistics efficiency.
