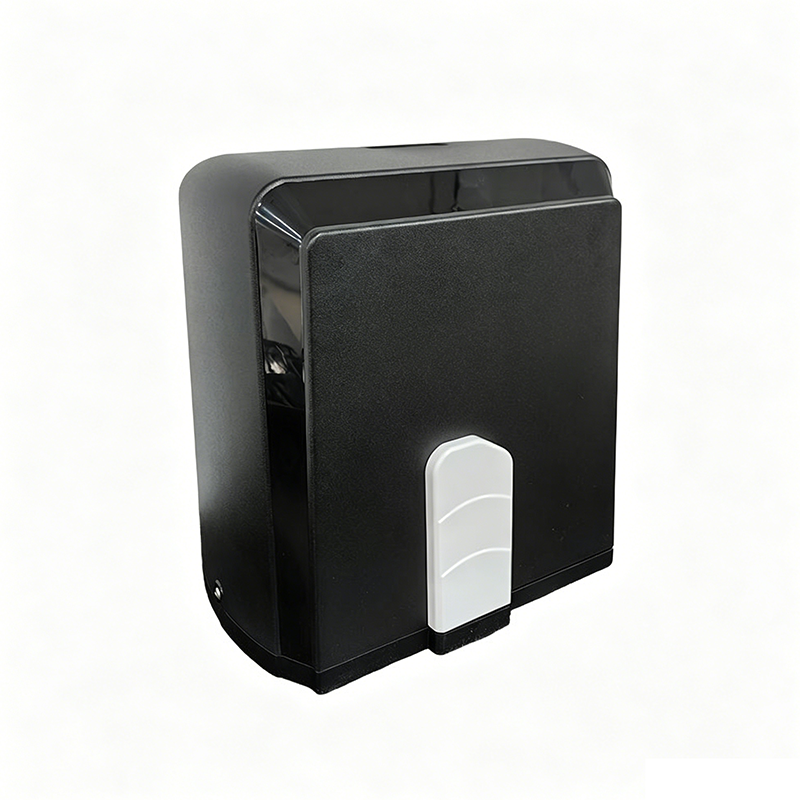

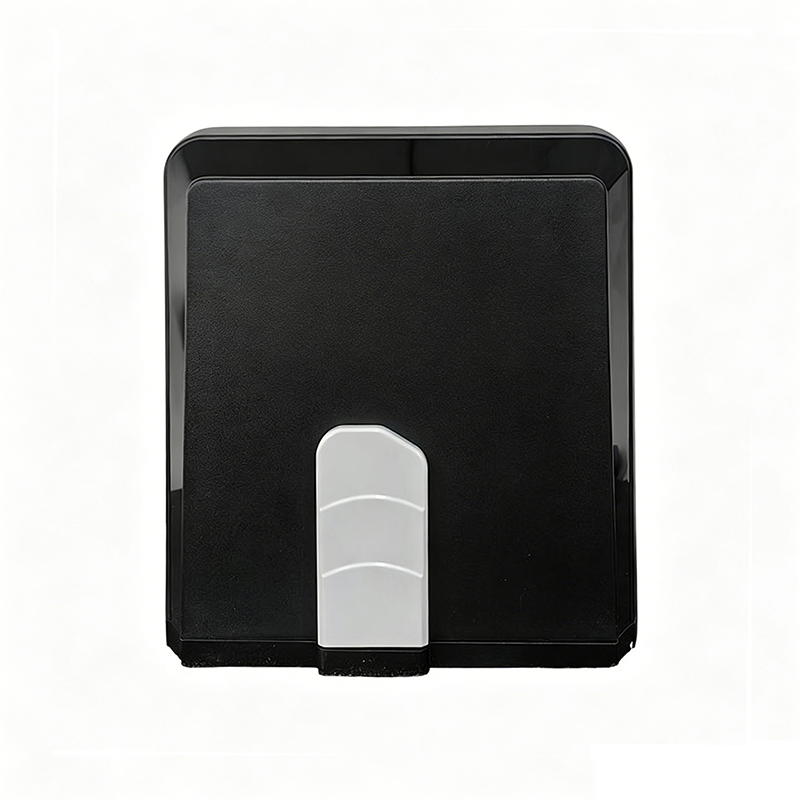

GA1000DC High-Speed Sliding Gate Opener with 250W Motor and 1000 Kg Weight Capacity Featuring WiFi/GSM Support
GA1000DC High-Speed Sliding Gate Opener with 250W Motor and 1000 Kg Weight Capacity Featuring WiFi/GSM Support
GA1000DC High-Speed Sliding Gate Opener with 250W Motor and 1000 Kg Weight Capacity Featuring WiFi/GSM Support
GA1000DC High-Speed Sliding Gate Opener with 250W Motor and 1000 Kg Weight Capacity Featuring WiFi/GSM Support
Specifications
Waterproof Rating :
IP44
Motor Type :
DC
Payment Terms :
T/T,Western Union,credit card/Cash/Alipay,L/C,D/A,D/P
Max Gate Length :
12
Remote Control Frequency :
433.92Hz
Supply Ability :
10,000 pcs per month
Shell :
Waterproof
Model Number :
GA1000DC
Maximum Gate Speed :
24M per minute
Battery Specification :
24V/2500mA×1pc
MOQ :
Sample order accepted
Delivery Time :
5-10 working days after payment received
Motorpower :
250W
Price :
negotiable
Packing Material :
Carton
Packaging Details :
Carton/Plywood box/Pallet
Soft Stop :
-20°C~70°C
Certification :
CE/ ISO
Weight Capacity :
1000 Kg
Place of Origin :
Shenzhen, China.
Driven Mode :
Gear
Brand Name :
SINOMATIC
Description
GA1000DC High-Speed Sliding Gate Opener
WiFi/GSM Support • Aluminum Construction • 250W Motor • 56dB Noise • Midcentury Design
Product Overview
The GA1000DC Sliding Gate Automation Kit is engineered to power gates weighing up to 1000kg with maximum gate lengths of 8 meters. Features include WiFi/GSM connectivity, aluminum construction, and a quiet 56dB operation.
Professional Installation Guidelines
Gate movement is achieved through the rotating output gear of the gate opener driving a gear rack (sold separately) attached to the moving gate. Operation requires a single press of the remote control to open, and another to close - a safety feature ensuring secure operation.
The opener must be installed within private property boundaries, never externally to the property perimeter.
Important Safety Notice: All maintenance and modifications must be performed with power disconnected. Any work on AC power components requires a licensed electrician.
Required Installation Tools
  • Tape measure
  • Level
  • 12mm concrete drill and hammer (for expansion screws)
  • Phillips head screwdriver
  • Straight screwdriver
Advanced Product Features
  • Soft start and slow stop operation
  • Automatic reverse when encountering obstacles
  • Adjustable motor output force, stall force, and slow stop distance
  • Automatic close with adjustable waiting time
  • Partial opening function for pedestrian access
Technical Specifications
Specification GA800DC GA1000DC
Power Supply 110VAC/60Hz; 220VAC/50Hz; DC24V
Motor Power 200W 250W
Gate Moving Speed 18m/min 24m/min
Maximum Loading Weight 800kg 1000kg
Remote Control Distance ≥30m
Remote Control Mode Single button mode / Three button mode
Limit Switch Spring/Magnetic limit switch
Working Duty S2, 20min
Frequency 433.92MHz
Working Noise ≤56dB
Working Temperature -20℃~+70℃
Overall Dimensions 293x247x300mm
Package Weight 12.6kg 13kg
Standard Unit Components
  • Gate Motor
  • Control board & box
  • 2 remote controls
  • 24V/2.5Ah lithium battery
  • Mounting plate
  • Manual release key
  • User manual
  • Bolts & nuts
Optional Accessories
  • Metal or Nylon Gear Rack (order according to gate length)
  • Photo beam sensor
  • Keypad systems
  • Push button
  • Warning light
  • Solar panel
  • Backup batteries
  • Additional remote controls (requires pairing)
  • Infrared photocell for obstacle detection
  • Wireless keypad for secure code access
  • Wired control for external push-button operation
  • Alarm lamp for operational alerts
About Our Company
SHENZHEN SINOMATIC TECHNOLOGY CO, LIMITED, located in Shenzhen China, is a high-tech enterprise specializing in R&D, production, and sales of access control solutions. Our product portfolio includes pedestrian access control turnstiles, vehicle barrier gates, hydraulic road bollards and blockers, and automatic gate operators.
Our products are deployed in diverse settings requiring access control, including government facilities, installations, educational institutions, healthcare facilities, airports, terminals, tourist attractions, and parking facilities. With exports to over 100 countries worldwide, we maintain our commitment to stable functionality, excellent performance, and providing affordable pricing to establish long-term, mutually beneficial partnerships.
