Adjustable Length Brushless DC Motor Intelligent Car Parking Management Automatic Barrier Boom Gate
Adjustable Length Brushless DC Motor Intelligent Car Parking Management Automatic Barrier Boom Gate
Adjustable Length Brushless DC Motor Intelligent Car Parking Management Automatic Barrier Boom Gate
Adjustable Length Brushless DC Motor Intelligent Car Parking Management Automatic Barrier Boom Gate
Specifications
Motor Type :
BLDC motor
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,Alipay,Wechat,Credit card
Surface Finish :
Powder coating
Supply Ability :
1,000 pcs per month

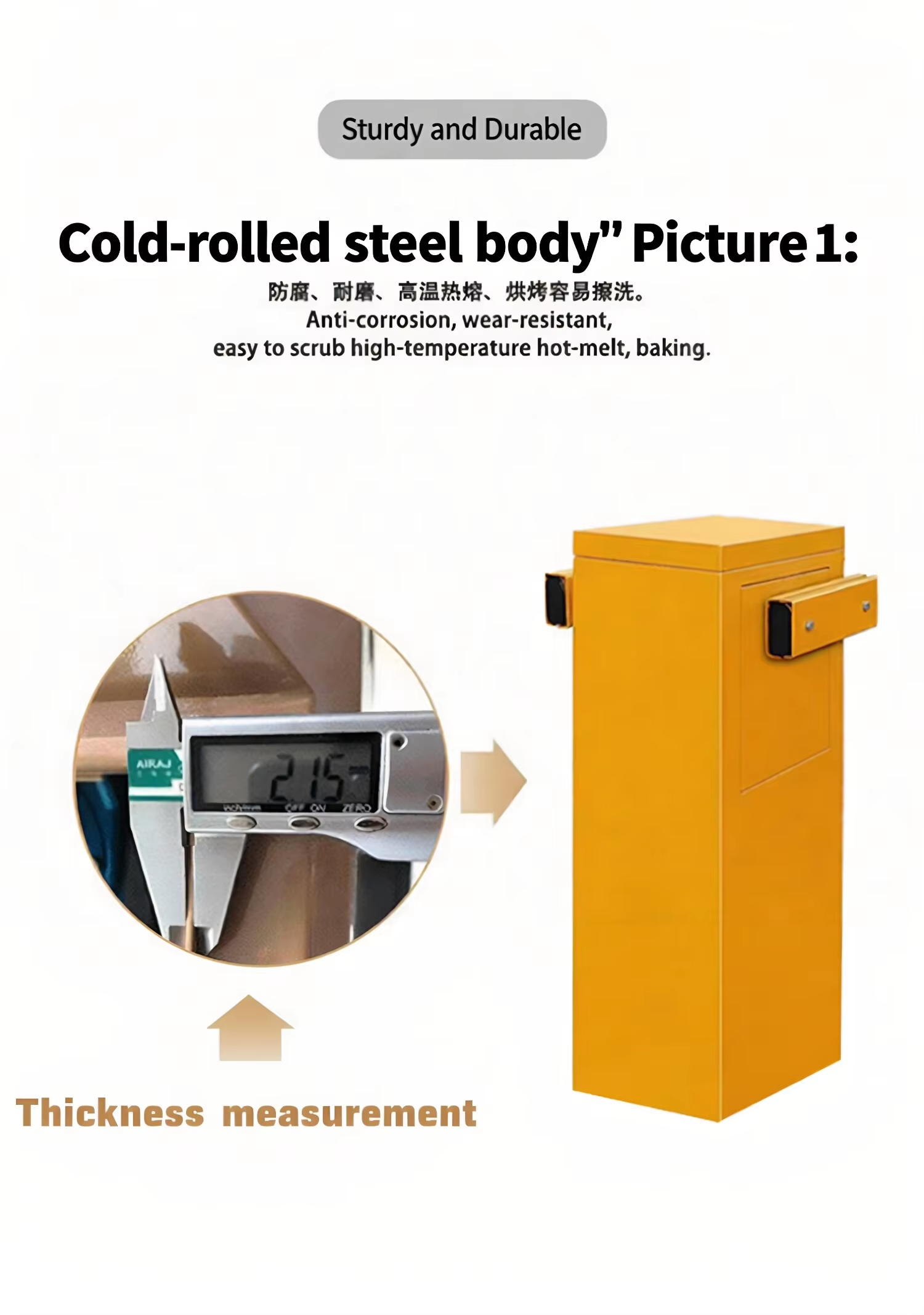

Housing material :
2.0 mm cold rolled steel sheet
Model Number :
SN-BG-T01
Application :
Over-sized Traffic Flow Area, transit solution,Outdoor,tolling solution,Parking solution
Traffic Light Indicator :
Supported
MOQ :
Sample order accepted
Delivery Time :
5-10 working days after payment received
Barrier Type :
Automatic barrier
Price :
Negotiable
Housing Material :
Steel
Packaging Details :
Carton/Plywood box/Pallet
Power supply :
AC220V/ AC110V(±10%)
Certification :
CE/ ISO
Working temperature :
-40°to 85°
Place of Origin :
Shenzhen, China.
Product name :
Ultra-long arm barrier gate
Brand Name :
SINOMATIC
Description
Adjustable Length Brushless DC Motor Intelligent Car Parking Management System
Customizable automatic vehicle barrier boom gate designed for reliable access control in demanding industrial environments.
Product Overview
The double pole barrier gate incorporates advanced electronic control technology and precision mechanical processing, featuring unlimited position settings. The innovative switch design eliminates movement debugging requirements while offering adjustable speed control and sufficient buffering for smooth, reliable operation. Engineered for frequent use with extended lifespan, the DC airborne gate control board utilizes ARM7 embedded system technology for superior performance in industrial parks, logistics centers, and railway applications.
Technical Specifications
Parameter Specification
Model T01
Type Straight Rod Rail Gate / Ultra-long Double-Arm Gate
Working Voltage 24V 15A +10% / 50HZ

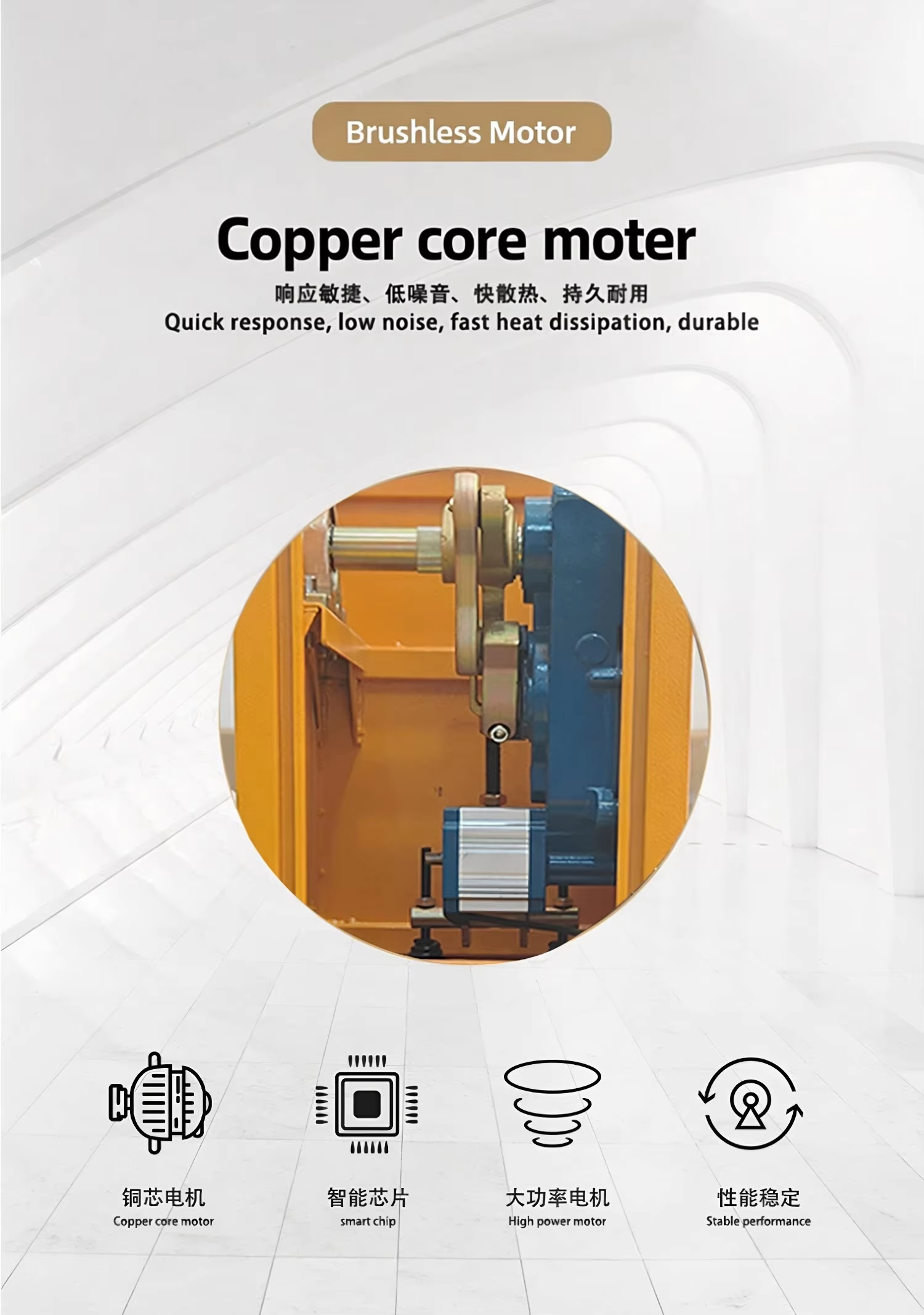

Motor Power 180W - 200W (Brushless DC Motor)
Drive Mode Brushless DC / Servo Motor
Working Temperature -30°C ~ +75°C
Relative Humidity ≤ 90%
Rated Torque 50 N.M
Input Power 480W
Rated Current 18A
Anti-wind Rating Level 8
Chassis Weight 65 KG
Chassis Color Yellow (Customizable)
Key Functions & Features
  • Double-Arm Design: Equipped with dual rods for enhanced stability and security on wide passages
  • Anti-smash Function: Detects obstacles during closure and automatically reverses
  • Speed Adjustable: Allows for smooth opening and closing operations
  • Smooth Deceleration: Digital control ensures a soft stop at limit positions, reducing mechanical shock
Adjustable Length Brushless DC Motor Intelligent Car Parking Management Automatic Barrier Boom Gate Adjustable Length Brushless DC Motor Intelligent Car Parking Management Automatic Barrier Boom Gate Adjustable Length Brushless DC Motor Intelligent Car Parking Management Automatic Barrier Boom Gate
Application Advantages
Railway Crossings
12-meter long arm effectively blocks large areas, preventing unauthorized entry into railway operation zones. Fast 3-16s running speed ensures timely operation synchronized with train schedules.
Railway-Road Mixed Traffic Intersections
Comprehensive coverage of wide intersection areas reduces traffic conflicts. Stable operation withstands frequent opening and closing cycles in busy environments.
Port Docks
Excellent environmental adaptability maintains stable performance in varying weather conditions. Controls entry and exit of large transport vehicles to optimize logistics efficiency.
