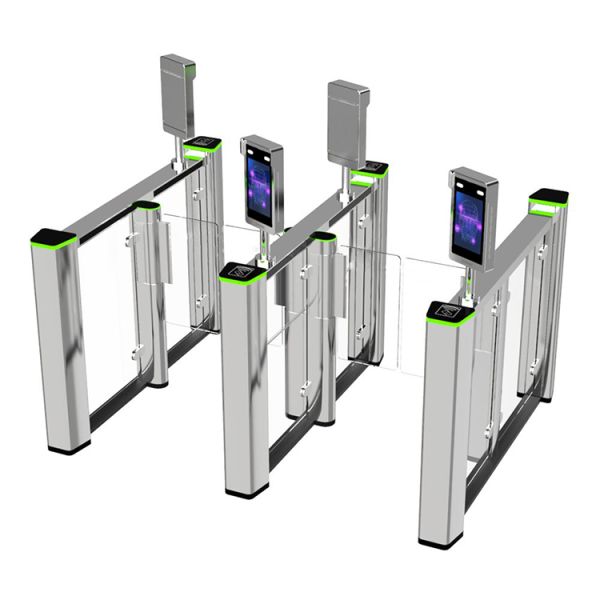

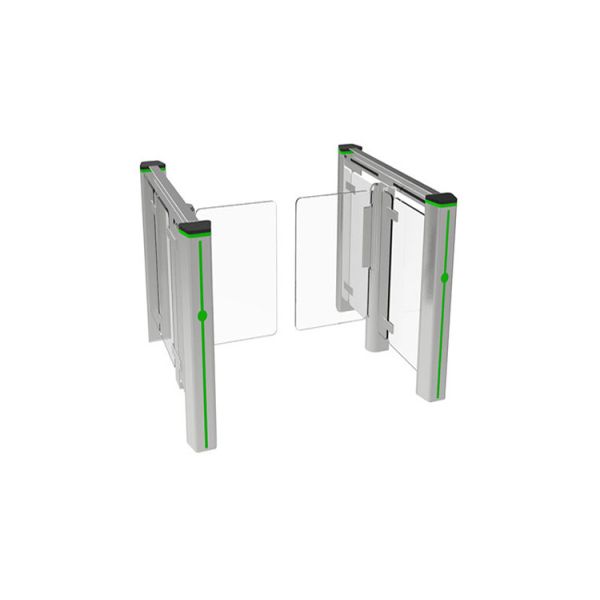

Fast Response BLDC Motor Speedlane Turnstile with IP45 Protection and RS485 Communication
Fast Response BLDC Motor Speedlane Turnstile with IP45 Protection and RS485 Communication
Fast Response BLDC Motor Speedlane Turnstile with IP45 Protection and RS485 Communication
Fast Response BLDC Motor Speedlane Turnstile with IP45 Protection and RS485 Communication
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HSG150
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Motor :
BLDC motor
Power supply :
AC220V/110V, 50/60Hz
MCBF :
5,000,000 Cycles
Service life :
5 million times
Material thickness :
1.2mm at least
Passage width :
600mm to 1000mm
Description
Fast Response BLDC Motor Pedestrian Speedlane Turnstile IP45 RS485
Long-Life Performance High Operation Dependability and Fast Response Speedlane Turnstile
Product Overview
Sinomaitc High Speed Gate controls pedestrian entry and exit in restricted areas, designed for high pedestrian traffic flow in both directions. The robust brushed stainless steel construction ensures durability, rust resistance, and waterproof performance suitable for both indoor and outdoor installations.
Key Features
  • Long-life performance with high operational dependability and fast response
  • Smooth, quiet operation with no mechanical impact
  • Selectable single or bi-directional operation
  • Anti-collision protection with automatic gate closure
  • Motor protection from external force collisions
  • Automatic reset function with adjustable timing
  • Anti-pinch safety with photocell sensors
  • Compatible with access control, consumption, ESD, and e-ticket systems
  • Remote control administration capability
  • LED indicator lamps
Technical Specifications
Model SN-HSG150
Case Material SS304 Stainless Steel
Barrier Arm Material Acrylic
Production Process CNC Laser Cutting
Dimensions 1210*150*1060mm (Customization available)
Power Input AC100-240V, 50/60Hz
Operating Voltage DC24V, 3A, 40W (Servo Motor Optional)
Passage Width 600mm to 1000mm
Operating Time 1 Second
Throughput Rate 30 persons/minute (Normally Closed) or 40 persons/minute (Normally Open)
MCBF 5,000,000 Cycles
Operating Temperature -20℃ to +60℃
Protection Level IP45
Communication Interface Standard RS485 interface, distance ≤1200 meters
Integration & Compatibility
Features standard relay signals for seamless integration with third-party access control systems including RFID, fingerprint, and biometric readers. Ample mounting space accommodates external devices such as displays, counters, card readers, push buttons, card collectors, coin inserts, and barcode/QR readers.
Safety & Emergency Features
Swing arms automatically open for free passage during power outages. Supports standard and handicapped configurations with wide passageways for wheelchairs and passengers with large luggage.
Applications
Ideal for intelligent access management in hotels, gyms, office buildings, banks, shopping malls, reception areas, stations, docks, subways, factories, and enterprises requiring organized pedestrian flow control.
Frequently Asked Questions
What is your product's biggest advantage?
DC Brushless Motor technology ensures maintenance-free operation throughout product life, no attrition, low noise, and high intelligence.
What is your flap gate's opening and closing time?
≤0.4 seconds
What is the swing barrier gate working environment?
Suitable for both indoor and outdoor installations (with shelter).
Can I customize the product?
Yes, we welcome OEM customization as we are the manufacturer.
What is your warranty policy?
1-year time warranty included.
