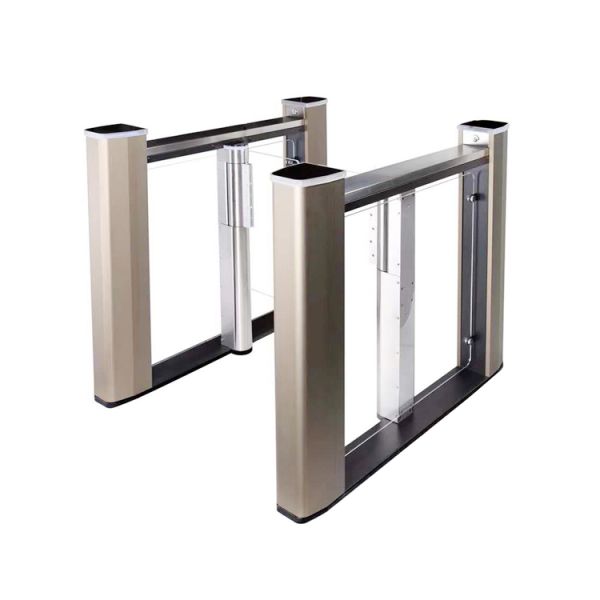

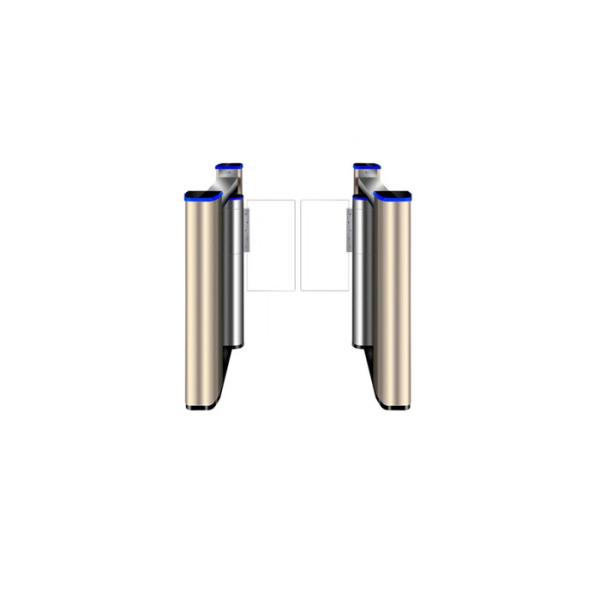

ARM7 Embedded Control Swing Gate Turnstile with 5 Million Times Service Life and Bi-directional Arm Turning
ARM7 Embedded Control Swing Gate Turnstile with 5 Million Times Service Life and Bi-directional Arm Turning
ARM7 Embedded Control Swing Gate Turnstile with 5 Million Times Service Life and Bi-directional Arm Turning
ARM7 Embedded Control Swing Gate Turnstile with 5 Million Times Service Life and Bi-directional Arm Turning
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HSG150
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Motor type :
Brushless DC motor
Passage width :
600mm(1000mm optional)
Arm material :
Clear Acrylic
Arm turning degree :
Bi-directional
Service Life :
5 million times
Communication interface :
RS485 , TCP/IP
IP rate :
IP 54
Material :
SS304/aluminum/acrylic/steel
Description
Acrylic Arm ARM7 Embedded Control Board Baffle Swing Gate Turnstile
High-speed stainless steel swing turnstile with innovative design, superior quality, and rapid control for entry and exit management. Compatible with RFID, barcode, fingerprint, or facial verification devices. Data transmission via TCP/IP or RS-485 protocols. Ideal for access control in schools, offices, gyms, residential areas, supermarkets, and similar facilities.
Features an ARM7 embedded system as the core controller, providing faster processing, enhanced function extension capabilities, and superior stability. Specifically designed for turnstiles utilizing brushless DC motors.
Product Specifications
1Power Input220V/110V
2Working Temperature-35℃ to 75℃
3Flap Width300mm to 500mm
4Passage Width600mm (1000mm optional)
5Passing SpeedNormally open: 50 persons/min; Normally closed: 30 persons/min
6Manufacturing TechniqueLaser cutting, brushed finish
7MotorDC Brushless motor
8Gate Opening and Closing Time≤ 0.4S
9Flap MaterialAcrylic
10Working EnvironmentIndoor and outdoor (with rainshed)
11Input Connection+12V Level Signal or Pulse Width >100ms Pulse Signal, Current >100ms
12MaterialSS304, acrylic, steel, aluminum
Product Dimension
ARM7 Embedded Control Swing Gate Turnstile with 5 Million Times Service Life and Bi-directional Arm Turning
Features and Functions
  • Maintenance-free DC brushless motor with digital positioning technology
  • Mechanical anti-pinch function for enhanced pedestrian safety
  • Real-time fault self-test and alarm prompts for system safety and easy maintenance
  • Light indication and gate induction automatic lock function to guide pedestrians and prevent forced passage
  • Emergency and special situation processing modes with standard input/output interfaces for system integration
  • Superior combination capability - different styles and series can be combined without affecting performance
  • Powerful system expansion capability allowing new product additions at any time
  • Remote control management for gate operation, meeting user requirements and fire safety standards
  • Advanced anti-collision function - gate stops and reverses when obstructed during operation
  • Exceptional durability with service life up to 5 million cycles
Production Photos
ARM7 Embedded Control Swing Gate Turnstile with 5 Million Times Service Life and Bi-directional Arm Turning ARM7 Embedded Control Swing Gate Turnstile with 5 Million Times Service Life and Bi-directional Arm Turning
Case Reference
ARM7 Embedded Control Swing Gate Turnstile with 5 Million Times Service Life and Bi-directional Arm Turning
Frequently Asked Questions
What is your product's biggest advantage?
DC Brushless Motor - maintenance-free for life, no attrition, low noise, high intelligence.
What is your flap gate's opening and closing time?
≤ 0.4 seconds
What is the swing barrier gate working environment?
Suitable for both indoor and outdoor use (with shelter).
Can I customize it?
Yes, we welcome OEM orders. We are the manufacturer and support customization.
What's your warranty?
1-year time warranty.
