RS485 BLDC Motor Pedestrian Swing Gate with SS304 Auto Arm for Secure Access Control
RS485 BLDC Motor Pedestrian Swing Gate with SS304 Auto Arm for Secure Access Control
RS485 BLDC Motor Pedestrian Swing Gate with SS304 Auto Arm for Secure Access Control
RS485 BLDC Motor Pedestrian Swing Gate with SS304 Auto Arm for Secure Access Control
RS485 BLDC Motor Pedestrian Swing Gate with SS304 Auto Arm for Secure Access Control
RS485 BLDC Motor Pedestrian Swing Gate with SS304 Auto Arm for Secure Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SW03
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
3,000pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Motor :
BLDC motor
Pass speed :
30 person/minute
Material :
SS304
Control signal :
dry contact or level signal
Control voltage :
24V
Battery :
Not include
Description
RS485 BLDC Motor Pedestrian Swing Gate Auto Arm TCP SS304
Fast Opening And Steady Running - 5 Million Operation Cycles
Silver color auto arm gate with intelligent channel management system featuring non-contact IC, ID card, or barcode card authentication technology.
Swing Barrier Control System
This advanced system integrates micro-control technology, communication protocols, and computer networking to deliver comprehensive channel monitoring and management capabilities including ticket sales, inspection, queries, summaries, statistics, and reporting.
Highlights: High-standard welded cabinet with slot-throwing treatment, manual fine grinding, brushless motor with anti-violent impact protection, automatic reset functionality, industrial-grade trunking layout for electronic circuits, and premium brand components ensuring up to 5 million operation cycles.
Technical Specifications
Arm length (optional) 600-900mm
Angle 180 degrees (swing arm drive angle)
Swing direction One-way/Bi-directional
Supply Voltage AC220/110V(±10%)V, 50±10%Hz
Drive motor DC brushless motor (24V)
Input interface Dry contact signal or 12V level signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA
Communication interface RS485/IP/TCP
Indicator light LED indicator, card reader
Opening transit speed 40 persons per minute
Closing transit speed 25-30 persons per minute
Flap Opening/Closing Time 1-2s
Power-on time 3 seconds to enter passage state after power-on
Work environment Indoor/Outdoor
Working temperature -20℃ ~ 60℃
Humidity ≤90% (No condensation)

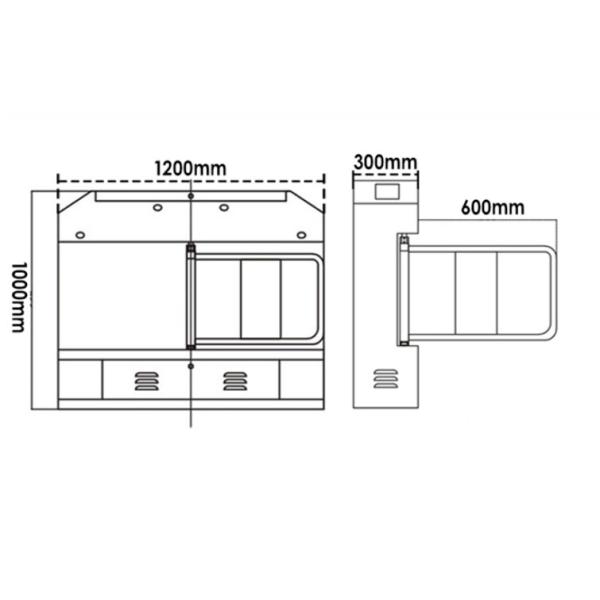

Product Dimension
RS485 BLDC Motor Pedestrian Swing Gate with SS304 Auto Arm for Secure Access Control
Main Functions and Features
  • Working method configurable via main panel buttons
  • Anti-pinch and anti-collision protection with 2Kg force detection
  • Anti-illegal entry and anti-intrusion with automatic reverse direction closure
  • Anti-collision with automatic closure when no valid signal is detected
  • Gate protection with motor damage prevention during external force collisions
  • Synchronization capability for multiple lanes
  • Auto-reset function with adjustable timeout (1-60s, default 10s)
  • Reset functionality via photocells
  • Anti-pinch protection using photocells
  • Standard electrical interface for integration with various readers and writers
  • Passenger counting with LED display (optional)
  • Direction display for passenger guidance
  • Card-reading with or without memory function
  • Population control capability through management software
Applications
Intelligent Vertical Swing Turnstile compatible with IC card, ID card, barcode card, and fingerprint reading devices. Provides civilized, orderly access management for staff and visitors. Ideal for stations, wharves, subways, factories, office buildings, hotels, clubs, intelligent communities, and enterprises requiring sophisticated access control systems.
