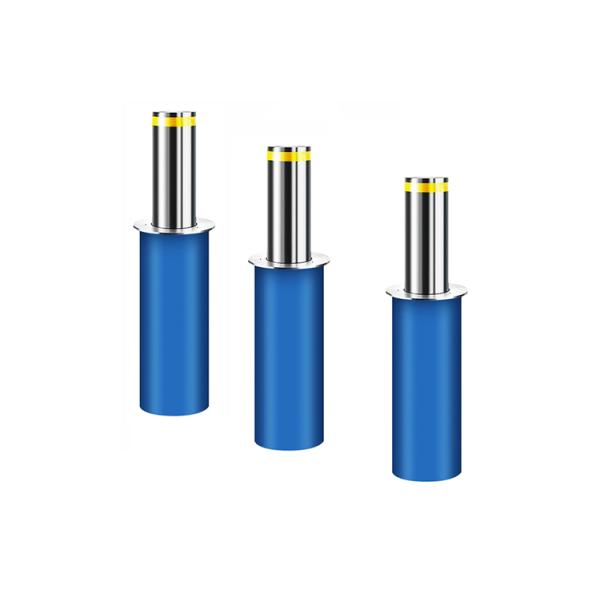

Brushed Finishing SS304 Automatic Rising Bollards with 100m Remote Control Hydraulic Security System
Brushed Finishing SS304 Automatic Rising Bollards with 100m Remote Control Hydraulic Security System
Brushed Finishing SS304 Automatic Rising Bollards with 100m Remote Control Hydraulic Security System
Brushed Finishing SS304 Automatic Rising Bollards with 100m Remote Control Hydraulic Security System
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HRB01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T, Western Union, , credit card/Cash/wechat
Supply Ability :
1000 pcs a month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Control mode :
wired/wireless
Bollard material :
SS304
IP grade :
IP68
Surface treatment :
brushed finishing
Power supply :
100V-240V
Control voltage :
24V
Description
Brushed Finishing Auto Lifting Retractable Rising Bollards
100m Remote Control Distance with Optional Colors
Automatic hydraulic road bollards with 100-meter remote control capability and multiple color options for versatile security applications.
SINOMATIC Road Bollard Advantages
  • Multiple steel thickness options available (6mm default)
  • Custom color selection available
  • Customized sizing options
  • Steady and safe operation with OMRON PLC control system
  • Fast rising time and durable quality with hydraulic pressure
  • Durable stainless galvanization housing
  • Optimized frame structure with high anti-impact and loading capability
  • High security and anti-collision ability
  • Reflective band and low energy consumption LED light for night visibility
Brushed Finishing SS304 Automatic Rising Bollards with 100m Remote Control Hydraulic Security System
Product Specifications
Product Name Automatic hydraulic road bollard
Material 304 stainless steel
Control Mode Integrated hydraulic and electro
Power Supply 110V/220V (control voltage 24V)
Bollard Diameter 168mm, 219mm (default), 273mm, 324mm etc
Rising Height 600mm (default), 800mm, 1000mm
Wall Thickness 6mm (default), 8mm, 10mm, 15mm, 20mm
Waterproof Degree IP68
Surface Treatment Brushed finishing
Operating Temperature -40℃ to +70℃
Control Model Push button/remote control standard, loop detector/card reader optional
Running Speed 2-4S (ascending)
Safety Signs Reflective tape/LED warning light zipper/loop detector system traffic lights
Cylinder Stainless steel/plastic coating for steel tube
Optional Function Traffic Lamp/Solar light/Hand Pump/Safety Photocell, Reflective tape/sticker, buzzer
Optional Color Brushed titanium gold, champagne, rose gold, Brown, red, purple, sapphire blue, gold, dark blue paint, chocolate, stainless steel, Chinese red paint
Application
The rising bollards are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicle traffic is restricted.
Main Features
System: Electric-hydraulic system
Max passing pressure: 80T to 120T trucks
Voltage: AC220V 50Hz Integrated
Power: 300W Integrated
Up time: 3-6S
Down time: 3-6S
Working temperature: -65℃~75℃
Storage Environment: -10℃~65℃, water-proof, damp-proof, dust-proof
Material: 304 stainless steel
Rising height: 600mm (standard) Max can be 1000mm
Bollard Thickness: 6mm (standard), 8mm, 10mm, 12mm, 20mm optional
Diameter: 219mm (Standard) 273mm (optional)
Structure: With load-bearing steel beam column, anti-collision steel beam column
LED light (optional)
Reflective sticker: 2 strips
Link-control interface
Manual lowering capability during power outages
IP rating: IP68
Weight: 150±KG Integrated
Reversible operation during rising and falling
Device running noise ≤60 decibel
Waterproof integrated hydraulic device drive
Hydraulic cylinder double sealed for waterproof rating
Hydraulic drive with hydraulic lock
PLC programming command control system
Solenoid valve voltage 24V
Remote control distance: 50M-100M (environment dependent)
Control box with adjustable text display (Up, Down, Action, Time control)
Text display with Chinese and English bilingual
PLC built-in encryption system
Water immersion performance: 48 hours without leakage
