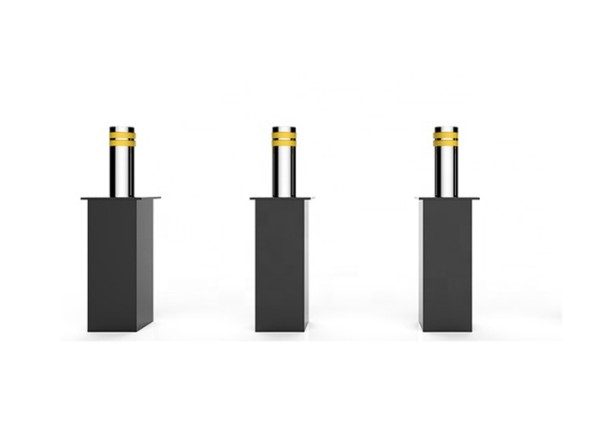

SS304 Stainless Steel Hydraulic Rising Bollard with 80T Loading Capacity and IP68 Waterproof Rating
SS304 Stainless Steel Hydraulic Rising Bollard with 80T Loading Capacity and IP68 Waterproof Rating
SS304 Stainless Steel Hydraulic Rising Bollard with 80T Loading Capacity and IP68 Waterproof Rating
SS304 Stainless Steel Hydraulic Rising Bollard with 80T Loading Capacity and IP68 Waterproof Rating
SS304 Stainless Steel Hydraulic Rising Bollard with 80T Loading Capacity and IP68 Waterproof Rating
SS304 Stainless Steel Hydraulic Rising Bollard with 80T Loading Capacity and IP68 Waterproof Rating
SS304 Stainless Steel Hydraulic Rising Bollard with 80T Loading Capacity and IP68 Waterproof Rating
SS304 Stainless Steel Hydraulic Rising Bollard with 80T Loading Capacity and IP68 Waterproof Rating
SS304 Stainless Steel Hydraulic Rising Bollard with 80T Loading Capacity and IP68 Waterproof Rating
SS304 Stainless Steel Hydraulic Rising Bollard with 80T Loading Capacity and IP68 Waterproof Rating
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HRB01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T, Western Union, , L/C, D/A, D/P
Supply Ability :
1000 pcs a month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Brand :
SINOMATIC
Material :
SS304
Diameter :
168mm, 219mm, 273mm, 324mm
Height :
600mm to 1000mm
Thickness :
6mm to 20mm
Up time :
3s to 6s adjustable
Down time :
3s to 6s adjustable
Min. loading :
80T
Description
SS304 Stainless Steel Hydraulic Rising Bollards
High-performance retractable traffic road safety bollards with automatic hydraulic rising mechanism, designed for superior security and traffic control applications.
Key Specifications
System Control Electric Hydraulic
Material SS304 Stainless Steel
Power Supply 220V
Rising Height 600mm to 1000mm
Bollard Diameter 168mm, 219mm, 273mm, 324mm
Bollard Thickness 6mm to 20mm
LED Light Color Optional
Operation Time 3s to 6s adjustable (up/down)
Minimum Loading Capacity 80T
Detailed Technical Specifications
  • System: Electric-hydraulic system
  • Max passing pressure: 80T to 120T trucks
  • Voltage: AC220V 50Hz Integrated
  • Power: 300W Integrated
  • Up time: 3-6S Adjustable
  • Down time: 3-6S Adjustable
  • Working temperature: -65℃ to 75℃
  • Storage Environment: -10℃ to 65℃ (water-proof, damp-proof, dust-proof)
  • Material: 304 stainless steel
  • Rising height: 600mm standard, maximum 1000mm
  • Bollard Thickness: 6mm standard (8mm, 10mm, 12mm, 20mm optional)
  • Diameter: 219mm Standard (168mm, 273mm, 324mm optional)
  • Structure: Load-bearing steel beam column, anti-collision steel beam column, 4 navigation rods
  • Integrated electrical mechanism: Stroke 600mm, Cylinder outer diameter 60mm, Rod diameter: 16mm
  • 6k Mirror tube construction
  • LED light (optional)
  • Reflective sticker: 2 strips
  • Link-control interface
  • Manual lowering capability during power outages
  • IP rating: IP68
  • Weight: 150±KG Integrated
  • Reversible operation during rising and falling
  • Device running noise ≤60 decibel
  • Waterproof integrated hydraulic device drive
  • Double-sealed hydraulic cylinder for waterproof rating
  • Hydraulic drive with hydraulic lock
  • PLC programming command control system
  • Solenoid valve voltage: 24V
  • Remote control distance: 50M-100M (environment dependent)
  • Control box with adjustable text display (Up, Down, Action, Time control)
  • Bilingual text display: Chinese and English
  • PLC built-in encryption system
  • Water immersion performance: 48 hours without leakage and operational integrity
Emergency Feature: Manual lowering capability during power outages ensures continuous operation and security.
Project Reference
SS304 Stainless Steel Hydraulic Rising Bollard with 80T Loading Capacity and IP68 Waterproof Rating
Manufacturing Facility
SS304 Stainless Steel Hydraulic Rising Bollard with 80T Loading Capacity and IP68 Waterproof Rating
SS304 Stainless Steel Hydraulic Rising Bollard with 80T Loading Capacity and IP68 Waterproof Rating
SS304 Stainless Steel Hydraulic Rising Bollard with 80T Loading Capacity and IP68 Waterproof Rating
About Shenzhen Sinomatic
Located in Shenzhen, China, our 4,700 square meter manufacturing plant features modern production lines, powder coating facilities, R&D departments, and processing centers.
Our products serve diverse applications including transportation roads, schools, government agencies, airports, prisons, , customs, border control, parks, and smart city infrastructure.
We leverage our expertise, manufacturing capabilities, and design capacity to deliver custom solutions with short lead times and exceptional value. Our focus remains on producing durable, resistant products with competitive pricing, extensive customization options, and comprehensive system integration.
With excellent cost-performance ratios, our products are exported globally to Europe, US, East Asia, Russia, and the Middle East. Advanced technology meets international quality standards, with comprehensive design, superior corrosion protection, and competitive pricing earning customer trust worldwide. Our dynamic growth has led to a workforce of over 100 skilled employees.
