24V BLDC Motor 40W DC Speed Gate with 1000mm Channel Width Pedestrian Turnstile
24V BLDC Motor 40W DC Speed Gate with 1000mm Channel Width Pedestrian Turnstile
24V BLDC Motor 40W DC Speed Gate with 1000mm Channel Width Pedestrian Turnstile
24V BLDC Motor 40W DC Speed Gate with 1000mm Channel Width Pedestrian Turnstile
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HSG01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Barrier Material :
Acrylic (color optional)
Packing material :
Plywood box
Normal running life :
＞ 5 million times
Motor :
24V/40W DC motor
Channel width :
500mm to 1000mm
Package :
Plywood
Description
24V BLDC Pedestrian Swing Gate 1000mm Channel 40W TCP Adjustable
Fast response time and high processing capacity 24V BLDC motor 40W high speed gate
Product Overview

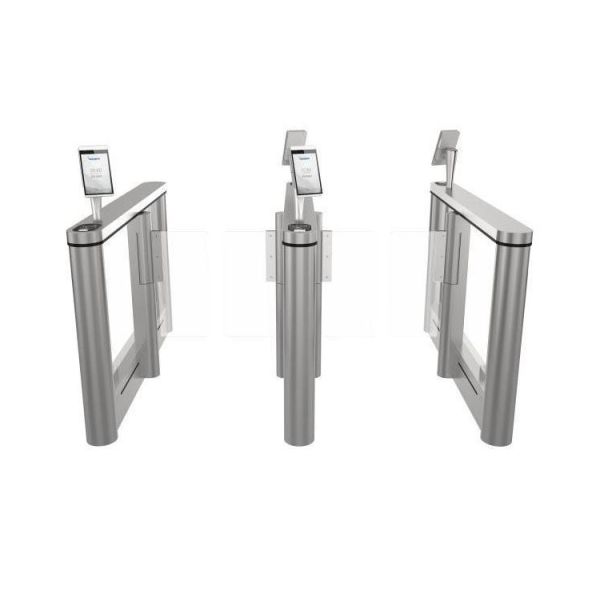

This speed gate turnstile features a high-quality DC brushless/servo motor and advanced control system for precise control, stable performance, and maintenance-free operation. The stainless steel swing turnstile offers innovative design, high quality construction, and fast control for entry and exit management. Compatible with RFID, barcode, fingerprint, or facial verification devices. Data transfer via TCP/IP or RS-485 communication.
Ideal for managing people entry and exit in schools, offices, gyms, residential buildings, supermarkets, and similar facilities.
Technical Specifications
MaterialSS304, Acrylic
FinishingLight wire drawing
Barrier MaterialAcrylic glass
Input VoltageAC100V~240V, DC24V
MCBF5 Million cycles
Traffic Speed30~40 Persons/min
Flap Opening/Closing TimeAdjustable
Maximum Passage Width500-1000mm
Control SignalRelay switch signal/Dry contact signal
Swing Arm Drive Angle180 degree
Communication InterfaceRS485, TCP/IP
Drive MotorDC brushless motor
Running ModeFull-auto
Pass DirectionUni-/Bi-direction pass adjustable
IP GradeIP65
DimensionL1200*W180*H1000mm
Operating Humidity≤90%
Operating Temperature-40℃~+70℃
Working EnvironmentIndoor and outdoor (with shelter)
Optional & Customized Functions
  • Alternative materials, finishes and custom design options
  • LED counter function
  • Audio and visual alarm for invalid entry, exit and tailgating
  • Remote controlled button
  • Additional sensor transmitters and receivers
  • Infrared sensors reset function
  • Access control system integration
  • Camera system integration
  • Thermostat system integration
  • Flexible card reader mounting options
  • Stroboscopic alarm light prompt function for fast failure identification
24V BLDC Motor 40W DC Speed Gate with 1000mm Channel Width Pedestrian Turnstile
Main Functions & Features
  • DC brushless motor supporting at least 5 million normal passages
  • Multiple infrared detection sensors with anti-tailing tracking control technology
  • Integrated voice module with customizable broadcast content
  • LED indicators for traffic direction and status display
  • Anti-shock function with automatic door wing locking during intrusion
  • Self-test, self-diagnosis, and automatic alarm functions
  • Automatic reset function with configurable transit time
  • Flexible configuration of access status (controlled, free traffic, no traffic)
  • Memory mode for continuous and fast traffic flow
Frequently Asked Questions
What is your product's biggest advantage?
DC Brushless Motor, maintenance-free operation, no attrition, low noise, high intelligence.
What is your flap gate's opening and closing time?
≤ 0.4 seconds.
What is the swing barrier gate working environment?
Suitable for both indoor and outdoor use (with shelter).
Can I customize the gate?
Yes, we welcome OEM customization as we are the manufacturer.
What is your warranty?
1 year warranty period.
