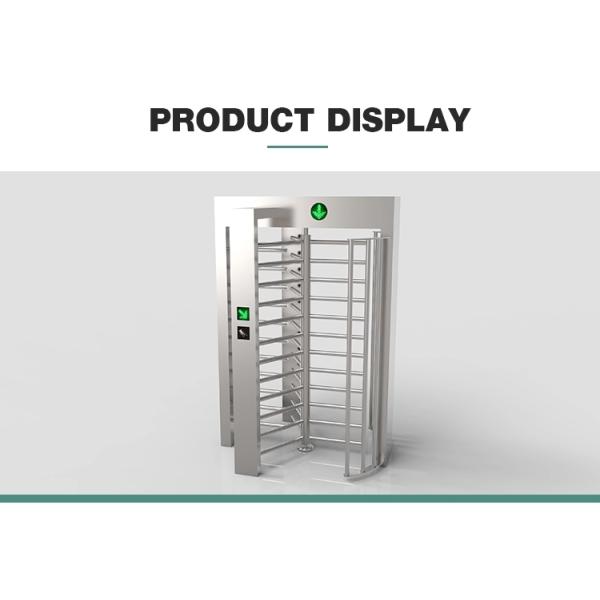

Single Entrance Full Height Turnstile Mechanism For Railway Station
Single Entrance Full Height Turnstile Mechanism For Railway Station
Single Entrance Full Height Turnstile Mechanism For Railway Station
Single Entrance Full Height Turnstile Mechanism For Railway Station
Single Entrance Full Height Turnstile Mechanism For Railway Station
Single Entrance Full Height Turnstile Mechanism For Railway Station
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FH01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
3,00pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
IP :
54
Passage clearance :
About 600mm
Control voltage :
DC24V
Application :
indoor/outdoor
Control device :
RFID reader, fingerprint, face, password
Direction :
Bi-directional
Description
Single Entrance Full Height Turnstile Mechanism For Railway Station
Full Height Single Entrance Mechanism Full Size Turnstile For Railway Station
Single Entrance Full Height Turnstile Mechanism For Railway Station
INTRODUCTION
High security entrances for indoor and outdoor applications. Full height turnstiles, often called turnstile doors for their tall design, are a rugged, low-maintenance solution for the harshest outdoor conditions, acting as a deterrent against tailgating and unauthorized entry at your fence line. Initially utilized for outdoor access control, we SINOMATIC have continuously developed our full height turnstiles to fit the needs of the environment, whether that be for interior or exterior unmanned monitoring.
Key Benefits of Full Height Turnstiles
  • Serves as a visual deterrent against possible infiltration
  • Assists guard force in managing the flow of employees and guests into a building
  • Creates a visual and psychological balance between being welcome and secure
  • Ability to control the number and direction of people passing through the entrance
  • Works in tandem with visitor management software for a digital record of all guests inside buildings
  • Integration possible with virtually any access solution
  • Robust and long-lasting construction
MAIN FUNCTION AND FEATURES
  • Rainproof housing, anti-corrosion coating iron, 304 or 316 stainless steel
  • Mechanical drive unit with solenoid locking mechanism eliminates the use of expensive electric motors and reduces maintenance costs
  • Automatic rotation: if arm rotated more than half, it auto-rotates to next idle position; if less than half, it auto-rotates back to current idle position
  • Built-in adjustable tensioner to control rotation force, minimizing over rotation. Arm requires light push for operation, suitable for elderly and children
  • Configurable as bi-directional or uni-directional. Housing locked with special key to prevent tampering
  • Innovative mounting surface ensures simple and convenient installation for system integrators
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint readers (access controller required)
  • Automatic reset function cancels user authority if passage not completed within prescribed time (default 5 seconds)
  • Equipped with automatic regulated hydraulic buffer device for quiet, impact-free operation
TECHNICAL SPECIFICATIONS
Description Parameters
Lane Width About 600mm
IP Rating IP54
Pass Speed 30-40 persons/min
Power Supply AC220V/110V, 50/60Hz
Drive Mode Solenoid control
Max Power Consumption 100W
Opening Time 0.6S
Humidity ≤90% coagulation free
Noise ≤50dB
Service Life More than 10,000,000 cycles
Outside Packing To be clarified
Working Environment -20°C~+60°C
Gross Weight 236KGS
