Stainless Steel Dual Lane Full High Turnstile Semi Auto Security Access Control
Stainless Steel Dual Lane Full High Turnstile Semi Auto Security Access Control
Stainless Steel Dual Lane Full High Turnstile Semi Auto Security Access Control
Stainless Steel Dual Lane Full High Turnstile Semi Auto Security Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FHT-M20
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T, Western Union,
Supply Ability :
200 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Power supply input :
AC100V~ 240V; 50Hz/60Hz
Transit speed :
30~35 person/min per lane
Power voltage :
DC 24V / 50W
Response Time :
less than 0.2s
Working environment :
Indoor / Outdoor
IP Rating :
54
Description
Stainless Steel Dual Lane Full High Turnstile Semi Auto Security Access Control

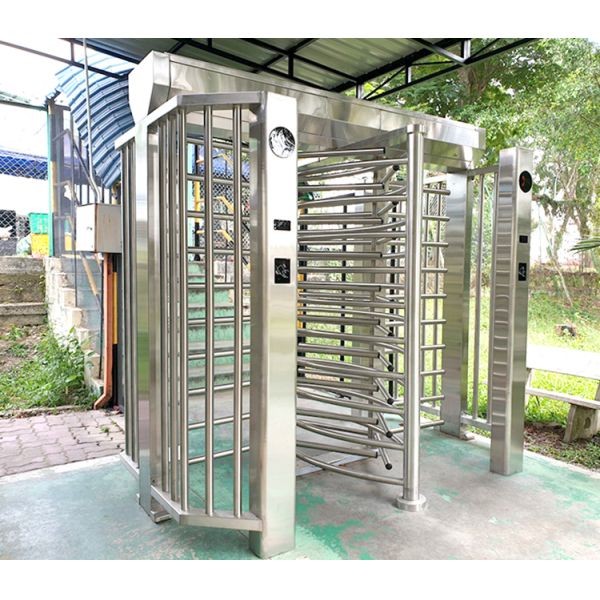

SN-FHT-M20 Dual Lane Full Height Turnstile
The SN-FHT-M20 semi-automatic dual full height turnstile is a robust pedestrian security gate designed for building entrances. When integrated with an access control reader, it effectively restricts unauthorized access. The tall cage design prevents climbing over or crawling under, making it the most secure pedestrian gate in our product line.
Space-Saving Dual Lane Design
The SN-FHT-M20 dual lane configuration saves valuable space compared to installing two separate SN-FHT-M10 full height turnstiles, providing efficient access control in compact areas.
Security Features & Benefits
Advanced Anti-Reverse Protection
Our SINOMATIC SLAR (single-level anti-reverse) lock design prevents security loopholes where intruders could reverse rotation after a valid entry, eliminating unlimited unauthorized access attempts.
Enhanced Durability
The integrated heavy-duty shock absorber reduces impact and vibration during operation, minimizing mechanical wear and lowering long-term maintenance costs.
Emergency Safety Compliance
During power failures, the turnstile can be manually unlocked for free arm rotation, ensuring fast evacuation while maintaining security during normal operation.
Cost-Effective Transportation
The tripod arm is split into three separate pieces for compact shipping, significantly reducing transportation costs while maintaining easy on-site assembly.
Technical Specifications
Parameter Specification
Power Supply Input AC100V~240V; 50Hz/60Hz
Power Voltage DC 24V / 50W
Open Signal Passive signals (relay signals, dry contact signals)
Passage Width ≤650mm
Response Time ≤0.2s
Optimal Pass Speed 30-35 person/min
Housing / Arm Material 304 Stainless Steel
Arm Rotation Angle 90/120 degree
Working Environment Indoor and outdoor
Working Temperature -20°C to +70°C
IP Rating IP54
Housing Dimension 2400mm (W) x 1580mm (L) x 2300mm (H)
Operations Time ≥10 million times
Stainless Steel Dual Lane Full High Turnstile Semi Auto Security Access Control
Detailed Functions & Features
  • 304 stainless steel housing with customizable appearance options
  • Clear access direction indicators with intuitive LED traffic lights showing pass/closed status
  • Unique drive system ensuring accurate and reliable zero lock/unlock operation
  • Gentle push operation after valid card reading for smooth pedestrian flow
  • 90/120 degree rotation per cycle for controlled access
  • Automatic reset function with configurable timeout for unused access privileges
  • Standardized interfaces compatible with various reading and writing equipment for easy system integration
  • Power-off free access mode with automatic locking restoration when power returns
  • Optional card reading with or without memory function, configurable via turnstile mainboard
