Robust Fully Welded Full Height Turnstile Gate Vandal Proof Security One Lane Type
Robust Fully Welded Full Height Turnstile Gate Vandal Proof Security One Lane Type
Robust Fully Welded Full Height Turnstile Gate Vandal Proof Security One Lane Type
Robust Fully Welded Full Height Turnstile Gate Vandal Proof Security One Lane Type
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FH01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
3,00pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Rotor section :
3 sections /4 sections
Rotor arm diameter :
38mm
Housing material :
304/316 Stainless steel/mild steel optional
Passage :
About 600mm (can be customized)
Control device :
Solenoid
Control signal :
12V level signal/ relay signal
Description
Robust Fully Welded Full Height Turnstile Gate
Vandal-Proof Security Solution
Tis is a one-lane full height turnstile gate designed for maximum security and durability. Ideal for stadiums, factories, parks, and premises with high security requirements, this turnstile features a robust fully welded construction that ensures long-term reliability.
Product Overview
This high-reliability, high-rise revolving door is designed for outdoor use with waterproof construction and sectional installation for easy maintenance. The standard electromechanical device prevents double pass simultaneously, while the hydraulic shock absorber ensures smooth, quiet operation.
The product frame utilizes stainless steel laser cutting and CNC bending for an attractive appearance, with standard quick plugging/unplugging electronic interfaces that integrate seamlessly with various reading devices for ID cards, IC cards, and more.
Technical Specifications
Size 1500×1343×2300mm (customizable)
Material 1.2mm 304 stainless steel (other materials optional)
Passage Width Approximately 600mm (customizable)
Passage Direction Single directional/Bi-directional
Pass Rate 30-35 persons/minute
Operating Time 1 second
Power Input AC100V~240V, 50/60HZ; DC24V
Working Voltage 24V
Working Humidity 30%~95%
Working Temperature -40℃~+70℃
Working Environment Indoor/Outdoor
Communication Interface Dry contact
Service Life >5 million cycles
Key Features & Functions
  • Rainproof housing with anti-corrosion coating and 304/316 stainless steel construction
  • Mechanical drive unit with solenoid locking mechanism reduces maintenance costs
  • Automatic rotation to next idle position or back to current position based on arm movement
  • Adjustable tensioner for controlled rotation force - easy operation for all users
  • Configurable bi-directional or uni-directional operation
  • Secure housing locked with special key to prevent tampering
  • Innovative mounting surface for simple installation

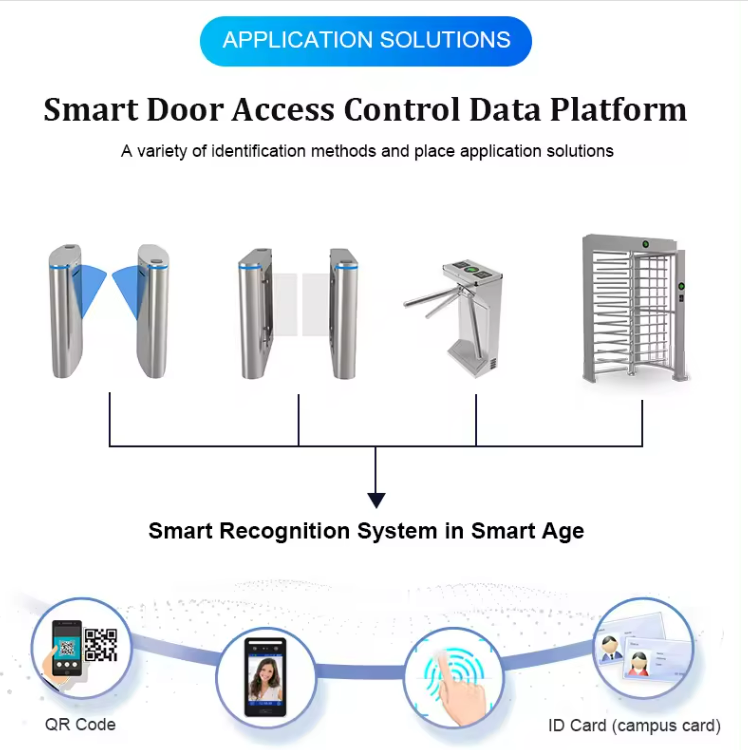

  • Compatible with various access control devices (IC/ID card readers, barcode scanners, fingerprint readers)
  • Automatic reset function cancels user authority after preset time (default 5 seconds)
  • Hydraulic buffer device ensures quiet, impact-free operation
