Motorized Automatic Revolving Full Height Turnstile Gate Glass Security Turnstiles
Motorized Automatic Revolving Full Height Turnstile Gate Glass Security Turnstiles
Motorized Automatic Revolving Full Height Turnstile Gate Glass Security Turnstiles
Motorized Automatic Revolving Full Height Turnstile Gate Glass Security Turnstiles
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FH01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
1,00 pcs per month
Delivery Time :
10 to 15 days after payment received
Packaging Details :
Plywood box/Pallet
Power supply :
AC100~240V, DC24V
Direction :
Single or Bi-directional
MTBF :
More than 10 million times
Working Temperature :
-25℃-75℃
Passing speed :
35 to 50 person/minute
Packing :
Plywood box
Description

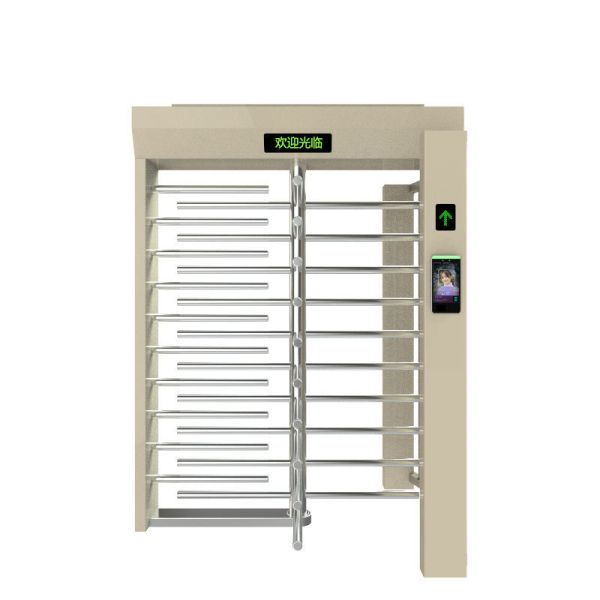

Motorized Automatic Revolving Full Height Turnstile Gate Glass Security Turnstiles
Product Overview
This is a 90-degree or 120 degree rotating full height turnstile with canopy featuring our latest servo motor control system for bi-directional access control. This motorized system provides enhanced fail-safe features (fail-secure optional) for reliable security operations.
Key Features
  • Prevents unauthorized access
  • Ensures one passage at a time
  • Powerful drive unit with high-quality industrial motor
  • Flow rate: 20-35 passages per minute
  • Available for double door configurations
  • Full body security protection
  • Stainless steel top channel cover included
  • High-quality sealed and covered bearings
  • Advanced controller with surge protection and weatherization
  • Suitable for outdoor environments
  • Multiple options and finishes available
Advanced Functionality
Anti-Crash Protection
Unlike traditional turnstiles, our system features anti-crash and anti-panic technology. When unauthorized passage is attempted, the arm automatically locks at a specific angle to prevent damage and then returns to the correct position.
Maintenance-Free Operation
The DC servo motor eliminates the need for carbon brush replacement required by brush motors. Galvanized and stainless steel components provide anti-rust protection for long-term durability.
24/7 Continuous Operation
With a smooth and quiet motorized drive mechanism, this turnstile supports continuous 24-hour, 7-day operation without interruption.
Adjustable Speed Control
The passing speed (arm rotation) can be customized according to site requirements. For high-traffic locations, the speed can be increased for optimal flow management.
Easy Integration
Compatible with access readers or push buttons via simple dry contact signals. Features automatic closing with adjustable delay timer (3-60 seconds).
User-Friendly Design
Motorized rotor provides comfortable passage while maintaining high-level crowd control and pedestrian flow management.
Emergency Operation
Control board includes emergency interface for emergency signal input. Turnstile remains open during emergency signal activation.
Auto-Recovery System
Rotor provides free passage during power loss or emergency situations (default two-way free passage). Automatically returns to normal operation when power is restored or emergency signal ends.
Technical Specifications
Description Parameters
Power Input AC100~240V, 50/60Hz, DC24V
Motor/Rated Power DC Servo Motor, 60W/24V
Housing Material #304 Stainless Steel, 1.5mm
Passing Speed 35-50 persons/min, adjustable
Input Signals 100ms < Pulse < 3s
Working Temperature -25℃ to 75℃
Communication Signal RS485 or Dry contact
MTBF More than 10 million cycles
Relative Humidity <95%
Product Images
Motorized Automatic Revolving Full Height Turnstile Gate Glass Security Turnstiles Motorized Automatic Revolving Full Height Turnstile Gate Glass Security Turnstiles
