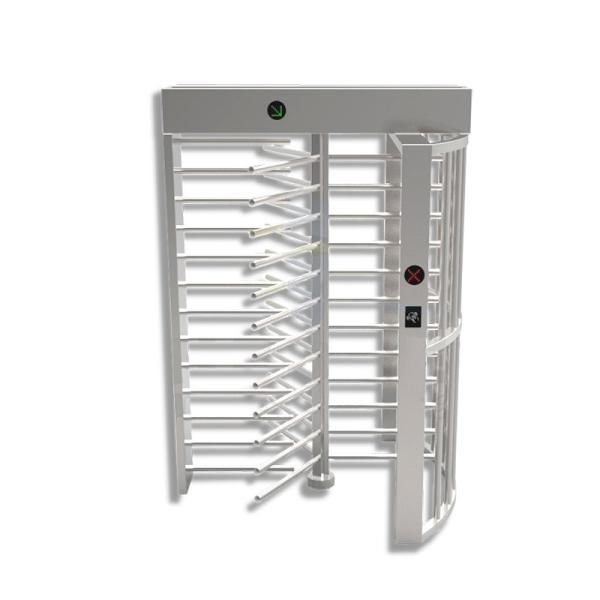

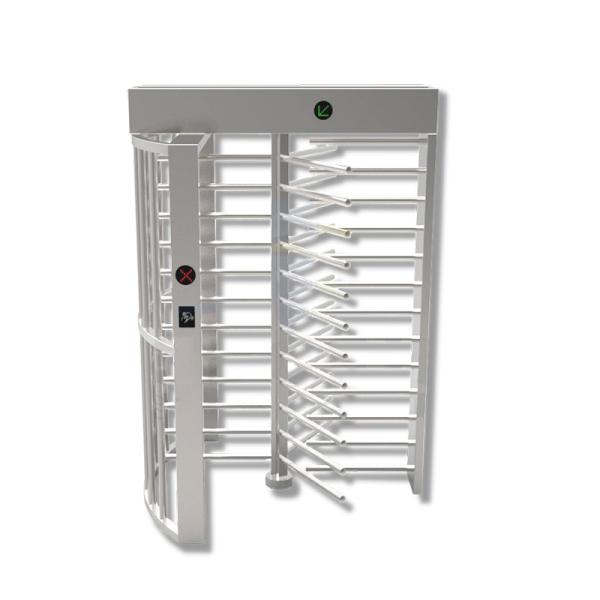

DC Servo Motor Mechanism full Automatic Entrance Control System SS304 Full Height Turnstile
DC Servo Motor Mechanism full Automatic Entrance Control System SS304 Full Height Turnstile
DC Servo Motor Mechanism full Automatic Entrance Control System SS304 Full Height Turnstile
DC Servo Motor Mechanism full Automatic Entrance Control System SS304 Full Height Turnstile
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FH-SV1
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
1,00 pcs per month
Delivery Time :
10 to 15 days after payment received
Packaging Details :
Plywood box/Pallet
Motor :
DC 24V Servo Motor
Direction :
BI-directinal
Power failure :
fail secure(optional)
Communication :
RS485 or Dry contact
MTBF :
More than 10 million times
Description
DC Servo Motor Mechanism Full Automatic Entrance Control System SS304 Full Height Turnstile
The SN-FH-SV1 is a servo motorized full height turnstile designed for bi-directional access control with enhanced fail-safe features. When an input signal is received, the motor facilitates easy passage without requiring manual pushing of the arm, ensuring convenient access.
In emergency situations or during power outages, the passageway automatically enters free pass mode for unrestricted exit. When power is restored or emergency signals are suspended, the arms return to their normal operating position automatically. The motorized arms provide comfortable passage while maintaining effective crowd control and pedestrian flow management.
Designed for 100% duty cycle applications and intensive pedestrian movement areas, this turnstile serves as an indoor or outdoor solution for game parks, bus stations, train stations, stadiums, large factories, and any site with high traffic flow.
Technical Specifications
Description Parameters
Power input AC100~240V, 50/60Hz, DC24V
Motor/Rate Power DC Servo Motor, 60W/24V
Housing material #304 Stainless steel, 1.5mm
Passing Speed 35-50 person/min, adjustable
Input signals 100ms
Temperature -25℃-75℃
Communication RS485 or Dry contact
MTBF More than 10 million times
Relative Humidity <95%
Main Functions and Features
Anti-Crash Protection
Unlike traditional turnstiles, our system features anti-crash and anti-panic functionality. When unauthorized passage is attempted, the arm automatically locks at a specific angle to prevent forced entry and then returns to the correct position automatically.
Maintenance-Free Operation
The DC Servo motor eliminates the need for carbon brush replacement required by brush motors. Galvanized and stainless steel components provide anti-rust protection for long-term durability.
24/7 Continuous Operation
Featuring a smooth and quiet motorized drive mechanism, this turnstile supports 24 hours/7 days continuous operation.
Adjustable Speed
This full height turnstile allows customizable passing (arm rotating) speed settings. For high-traffic locations, the speed can be adjusted for faster throughput.
Easy Integration
Compatible with access readers or push buttons via simple dry contact signals. After the delay timer elapses (configurable from 3-60 seconds), the turnstile closes automatically.
User-Friendly Design
Motorized rotor provides comfortable passage while maintaining superior crowd control and pedestrian flow management.
Emergency Operation
The control board includes an emergency interface for emergency signals. The turnstile opens when emergency signals are active.
Auto-Recovery System
The rotor becomes free for two-way passage during power loss or emergency situations. When power is restored or emergency signals are suspended, the rotor automatically returns to normal operating position.
Full Height Turnstile Machine Core
DC Servo Motor Mechanism full Automatic Entrance Control System SS304 Full Height Turnstile
