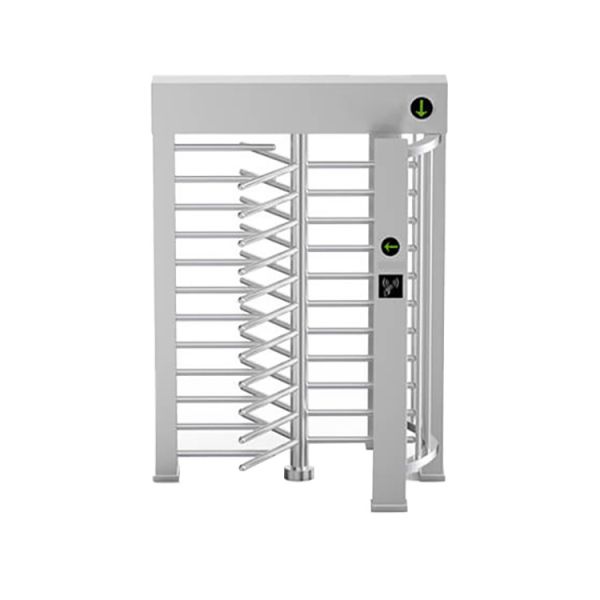

Pedestrian Access Control Semi Automatic Revolving Full Height Turnstile
Pedestrian Access Control Semi Automatic Revolving Full Height Turnstile
Pedestrian Access Control Semi Automatic Revolving Full Height Turnstile
Pedestrian Access Control Semi Automatic Revolving Full Height Turnstile
Pedestrian Access Control Semi Automatic Revolving Full Height Turnstile
Pedestrian Access Control Semi Automatic Revolving Full Height Turnstile
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FH01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
3,00pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Arm lenght :
About 550mm
Control circuit :
DC24
Housing material :
Stainless steel/mild steel
Passage :
About 600mm
IP rate :
IP54
OEM/ODM :
Support
Description
Pedestrian Access Control Semi Automatic Revolving Full Height Turnstile
Pedestrian Revolving Access Control System
The semi-automatic full height rotor turnstile provides secure, unsupervised access control for offices and buildings. Its impenetrable construction eliminates unauthorized access to restricted areas.
Access Control Operation
To gain authorized passage, users must present a valid card to the access control system. Upon validation, the turnstile unlocks and permits passage in the requested direction. Compatible with push button, fingerprint, and face recognition systems.
Pedestrian Access Control Semi Automatic Revolving Full Height Turnstile
Key Features & Functions
  • Stable, quiet operation without mechanical impact
  • Configurable person count settings
  • Multiple operating modes to suit various requirements
  • Bidirectional or unidirectional access control
  • Self-check and alarm system for operational convenience
  • Direction-guide lights for clear passage indication
  • Standard electrical interface for various reader equipment
  • Integrated functionality with remote computer management
  • Automatic person counting with optional LED display
  • Optional card-reading memory functionality
Technical Specifications
Size 2300×1450×2300mm
Material 1.2mm SUS304 Stainless Steel
Passage Width Approximately 600mm (customizable)
Passage Direction Single directional/Bi-directional
Pass Rate 30-35 persons/minute
Operating Time 1 second
Power Input AC100-240V, 50/60HZ
Working Voltage 24V
Working Humidity 30%~95%
Working Temperature -40℃ to +70℃
Working Environment Indoor/outdoor
Communication Interface Dry contact
Service Life ＞5 million cycles
Frequently Asked Questions
Are you a manufacturer or trader?
We are manufacturers with our own factory in Shenzhen. Our integrated team handles purchasing, production, processing, testing, packaging, storage, and transportation.
Do you sell accessories for products?
Yes, we provide compatible parts for our testing equipment. For damage caused by natural disasters, we supply replacement parts at competitive prices.
How about product packaging?
Light structure products use carton boxes, while heavy products like full height turnstiles are packed in standard export plywood cases for secure transportation.
Where is your main sales market?
Our customers are worldwide, primarily in Southeast Asia, South America, Middle East, Eastern Europe, and Africa.
What is your after-sales policy?
Customer first is our principle. All products carry a standard 12-month warranty.
Do you accept customer logos and customization?
We accept various customizations and customer logos for all our products.
