DC24V Full Height Turnstile LED Indicator SS304 / SS316 / Mild Steel Housing
DC24V Full Height Turnstile LED Indicator SS304 / SS316 / Mild Steel Housing
DC24V Full Height Turnstile LED Indicator SS304 / SS316 / Mild Steel Housing
DC24V Full Height Turnstile LED Indicator SS304 / SS316 / Mild Steel Housing
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FH01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
3,00pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Housing material :
SS304/SS316/mild steel with painting
Passage :
About 600mm
Control voltage :
DC24V
Package :
Plywood box
Control device :
RFID reader, fingerprint, face, password
Indicator :
LED
Description

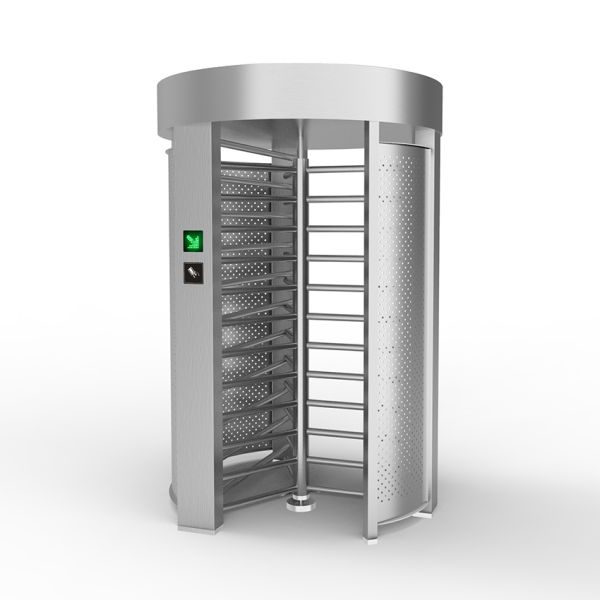

DC24V Full Height Turnstile LED Indicator
Available in SS304, SS316, or Mild Steel Housing for superior durability and corrosion resistance.
High Security 120° Semi-Automatic Full Height Turnstile
This advanced access control system provides high-level security management for passageways. Constructed with premium stainless steel and featuring a completely waterproof design, it is suitable for both indoor and outdoor installation.
DC24V Full Height Turnstile LED Indicator SS304 / SS316 / Mild Steel Housing
The turnstile operates bidirectionally, allowing passage only after user authorization. In fail-safe mode (default), barriers rotate freely during power outages. Optional fail-secure mode locks barriers when power is interrupted.
Technical Specifications
Structure Parameters
Housing Material 304 Grade Stainless Steel
Thickness 1.5mm
Surface Treatment Brushed Finish
Technical Parameters
Size 1500*1350*2240mm
Lane Width 610mm
Passing Speed 30-40 people/minute
Open/Close Speed 0.2 seconds
Weight 200KG
Turning Angle 120°/90°
MCBF 5,000,000 cycles
Application Indoor or Outdoor
Rotating Direction Single Way or Bi-directional Adjustable
Noise Level <55dB
Operating Temperature -25°C to 70°C
Relative Humidity 5% to 95%
Package Plywood Case
Electronic Parameters
Power Supply AC100V-240V, DC24V
Power Consumption 100W
Input Signal Dry Contact
Driving Motor Solenoid
Mainboard Independent Development Mainboard
Key Features & Functions
  • Rainproof housing with anti-corrosion coating available in 304 or 316 stainless steel
  • Mechanical drive unit with solenoid locking mechanism reduces maintenance costs
  • Automatic rotation adjustment: returns to idle position based on rotation angle
  • Adjustable tensioner controls rotation force for easy operation by all users
  • Configurable bidirectional or unidirectional operation with tamper-resistant locking
  • Innovative mounting surface ensures simple and convenient installation
  • Compatible with various access control devices: IC/ID card readers, barcode scanners, fingerprint systems
  • Automatic reset function cancels user authority after preset time (default 5 seconds)
  • Automatic regulated hydraulic buffer device ensures quiet, impact-free operation
