Fast Speed Stainless Steel Swing Turnstile Gate with 5 Million Times Service Life for Access Control
Fast Speed Stainless Steel Swing Turnstile Gate with 5 Million Times Service Life for Access Control
Fast Speed Stainless Steel Swing Turnstile Gate with 5 Million Times Service Life for Access Control
Fast Speed Stainless Steel Swing Turnstile Gate with 5 Million Times Service Life for Access Control
Fast Speed Stainless Steel Swing Turnstile Gate with 5 Million Times Service Life for Access Control
Fast Speed Stainless Steel Swing Turnstile Gate with 5 Million Times Service Life for Access Control
Fast Speed Stainless Steel Swing Turnstile Gate with 5 Million Times Service Life for Access Control
Fast Speed Stainless Steel Swing Turnstile Gate with 5 Million Times Service Life for Access Control
Fast Speed Stainless Steel Swing Turnstile Gate with 5 Million Times Service Life for Access Control
Fast Speed Stainless Steel Swing Turnstile Gate with 5 Million Times Service Life for Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HSG150
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Motor type :
Brushless DC motor
Passage width :
600mm(1000mm optional)
Arm material :
Clear Acrylic/glass
Arm turning degree :
Bi-directional
Service Life :
5 million times
Communication interface :
RS485 , TCP/IP
IP rate :
IP 54
Power Consumption :
140W
Noise :
≤50dB
Material :
304 Stainless Steel
Description
Fast Speed Stainless Steel Swing Turnstile Gate
High-speed lane glass gate with brushed stainless steel construction for access control systems, designed for high pedestrian traffic flow in both directions.
Product Overview
  • Controls pedestrian access to restricted areas with high traffic flow capacity
  • Brushed stainless steel body creates seamless, elegant access points for indoor environments
  • Compatible with various access control systems (RFID, push button, fingerprint, biometric)
  • Emergency automatic opening for free passage during critical situations
  • Ideal for elegant and luxury entrance solutions
Technical Specifications
Power AC220V±10V, 50/60HZ
Operating Temperature -45℃ to 60℃
Relative Humidity ≤95%, No Condensation
Passage Width 600mm (1000mm optional)
Passing Speed Normally open: 50 persons/min; Normally closed: 30 persons/min
Manufacturing Technique CNC laser cutting
Motor DC Brushless motor, 140W/24V
Gate Opening/Closing Time ≤ 0.4S
Barrier Material Acrylic glass, SS304 and more
Working Environment Indoor and outdoor (with rainshed)
Motor Operation Speed 1600R/Min
Communication Distance ≤1200M
Input Connection +12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms
Communication Connection RS485 Communication
Material Stainless steel 304, thickness ≥1.5mm

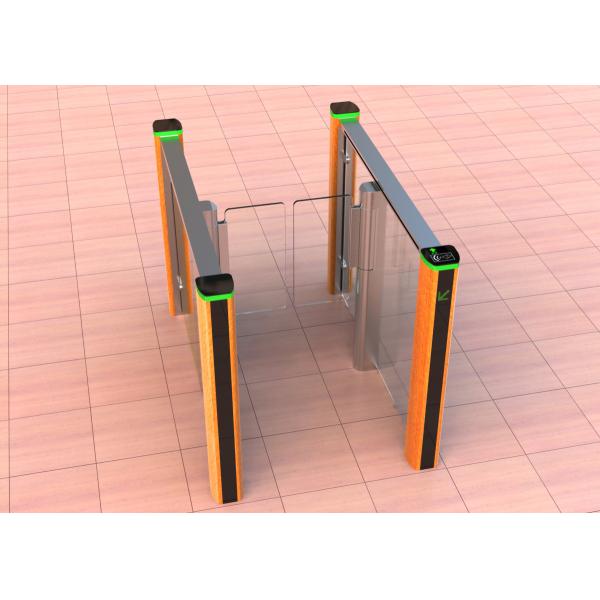

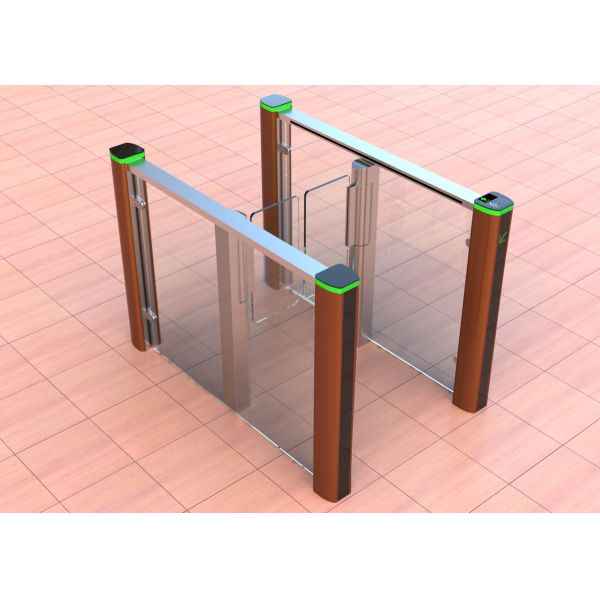

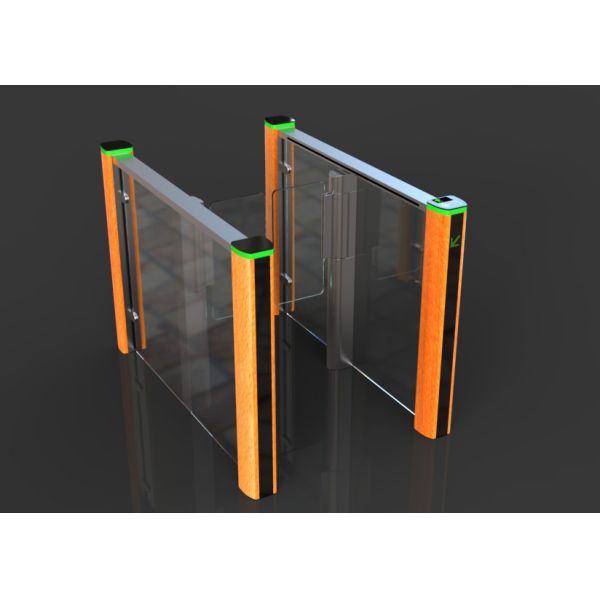

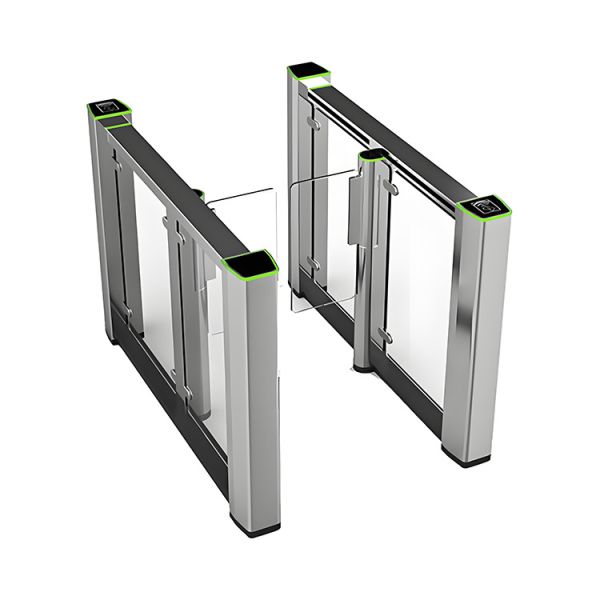

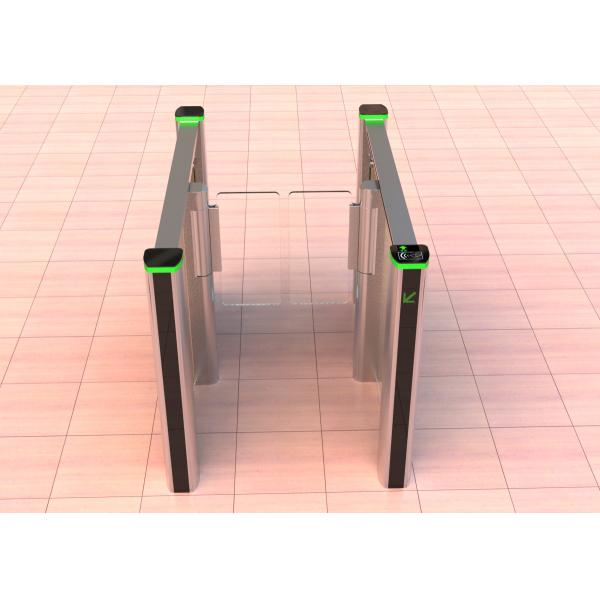

Product Display
Fast Speed Stainless Steel Swing Turnstile Gate with 5 Million Times Service Life for Access Control Fast Speed Stainless Steel Swing Turnstile Gate with 5 Million Times Service Life for Access Control
Product Dimensions
Fast Speed Stainless Steel Swing Turnstile Gate with 5 Million Times Service Life for Access Control
Features and Functions
  • Maintenance-free DC brushless motor with digital positioning technology
  • Mechanical anti-pinch protection; online or offline operation modes
  • Real-time fault self-test and alarm prompts for safe operation
  • Light indication and gate induction automatic lock function
  • Emergency processing mode with standard input/output interfaces
  • Flexible combination capability with various styles and series
  • Powerful system expansion for adding new products
  • Remote control management for user needs and fire safety requirements
  • Comprehensive self-checking function with error reporting
  • Advanced anti-collision protection with automatic reversal
  • Extended service life up to 5 million cycles
Case Reference
Fast Speed Stainless Steel Swing Turnstile Gate with 5 Million Times Service Life for Access Control
Trading Information
Minimum Order Quantity 1 set
Port Shenzhen, Guangzhou etc
Payment Terms T/T / Western Union
Production Capacity 1000 Sets/Month
Lead Time 7 to 10 days
Package Wooden
Frequently Asked Questions
What is your product's biggest advantage?
DC Brushless Motor - maintenance-free for life, no attrition, low noise, high intelligence.
What is your flap gate's opening and closing time?
≤ 0.4 seconds
What is the swing barrier gate working environment?
Suitable for both indoor and outdoor use (with shelter)
Can I customize it?
Yes, we welcome OEM customization as we are the manufacturer.
What's your warranty?
1-year time warranty.
