Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HRB01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,credit card/Cash/wechat
Supply Ability :
1000 pcs a month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Bollard Material :
SS304
Diameter :
219mm(default), 273mm, 324mm
Height :
600mm(default), 800mm 1000mm
Thickness :
6mm(default), 8mm,10mm, 12mm
Up time :
3s to 6s adjustable
Down time :
3s to 6s adjustable
Min. loading :
80T
Weight :
150KG±
Power :
300W Integrated
Working temperature :
-65℃~+75℃
Description
60dB Low Noise Automatic Rising Bollards
304 Stainless Steel 3.7KW System Dynamic Power Automatic Driveway Bollards
Product Overview
Hydraulic automatic bollards integrate oil pump units with steel frame construction, utilizing soil pressure as dynamic force to enable bollard rising and lowering. These moving devices are typically installed at vehicle entrances and exits, rising to block unauthorized vehicles and lowering to ground level to permit authorized passage.
Technical Specifications
System Control Electric Hydraulic Raised Height 600mm (customized available)
Material 304 Stainless Steel or A3 Steel with Painting Bollard Diameter 168, 219, 273 mm
Color Customized Thickness 6 mm (Customized)
Power Supply 380V (control voltage 24V) Weight +180 kg
System Dynamic Power 3.7KW LED Light Extra Charge
Casing Size L500*W500*H900 / L600*W600*H900 Full Set Includes Bollard, Control Box
60dB Low Noise 304 Stainless Steel 3.7KW System Dynamic Power Automatic Rising Bollards for Driveway Security 60dB Low Noise 304 Stainless Steel 3.7KW System Dynamic Power Automatic Rising Bollards for Driveway Security
Functions & Features
  • Anti-collision: Functions normally after impact by 12-ton vehicles
  • Anti-destructive power: Withstands impact from 16-ton vehicles with deformation only
  • Internal structure: Load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods
  • Manual lowering capability during power outages
  • Linkage interface for system integration
  • Reversible operation during ascent and descent
  • Low noise operation: ≤60 dB during device operation
  • Waterproof integrated hydraulic drive system
  • Control solenoid valve: 24V operation
  • Adjustable control box display text (up, down, start, time control adjustment)
  • English language display text
  • Water immersion performance: No leakage during 48 hours with normal lifting
  • Anti-corrosion performance level: 9
60dB Low Noise 304 Stainless Steel 3.7KW System Dynamic Power Automatic Rising Bollards for Driveway Security
Product Details
  • Automatic raise/lower/stop operation with heavy-duty hydraulic power pack and integrated control
  • Easy installation and operation with built-in LED flashing lights and reflective tape for visibility and safety
  • Variable frequency controller with adjustable raise/lower speed (3-6s) and emergency stop capability
  • Quick and reliable electric transmission control signals
  • Thickened seamless 304 stainless steel foundation plate with 40+ ton bearing capacity
  • Rust protection and distortion resistance
  • Built-in relief valve for manual lowering during power failures
  • High-quality powerful motor for fast, stable, and durable operation (1500 cycles per day)
  • Motor disassembly capability for easy maintenance
  • Multiple security protection including high-pressure air vent sealing and electricity leakage protector

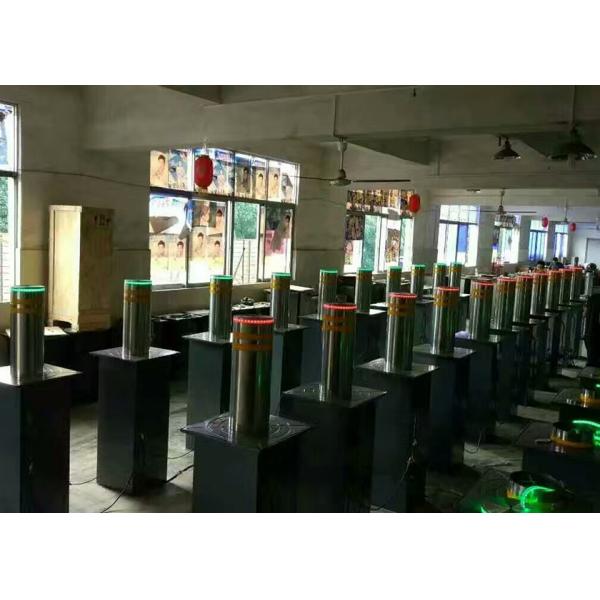

Case Reference
60dB Low Noise 304 Stainless Steel 3.7KW System Dynamic Power Automatic Rising Bollards for Driveway Security

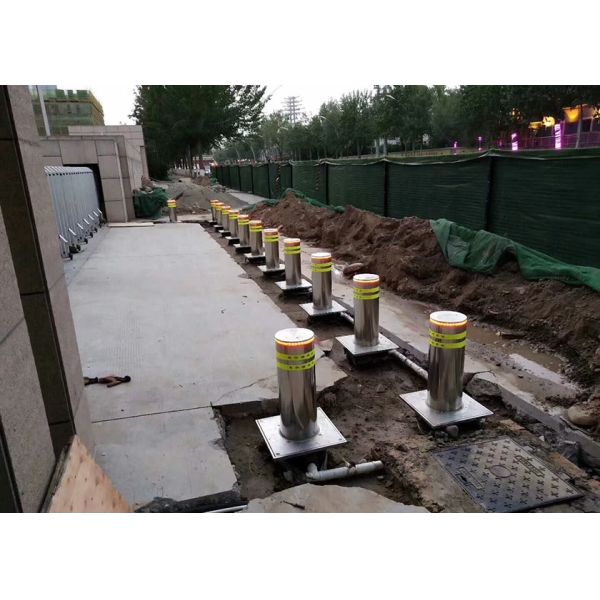

Installation
60dB Low Noise 304 Stainless Steel 3.7KW System Dynamic Power Automatic Rising Bollards for Driveway Security 60dB Low Noise 304 Stainless Steel 3.7KW System Dynamic Power Automatic Rising Bollards for Driveway Security
Applications
  • Scientific and educational units: schools, computer rooms, research centers, libraries
  • Leisure and entertainment venues: parks, scenic spots, pedestrian streets, municipal squares, playgrounds
  • Transportation facilities: bus stations, railway stations, subway stations, airports
  • Business service places: hospitals, banks, hotels, clubs, commercial buildings
  • Office spaces: large office buildings, public inspection units, hydro power and oil and gas facilities
