Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction
Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction
Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction
Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction
Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction
Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction
Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction
Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction
Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction
Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HRB01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,credit card/Cash/wechat
Supply Ability :
1000 pcs a month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Material :
SS304
Diameter :
219mm, 273mm, 324mm
Height :
600mm, 800mm 1000mm
Thickness :
6mm, 8mm,10mm, 12mm
Up time :
3s to 6s adjustable
Down time :
3s to 6s adjustable
Min. loading :
80T
Weight :
150KG±
Power :
300W Integrated
Working temperature :
-65℃~+75℃
Description
Automatic Hydraulic Road Bollards with Electronic Remote Control
3s to 6s speed adjustable automatic hydraulic road bollards with electronic remote control provide reliable vehicle access control for various security applications.
Product Description
Hydraulic automatic bollards integrate oil pump units with steel frame construction, utilizing soil pressure as dynamic force to control bollard rising and falling. These moving devices are typically installed at vehicle entrances and exits, rising to block unauthorized vehicles and lowering to ground level to authorize free passage.
Product Parameters
System Control Electric Hydraulic Raised Height 600mm (customized available)
Material 304 Stainless Steel or A3 Steel with Painting Bollard Diameter 168, 219, 273 mm
Color Customized Thickness 6 mm (Customized)
Power Supply 380V (control voltage 24V) Weight +180 kg
System Dynamic Power 3.7Kw LED Light Extra Charge
Casing Size L500 * W500 * H900 / L600 * W600 * H900 Full Set Includes Bollard, Control Box
Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction
Functions & Features
  • Anti-collision: Functions normally after impact by 12-ton vehicles
  • Anti-destructive power: Withstands impacts from 16-ton vehicles with deformation
  • Internal structure: Features load-bearing steel beam and column, anti-collision steel beam column, and 4 navigation rods
  • Manual lowering capability during power outages
  • Linkage interface for system integration
  • Reversible operation during ascent and descent
  • Low noise operation: ≤60 dB during device operation
  • Waterproof integrated hydraulic drive system
  • Control solenoid valve: 24V operation
  • Adjustable control box display text (up, down, start, time control adjustment)
  • English language display text
  • Water immersion performance: No leakage during 48 hours with normal lifting
  • Anti-corrosion performance level: 9 rating
Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction
Product Details
  • Automatic raise/lower/stop operation with heavy duty hydraulic power pack and integrated control
  • Easy installation and operation with built-in LED flashing lights and reflective tape for visibility and safety
  • Variable frequency controller with adjustable 3-6s raise/lower speed and emergency stop capability
  • Quick and reliable electric transmission control signals
  • Firm foundation plate: Thicken seamless 304 stainless steel with strong bearing capacity exceeding 40 tons
  • Rust protection and distortion resistance
  • Built-in valve for manual lowering during power failures or emergencies
  • High quality motor enables speedy operation, stable performance, and durability with 1500 cycles per day
  • Motor designed for easy disassembly and maintenance
  • Multiple security protection: High pressure air vent sealing with electricity leakage protector

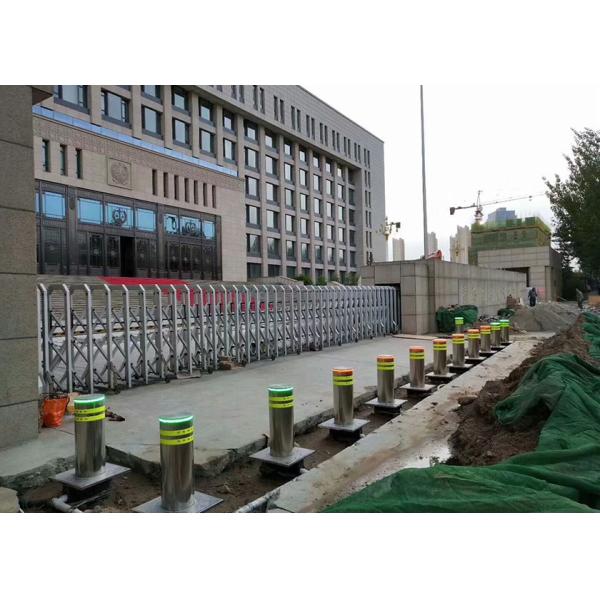

Case Reference
Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction
Installation
Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction Automatic Hydraulic Bollard with 3s-6s Speed Adjustable Electronic Remote Control and SS304 Stainless Steel Construction
Applications
  • Scientific and Educational Units: Schools, computer rooms, research centers, libraries
  • Leisure and Entertainment Venues: Parks, scenic spots, pedestrian streets, municipal squares, playgrounds
  • Transportation Facilities: Bus stations, railway stations, subway stations, airports
  • Business Service Places: Hospitals, banks, hotels, clubs, commercial buildings
  • Office Spaces: Large office buildings, public inspection units, hydro power and oil and gas facilities
