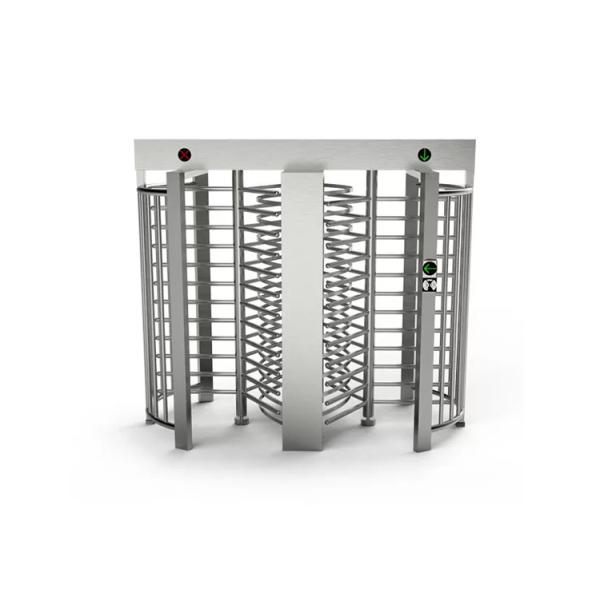

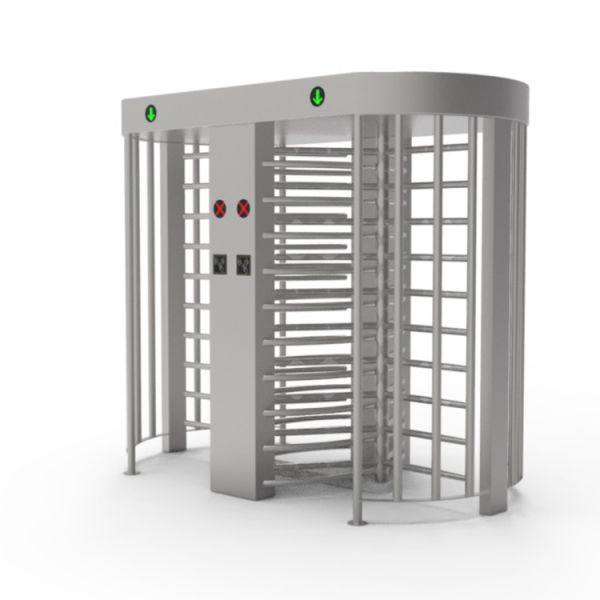

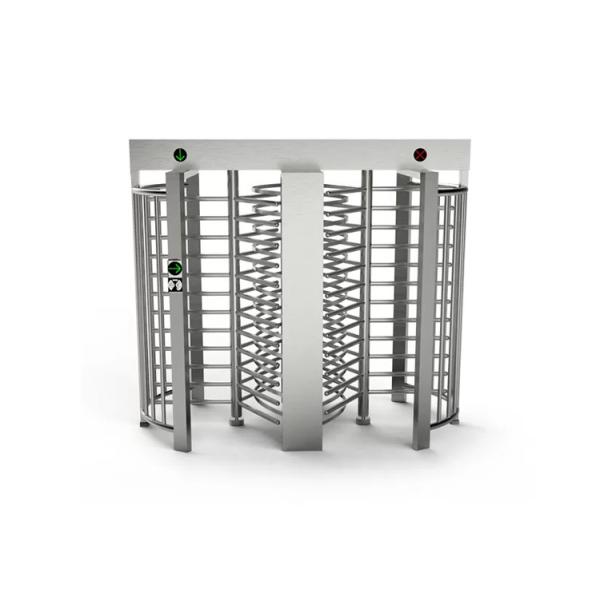

SS304 Stainless Steel Full Height Turnstile with 0.2S Response Time and Double Way Passage for Pedestrian Access Control
SS304 Stainless Steel Full Height Turnstile with 0.2S Response Time and Double Way Passage for Pedestrian Access Control
SS304 Stainless Steel Full Height Turnstile with 0.2S Response Time and Double Way Passage for Pedestrian Access Control
SS304 Stainless Steel Full Height Turnstile with 0.2S Response Time and Double Way Passage for Pedestrian Access Control
SS304 Stainless Steel Full Height Turnstile with 0.2S Response Time and Double Way Passage for Pedestrian Access Control
SS304 Stainless Steel Full Height Turnstile with 0.2S Response Time and Double Way Passage for Pedestrian Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FH02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
3,00pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Power supply :
AC220V/110V And 50/60Hz
Net weight :
350
Passage Width :
About 600mm
Frame dimension :
2300x1370x2300mm
Working Environment :
Indoor / Outdoor
Operation Humidity :
0 ~ 95% (No freeze)
Description
Pedestrian Overhead AC220V SS304 Double Way Barrier Gate 0.2S
SS304/316 Stainless Steel Fingerprint Access Pedestrian Overhead Double Way Barrier Gate
Product Introduction
This full-height turnstile is compatible with IC card, ID card, barcode card, and fingerprint reading card recognition devices for staff access management. It provides civilized and orderly access methods while effectively managing personnel entry and exit. Suitable for high-security environments including prisons, stadiums, parking system areas, and other secure facilities.
Supports RFID, fingerprint, and facial verification modes. When combined with infrared detectors and temperature controllers, it can be adapted for various environmental conditions.
Restricts passage to authorized personnel only through ticket insertion, ID card scanning, or access card verification. Ideal for paid access applications in public transport systems or access control in corporate buildings and facility entrances. Applications include stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection, and lobby access management.
Constructed from superior quality stainless steel material for durability and reliability.
Features of Sinomatic Full Height Turnstile
  • Stable and reliable mechanical locking device with precise movement and turntable combination structure using special processes
  • Two-way traffic functionality with steering lever divided into two directions and one direction options
  • Power-off opening function for emergency situations - cross-door shaft switches from locked to free-pass mode for quick pedestrian passage, meeting fire-fighting channel requirements
  • Automatic cancellation of access rights if pedestrian doesn't pass within specified system time after valid card reading
  • Bidirectional arrow indicators display traffic status for pass or prohibit passage guidance
  • External bidirectional flow counter connectivity to display traffic direction people count
  • Smooth system operation with low noise levels
  • Anti-reverse device prevents rotating unit from moving opposite to original direction
  • Unified standard external electrical interface compatible with various card readers and remote management through computer systems
Product Parameters
Basic Parameters
Dimensions 2300*1370*2300mm
Cabinet Material 38 round tube, 1.2mm Mild steel or SS304/316
Channel Width 600mm
Ambient Temperature -20°C to 60°C
Working Environment Indoor and outdoor (outdoor canopy)
Technical Parameters
Input Voltage 100V~240V
Driving Voltage 24V
Equipment Power 40W
Response Time 0.2S
Passing Speed 30 people/minute
Communication Interface RS485
Communication Distance Less than 1200m
Open Brake Signal Input Dry contact
Switching Door Time Less than 1S
Product Photos
SS304 Stainless Steel Full Height Turnstile with 0.2S Response Time and Double Way Passage for Pedestrian Access Control SS304 Stainless Steel Full Height Turnstile with 0.2S Response Time and Double Way Passage for Pedestrian Access Control
Principle of Operation
In the CLOSE position, the electromagnetic locking device prevents the rotor gear from rotating, keeping the turnstile secured and preventing unauthorized access.
Upon receiving command signal authorizing access:
  • The locking device releases the rotor gear
  • Pedestrian pushes the rotor to gain access
  • The rotor moves by 120°
  • The turnstile locks at close position after pedestrian has passed
