24VDC 30person/Min 610mm Width Full Height Turnstile Full Body Turnstile for Secure Access Control
24VDC 30person/Min 610mm Width Full Height Turnstile Full Body Turnstile for Secure Access Control
24VDC 30person/Min 610mm Width Full Height Turnstile Full Body Turnstile for Secure Access Control
24VDC 30person/Min 610mm Width Full Height Turnstile Full Body Turnstile for Secure Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FH01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
3,00pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Communication :
Dry contact, Relay signal
Emergency :
Automatic arm open when power off
LED Indicator :
Yes
Flow Rate :
30 people per minute
Working Environment :
Indoor / Outdoor
Operation Humidity :
0 ~ 95% (No freeze)
Description
24VDC 40W Full Body Turnstile - 30 Person/Min Flow Rate
High-performance indoor/outdoor full height revolving door system with 30 person per minute flow rate and 610mm passage width.

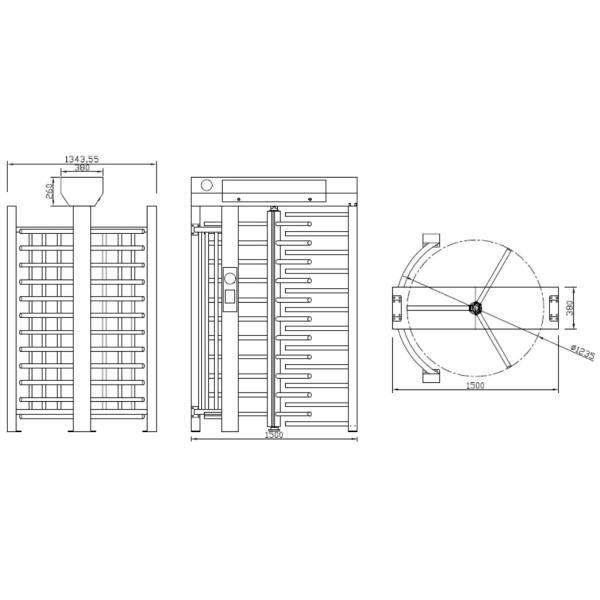

Product Dimensions
24VDC 30person/Min 610mm Width Full Height Turnstile Full Body Turnstile for Secure Access Control
Key Features
Long-life performance with high operational dependability and fast response
Automatic regulated hydraulic buffer device for quiet, impact-free operation
Selectable single directional or bi-directional access control
Automatic reset function with configurable timing (default 5 seconds)
Anti-tailing function ensures only one person passes at a time
Fire safety compliant - arms open automatically during power failure
LED indicator system (red × for no entry, green → for entry)
Integrated trunking system for organized cable management
Easy installation and maintenance procedures
Comprehensive 1-year warranty support
Product Photos
24VDC 30person/Min 610mm Width Full Height Turnstile Full Body Turnstile for Secure Access Control
Technical Specifications
Parameter Specification
Brand SINOMATIC
Framework Material 304 Full Stainless Steel
Dimension 1500 × 1343 × 2300mm
Weight 210kg/pcs
Passage Width 610mm
Arm Support 120° rotors with 3 sections or 90° rotors with 4 sections
Passing Direction Single directional / Bi-directional
MCBF 5 million
Power Supply AC220V/110V, 50/60Hz
Operation Voltage 24VDC
Power Consumption 40W
Operation Temperature -20°C to 60°C
Operation Humidity 0 to 95% (No freeze)
Working Environment Indoor / Outdoor
Flow Rate 30 people per minute
LED Indicator Yes
Emergency Feature Automatic arm open when power off
Communication Dry contact, Relay signal
Operation Principle
In CLOSE position, the electromagnetic locking device prevents the rotor gear from rotating, maintaining secure access control.
Upon receiving authorized access command:
• The locking device releases the rotor gear
• Pedestrian pushes the rotor to gain access
• The rotor moves by 120°
• The turnstile locks at close position after pedestrian has passed
