600mm Channel 1s Gate Opening Speed SS304 Bi Directional Swing Turnstile for Office Security
600mm Channel 1s Gate Opening Speed SS304 Bi Directional Swing Turnstile for Office Security
600mm Channel 1s Gate Opening Speed SS304 Bi Directional Swing Turnstile for Office Security
600mm Channel 1s Gate Opening Speed SS304 Bi Directional Swing Turnstile for Office Security
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SW03
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
3,000pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Product type :
Swing arm
Gate opening speed :
1s
Arm material :
SS304/ Acrylic
Surface finishing :
Wire drawing
Working humidity :
0~95%RH
Housing material :
SS304
Description
600mm Channel 1s SS304 Bi-Directional Swing Turnstiles for Office
Full automatic bi-directional swing turnstiles security gate designed for office entrance management with advanced access control capabilities.
Core Functions
  • Programmable working method via main panel controls
  • Anti-pinch and anti-collision safety features with automatic motor stop and 2Kg force limitation
  • Anti-illegal entry protection with automatic reverse direction closure
  • Collision prevention with automatic gate closure when no valid signal is detected
  • Motor protection system prevents damage from external force collisions
  • Synchronized gate operation
  • Auto-reset function with adjustable timing (1-60 seconds, default 10s)
  • Photocell-based reset functionality
  • Photocell anti-pinch protection
  • Compatible with access control, consumption, ESD, and e-ticket systems
  • One-way or two-way access control options
  • Remote control administration capabilities
  • LED lamp indicators for status monitoring
Extensible Functions
  • LED counter display
  • Customizable casing and gate dimensions
  • Advanced logic judgment with 8 or 10 photocell pairs
  • Speech reminder system
  • Adjustable normal close or normal open settings
  • Light and sound alarm options

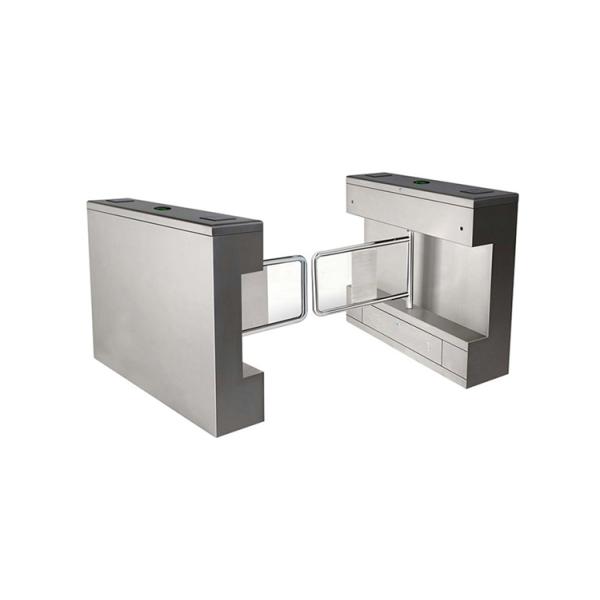

Product Image
600mm Channel 1s Gate Opening Speed SS304 Bi Directional Swing Turnstile for Office Security
Technical Specifications
Description Specification
Channel width 600mm (default)
Arm length 530mm (default)
Access device input voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor voltage DC 24V (brush motor)
Max flow rate 30 persons per minute
Gate swing angle 180 degrees
Gate opening speed 1 second
Reset time when power on 3 seconds
Working temperature -20°C to 60°C
Package Wooden box
Applications
Intelligent vertical swing turnstile compatible with IC card, ID card, barcode card, and fingerprint reading card recognition devices. Provides civilized, orderly access methods for staff management. Widely used in stations, wharves, subway systems, factories, office buildings, hotels, clubs, intelligent communities, and enterprises requiring sophisticated access management.
Frequently Asked Questions
Q1. How about some special design?
We specialize in custom gate and barrier designs tailored to your specific requirements. We can create different sizes, software configurations, and features based on your real situation. Video calls are available during the design process for real-time communication.
Q2. Do you have agency for after-sales service?
Our sales team is available anytime for delivery-related questions. For installation, we provide instructional videos. For technical questions, we offer face-to-face support to resolve issues promptly.
Q3. What time do you need to delivery?
Standard orders typically ship within 5-7 working days after payment. Delivery time may vary based on order quantity, and we discuss specific timelines before final payment.
