3.7Kw 80T Loading IP68 Removable Automatic Rising Bollard for Secure Car Parking
3.7Kw 80T Loading IP68 Removable Automatic Rising Bollard for Secure Car Parking
3.7Kw 80T Loading IP68 Removable Automatic Rising Bollard for Secure Car Parking
3.7Kw 80T Loading IP68 Removable Automatic Rising Bollard for Secure Car Parking
3.7Kw 80T Loading IP68 Removable Automatic Rising Bollard for Secure Car Parking
3.7Kw 80T Loading IP68 Removable Automatic Rising Bollard for Secure Car Parking
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HRB01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,credit card/Cash/wechat
Supply Ability :
1000 pcs a month
Delivery Time :
5-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Height above ground :
600mm/800mm/1000mm
Bollard Diameter :
219mm, 273mm, 324mm
Bollard Thickness :
6mm, 8mm,10mm, 12mm
Min. loading :
80T
Weight :
150KG±
Working temperature :
-65℃~+75℃
Description
3.7Kw 80T Loading IP68 Removable Automatic Bollard Car Parking
Newest technology car parking LED light 304/316 stainless steel hydraulic bollard with factory price
Product Overview
Illuminated Rising Bollards (also known as Parking Hydraulic Bollards or Removable Automatic Bollards) are designed for rapid operation in infrastructure with limited depth requirements. These bollards provide continuous operation and include spare equipment as part of standard supply, with after-sales service as a priority.
Safety Features
Immersible Rising Bollard Security
Dual safety mechanism ensures comprehensive protection:
  • Safety against vehicle loop detector
  • Security against human traffic: Photo Sensor
Control System
PLC-based control system that can be customized for specific applications and integrated with all access control devices.
Technical Specifications
System Control Electric Hydraulic Raised Height (Mm) 600mm (customized available)
Material 304 Stainless Steel or A3 Steel with painting Bollard Dia (Mm) 168, 219, 273 mm
Color Customized Thickness (Mm) 6 mm (Customized)
Power Supply 380V (control voltage 24V) Weight (Kg) ± 180 kg
System Dynamic Power (W) 3.7Kw LED Light Extra charge
Casing Size L500 * W500 * H900 / L600 * W600 * H900 Full Set Includes Bollard, Control Box
Product Functions & Features
  • Anti-collision: Withstands impact from 12-ton vehicles and remains operational
  • Anti-destructive power: Deforms but maintains integrity after 16-ton vehicle impact
  • Internal structure: Load-bearing steel beam and column, anti-collision steel beam column, 4 navigation rods
  • Manual lowering capability during power outages
  • Linkage interface for system integration
  • Reversible operation during ascent and descent
  • Operating noise ≤60 dB
  • Waterproof integrated hydraulic drive
  • Control solenoid valve 24V
  • Adjustable control box display text (up, down, start, time control adjustment)
  • Display text in English
  • Water immersion performance: No leakage during 48 hours with normal lifting
  • Anti-corrosion performance level: 9

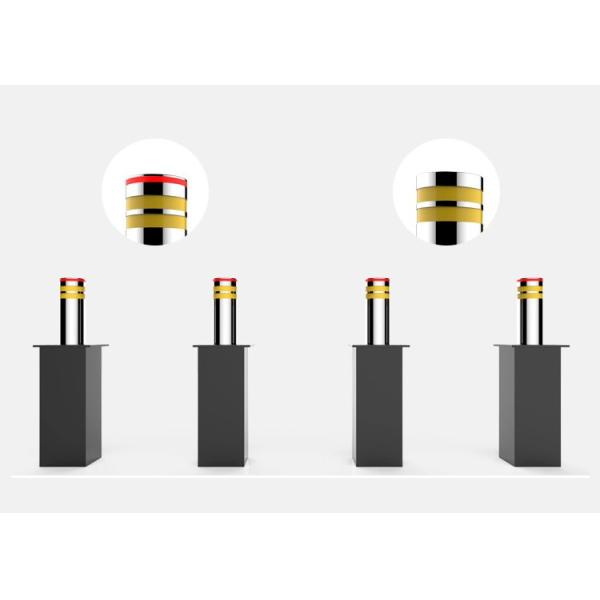

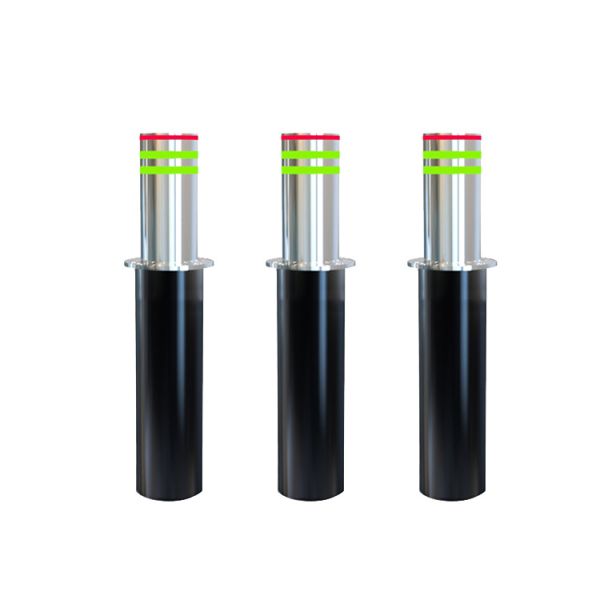

Product Images
3.7Kw 80T Loading IP68 Removable Automatic Rising Bollard for Secure Car Parking 3.7Kw 80T Loading IP68 Removable Automatic Rising Bollard for Secure Car Parking
Case Reference
3.7Kw 80T Loading IP68 Removable Automatic Rising Bollard for Secure Car Parking
Product Details
Automatic Operation: Features automatic raise/lower/stop functionality with heavy-duty hydraulic power pack and integrated control. Easy installation and operation with built-in LED flashing lights and reflective tape for enhanced visibility and safety.
Variable Frequency Controller: Adjustable raise/lower speed (3-6s) with emergency stop capability during operation. Electric control signal transmission ensures quick and reliable performance.
Foundation Plate: Thickened seamless 304 stainless steel with strong bearing capacity exceeding 80 tons. Provides rust protection and distortion resistance.
Built-in Safety Valve: Manual lowering capability via relief valve during power failures, ensuring uninterrupted passage for pedestrians and vehicles.
High-Quality Motor: Powerful motor enables rapid raising/lowering with stable, durable operation supporting 1500 cycles per day. Designed for easy disassembly and maintenance.
Multiple Security Protection: High-pressure air sealing for ventilation, enabling motor operation when submerged with electricity leakage protection.
