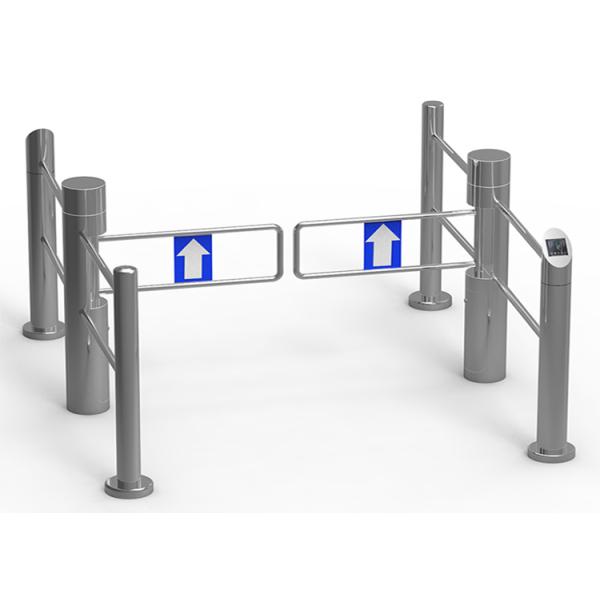

Automatic BLDC Motor SUS304 Swing Barrier Gate with Acrylic Arm for Supermarket Access Control
Automatic BLDC Motor SUS304 Swing Barrier Gate with Acrylic Arm for Supermarket Access Control
Automatic BLDC Motor SUS304 Swing Barrier Gate with Acrylic Arm for Supermarket Access Control
Automatic BLDC Motor SUS304 Swing Barrier Gate with Acrylic Arm for Supermarket Access Control
Automatic BLDC Motor SUS304 Swing Barrier Gate with Acrylic Arm for Supermarket Access Control
Automatic BLDC Motor SUS304 Swing Barrier Gate with Acrylic Arm for Supermarket Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SW01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
3,000pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Motor type :
BLDC motor
Motor voltage :
DC24V
Framework material :
SS304
Arm material :
SS304/Acrylic
Application :
indoor/outdoor
Optional :
counter, sensor
Description
BLDC Motor SUS304 Swing Barrier Gate Acrylic Arm For Supermarket
Product Overview
This automatic BLDC motor swing barrier gate features 304 stainless steel construction with acrylic arms, designed specifically for supermarket entrance control. The equipment integrates mechanical, electronic, and microprocessor control systems with various reading technologies for intelligent access management.
Technical Specifications
Description Specifications
Framework material SS304/SS316
Dimension Column diameter: 168mm, height: 1050mm
Power supply AC 220V/110V±10%
Motor voltage DC24V (Brush-less motor)
Access device input Dry contact
Optimal flow rate At least 30 persons/minute
Gate swing angle 90° per side
Gate opening/closing speed 1 second
Reset time when power on 3 seconds
Arm material Transparent acrylic/SS304
Default arm length 530mm
Arm max. bearing 30KG
Working environment Indoor/outdoor with shelter
Working temperature -15°C to 80°C
Relative humidity ≤95%, Non-condensation
Communication interface RS485 standard (distance ≤ 1200m)
Key Features
  • Stainless steel housing with rain-proof laser opening
  • LINIX brush-less DC motor with electroplated surface
  • Adjustable arm length: 500mm to 800mm
  • Fault detection and alarm functions for easy maintenance
  • Programmable operation via built-in keyboard
  • Mechanical anti-pinch safety function
  • Anti-breakthrough automatic locking system
  • Synchronization functions for dual gate setups
  • Automatic reset function with configurable timing
  • Configurable as normally open or normally closed
  • Compatible with IC/ID card readers, bar codes, fingerprints
  • Unidirectional or bidirectional operation modes
  • Remote control and management via computer interface
  • Optional LED direction indicators
  • Fire safety compliant - auto opens when power fails
  • Infrared photocell support for anti-pinch function
Design Advantages
The stylish stainless steel column and clear toughened glass wing present a bright, concise design. Bi-directional opening facilitates fast and safe access, while integration with recognition systems enables user-friendly access control. High security and stability make it suitable for banks, corporate headquarters, airports, and leisure venues.
Applications
This brush-less anti-collision swing barrier serves as intelligent passage management equipment, integrating mechanical transmission, microprocessor control, voice, and reading technologies. It provides comprehensive access control and management for public channels through configurable reading devices.
