150mm Width IP45 Automatic Swing Arm Turnstile Gates with 5,000,000 Cycles MCBF for High-Speed Pedestrian Control
150mm Width IP45 Automatic Swing Arm Turnstile Gates with 5,000,000 Cycles MCBF for High-Speed Pedestrian Control
150mm Width IP45 Automatic Swing Arm Turnstile Gates with 5,000,000 Cycles MCBF for High-Speed Pedestrian Control
150mm Width IP45 Automatic Swing Arm Turnstile Gates with 5,000,000 Cycles MCBF for High-Speed Pedestrian Control
150mm Width IP45 Automatic Swing Arm Turnstile Gates with 5,000,000 Cycles MCBF for High-Speed Pedestrian Control
150mm Width IP45 Automatic Swing Arm Turnstile Gates with 5,000,000 Cycles MCBF for High-Speed Pedestrian Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-HSG150
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
500 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Operation Eenvironment :
Indoor/outdoor with shelter
LED Indcator :
Yes
LED color :
RGB
Housing width :
150mm(default)
Housing height :
1060mm
MCBF :
5,000,000 Cycles
Description
150mm Width IP45 Automatic Swing Arm Turnstile Gates
High Speed Sensitivity Anti-Rust And Anti-Corrosion Treatment
Advanced automatic swing arm turnstile gates designed for reliable access control with superior durability and intelligent features.
Main Features
  • ARM core micro CPU circuit with digital positioning technology for stable operation and precise control
  • Smooth running performance with minimal noise and reliable mechanical structure
  • Anti-rust and anti-corrosion surface treatment for enhanced durability
  • Control panel with counting function and optional LCD/LED display
  • High precision sensors with intelligent recognition algorithms for accurate pedestrian detection
  • Intelligent voice and sound prompts for user-friendly operation
  • Automatic malfunction inspection and alarm system for easy maintenance
  • Mechanical and infrared sensor anti-pinch protection with automatic reset
  • Sound and light alarm for unauthorized access attempts
  • Anti-impact function with automatic locking mechanism
  • Automatic reset function with configurable timing
  • Infrared sensor reset and anti-pinch functionality
  • Power-off automatic opening and power-on automatic closing
  • Compatible with access control, consumer, ticketing, biometric, and testing systems
  • Single or bi-directional pedestrian control options
  • Remote computer control and management capabilities
Product Description
The SN-HSG150 high speed gate features a robust construction with SS304 stamped profiles combined with aluminum alloy and cold-rolled steel components. This design ensures an attractive appearance while providing excellent rust resistance, durability, and protection against external damage.
With standard electrical interfaces, the system easily integrates with various card readers including bar code, ID card, and IC card technologies. This provides organized pedestrian access control while preventing unauthorized entry. The system includes fire safety compliance features to ensure emergency egress capability.
This intelligent access management solution represents years of research and development, combining mechanical engineering, electronic controls, and microprocessor technology with various reading devices. Through coordinated operation with reliable safety protection and real-time alarm systems, it delivers comprehensive access control management.
Applications
Compatible with IC card, ID card, barcode card, and fingerprint recognition systems, these high-speed gates provide organized access management for staff and visitors. Ideal for transportation hubs, industrial facilities, office buildings, hotels, clubs, smart communities, and organizations requiring sophisticated access control.
Product Specifications
Model SN-HSG150
Case Material SS304, MS, aluminum alloy
Barrier Arm Material Transparent Acrylic
Production Process CNC Laser Cutting
Size 1210*150*1060mm (Customization acceptable)
Power Input AC100-240V, 50/60HZ
Operation Voltage DC24V, 3A, Power: 40W (Servo Motor Optional)
Electromagnetic Duty Cycle 100%
Passage Width 600mm (Customization acceptable)
Passage Direction Single directional/Bi-directional (Optional)
Operating Time 1S
Throughput Rate 30 persons/minute (Normally Closed) or 40 persons/minute (Normally Open)
Reset Time after Power on 3S
MCBF 5,000,000 Cycles
Automatic Reset Function Automatically locked within set time (Time Adjustable)
LED Indicator Yes
Operation Humidity 0~95% (No Freezing)
Operation Temperature -20℃~+60℃
Operation Environment Indoor, Outdoor (Shelter)
Protection Level IP45
Communication Interface Standard RS485 interface, distance ≤1200 meters
Input Interface Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA

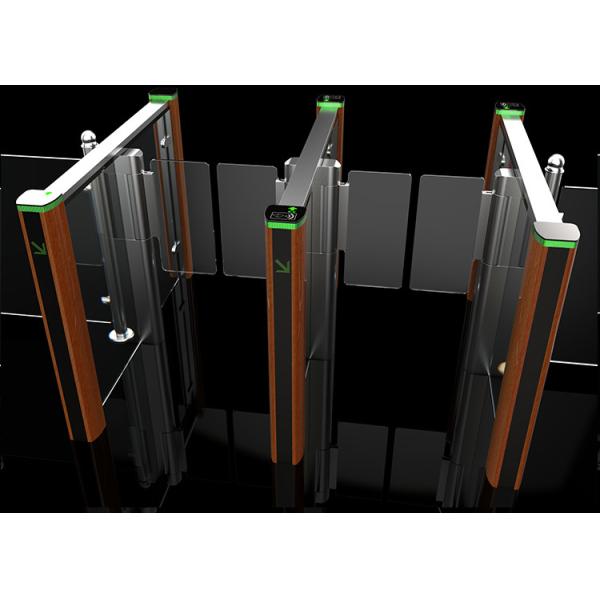

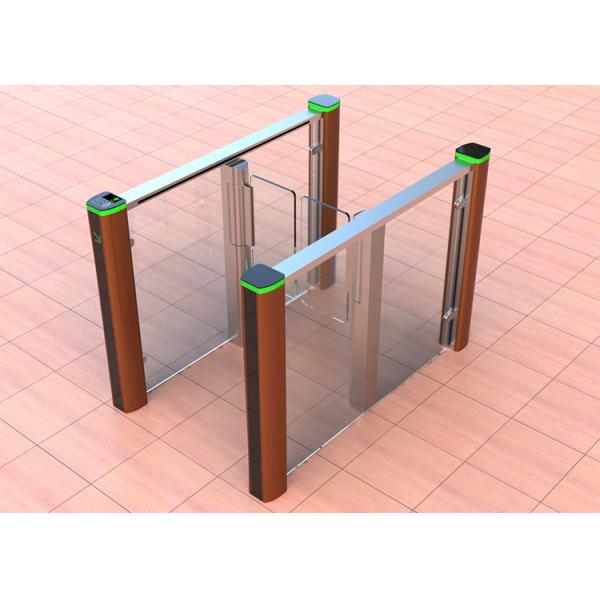

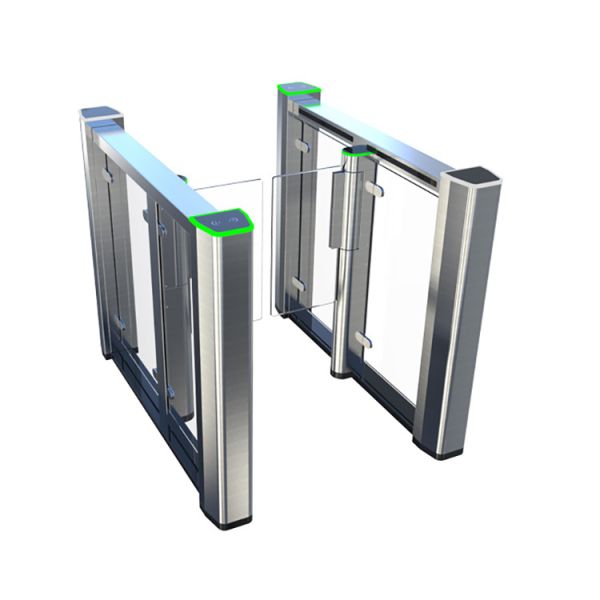

Product Photo
150mm Width IP45 Automatic Swing Arm Turnstile Gates with 5,000,000 Cycles MCBF for High-Speed Pedestrian Control
Dimension Diagram
150mm Width IP45 Automatic Swing Arm Turnstile Gates with 5,000,000 Cycles MCBF for High-Speed Pedestrian Control
