SS304 Full Height Turnstile with 0.2 Seconds Response Time and 600mm Arm for High Security Access Control
SS304 Full Height Turnstile with 0.2 Seconds Response Time and 600mm Arm for High Security Access Control
SS304 Full Height Turnstile with 0.2 Seconds Response Time and 600mm Arm for High Security Access Control
SS304 Full Height Turnstile with 0.2 Seconds Response Time and 600mm Arm for High Security Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FH01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,
Supply Ability :
3,00pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Flow rate :
30 person per minute
Rotating degree :
120 degree/ 90 degree
Material of housing :
SS304
Size of housing :
Customized
OEM/ODM :
supported
Arm length :
500mm to 600mm
Description
SS304 0.2 Seconds 600mm Arm Full Height Turnstile
High Security Mechanical Access Management
Professional full height turnstile designed for stadiums, factories, and energy parks to control pedestrian entry and exit with maximum security.
Product Overview
This full height turnstile is constructed from 1.2mm thick stainless steel #304 with double brushed surface treatment. Features dust-proof, rustproof, and rainproof design suitable for both indoor and outdoor applications. Easily integrates with various read/write devices for comprehensive access control.
Applications
Ideal for stadiums, apartments, gyms, museums, stations, libraries, factories, and other high-security pedestrian access points.
Key Features
  • Rainproof housing with anti-corrosion coating and 304/316 stainless steel construction
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic rotation: rotates to next position if arm moves beyond half-way, returns to current position if less than half-way
  • Adjustable tensioner controls rotation force for smooth operation suitable for all users including elderly and children
  • Configurable as bi-directional or uni-directional with key-locked housing to prevent tampering
  • Innovative mounting surface ensures simple and convenient installation
  • Compatible with IC/ID card readers, barcode scanners, fingerprint readers, and other access control devices
  • Automatic reset function cancels user authority if passage isn't completed within preset time (default 5 seconds)
  • Hydraulic buffer device ensures quiet, impact-free operation
Technical Specifications
Material 1.2mm thickness SS304
Pass Width 600mm
Passage Direction Single directional/Bi-directional
Pass Rate 30 persons/minute
Operating Time 0.2 seconds
Power Input AC100-240V, 50/60HZ
Working Voltage 24V
Working Humidity 30%~95%
Working Temperature -40℃~+70℃
Working Environment Indoor/Outdoor available
Communication Interface Dry contact
MCBF 5,000,000 Cycles
Application Stadium, Apartment, Museum, Station, Factory, etc
Product Images

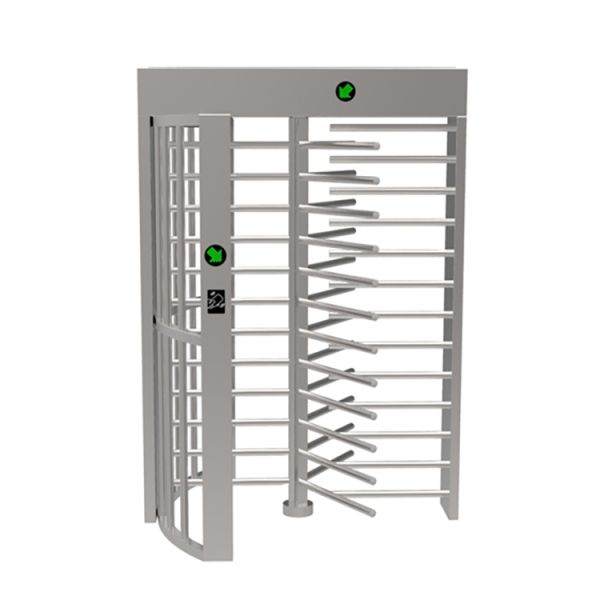

SS304 Full Height Turnstile with 0.2 Seconds Response Time and 600mm Arm for High Security Access Control
Why Choose Our Turnstiles
  • Over 20 years OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard models kept in stock
  • OEM/ODM orders accepted to meet specific client requirements
  • Trial orders available for testing before bulk purchasing
  • Comprehensive online technical support
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
