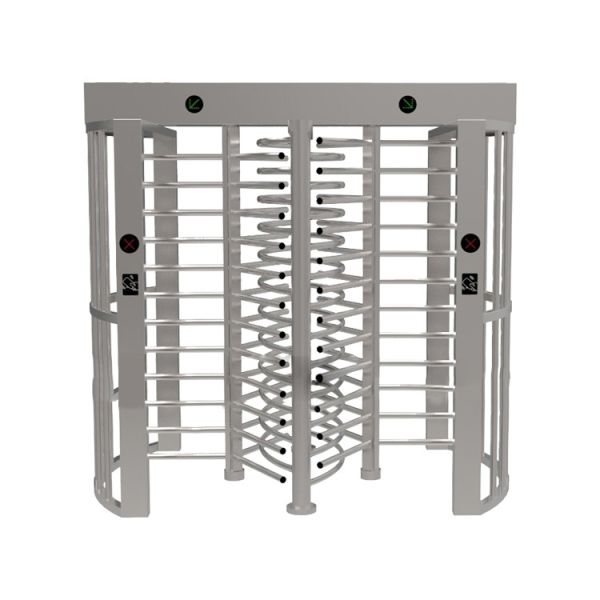

High Security Full Height Turnstile Pedestrian Access Control Hot Dip Galvanized Steel
High Security Full Height Turnstile Pedestrian Access Control Hot Dip Galvanized Steel
High Security Full Height Turnstile Pedestrian Access Control Hot Dip Galvanized Steel
High Security Full Height Turnstile Pedestrian Access Control Hot Dip Galvanized Steel
High Security Full Height Turnstile Pedestrian Access Control Hot Dip Galvanized Steel
High Security Full Height Turnstile Pedestrian Access Control Hot Dip Galvanized Steel
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FH02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
100 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Frame Material :
Mild Steel or SS304
Operation Humidity :
0 ~ 95% (No freeze)
Package :
Woodne case
Arm angle :
90 or 120 degree
Input interface :
Dry contact
Direction :
Single or Bi-directional
Description
High Security Full Height Turnstile Pedestrian Access Control
Hot dip galvanized steel full height turnstile barrier designed for maximum security and durability in high-traffic pedestrian access control applications.
Applications
Suitable for commercial buildings, subways, airports, customs, exhibition halls, government buildings, financial institutions, clubs and other high-end indoor applications.
Key Advantages
  • Running stable without noise and mechanical impact
  • Equipped with dry contact signal input interface, compatible with all types of access controllers
  • Automatic cancellation of pass rights if passage not used within permitted time
  • Automatic arm opening during power failure for emergency safety
  • Optional external counter to record people numbers for each lane
  • Single way or bi-directional operation adjustable based on requirements
  • Equipped with LED directional indication and status lights
Product Specifications
Dimension Single-channel: 1500*1350*2240mm
Dual-channel: 2400*1377*2240mm
Stainless Steel Specification Body: SS304
Passage Width Approximately 600mm
Power Supply AC110V±10V, 60Hz / AC220V±10V, 50Hz
Drive Motor DC24V solenoid
Passing Speed 30 persons/minute
Input Interface +12V electrical signal or DC impulse signal with width >100ms
Communication Interface Relay signal
Operating Temperature -20°C to 60°C
Relative Humidity ≤95%
Package Wooden Box
Main Functions & Features
  • Automatic low noise mechanism core with high cost-performance
  • Sense positioning reduces mechanical impact for longer lifetime
  • High operating efficiency with 1-2 second open & close cycles
  • Ultra-low noise operation under 30dB
  • Self-checking and alarm warning for maintenance
  • Automatic resetting cancels authorized pass if passenger delayed
  • Anti-following function prevents illegal passing
  • Anti-clamp protection with automatic reset after delay
  • Automatic rotary wing locking without IR signal
  • Multi-passage configurations for diverse application needs
  • Programmable signal control for pass time, speed, and parameters
  • RS232/RS485 interface for various communications
  • Compatible with IC/ID card readers, fingerprint readers, and face recognition devices
  • Long-distance management through computer systems
  • Customizable options including LED display, voice guidance, warning lamps, and audible/visible alarms
Basic Parameters
Dimensions 2300*1377*2240mm
Cabinet Material 38 round tube, 1.2mm Mild steel or SS304/316
Channel Width 600mm
Ambient Temperature -20°C to 60°C
Working Environment Indoor and outdoor (with outdoor canopy)
Technical Parameters
Input Voltage 100V-240V
Driving Voltage 24V
Equipment Power 40W
Response Time 0.2S
Passing Speed 30 people/minute
Communication Distance Less than 1200m
Open Brake Signal Input Dry contact
Switching Door Time Less than 1S
Product Dimensions
