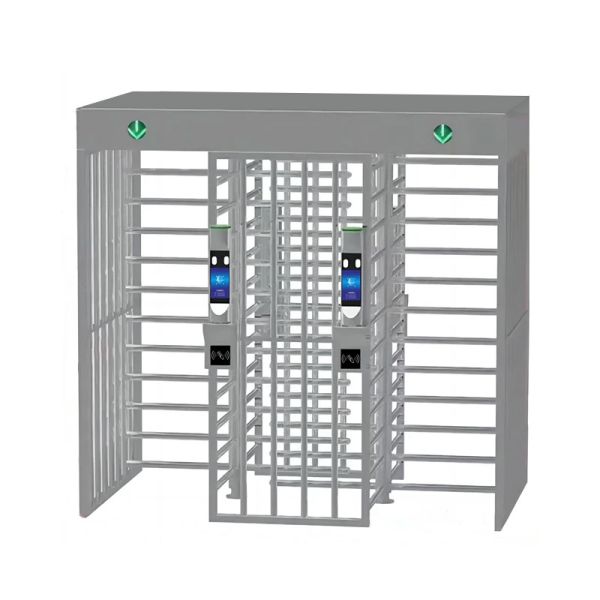

Dual Lane Security Gate Turnstile 304 Stainless Steel Mild Steel Painting Outdoor Waterproof
Dual Lane Security Gate Turnstile 304 Stainless Steel Mild Steel Painting Outdoor Waterproof
Dual Lane Security Gate Turnstile 304 Stainless Steel Mild Steel Painting Outdoor Waterproof
Dual Lane Security Gate Turnstile 304 Stainless Steel Mild Steel Painting Outdoor Waterproof
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-FH02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
100 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Transit speed :
30~35 person/min
Power supply :
AC100~240V, DC24V
Response Time :
less than 0.2s
Surface treatment :
Brushed
IP Rating :
54
Material :
Customizable
Description
Dual Lane Security Gate Turnstile - 304 Stainless Steel with Weatherproof Construction
SINOMATIC dual lane semi-automatic full-height turnstiles provide maximum access security control. These robust gates prevent unauthorized access by eliminating opportunities to crawl underneath or climb over the barrier.
Engineered for high-traffic outdoor environments, our full-height turnstiles ensure single-person passage control with advanced reliability and vandal-resistant construction using premium materials.
The semi-automatic operation utilizes a solenoid locking mechanism that securely blocks rotation direction for controlled access management.
Enhanced Security & Durability
A robust and durable gate is essential for outdoor security applications. Our turnstiles address concerns about security vulnerabilities and vandalism while providing cost-effective alternatives to premium European brands.
Space-Efficient Dual Lane Design
The dual lane configuration saves valuable space compared to installing two separate single lane full-height turnstiles, optimizing your security footprint.
Advanced Anti-Reverse Security
Our SLAR (Single-Level Anti-Reverse) lock design prevents security loopholes where intruders could reverse rotation after authorized passage, eliminating unlimited unauthorized entry risks.
Extended Service Life
Heavy-duty shock absorbers in our design effectively reduce impact and vibration from rotational momentum during operation, minimizing mechanical wear and reducing maintenance costs.
Emergency Safety Features
Manual unlocking capability during power failures allows free arm rotation for rapid emergency evacuation while maintaining security during normal operation.
Cost-Effective Transportation
The tripod arm ships as three separate pieces to lower transportation costs, with easy on-site assembly for quick deployment.
Technical Specifications
Parameter Specification
Power Supply Input AC100V~240V; DC24V
Power Voltage DC 24V / 50W
Open Signal Passive signals (relay signals, dry contact signals)
Passage Width ≤650mm
Response Time ≤0.2s
Optimal Pass Speed 30-35 person/min
Housing / Arm Material 304 Stainless Steel
Arm Rotation Angle 90/120 degree
Working Environment Indoor and outdoor
Working Temperature -20°C to +70°C
IP Rating IP54
Housing Dimension 2400mm (W) x 1580mm (L) x 2300mm (H)
Operations Time ≥10 million times
Key Features & Functions
  • 304 stainless steel housing with customizable appearance options
  • Clear access direction indicators with intuitive LED traffic lights
  • Unique drive system for precise and reliable zero lock/unlock operation
  • Light push operation after valid card reading for smooth passage
  • 90/120 degree rotation per passage cycle
  • Automatic reset function with configurable timeout settings
  • Standard interfaces compatible with various reading/writing equipment
  • Emergency power-off free access with automatic locking upon power restoration
  • Configurable card reading with memory and non-memory functions
