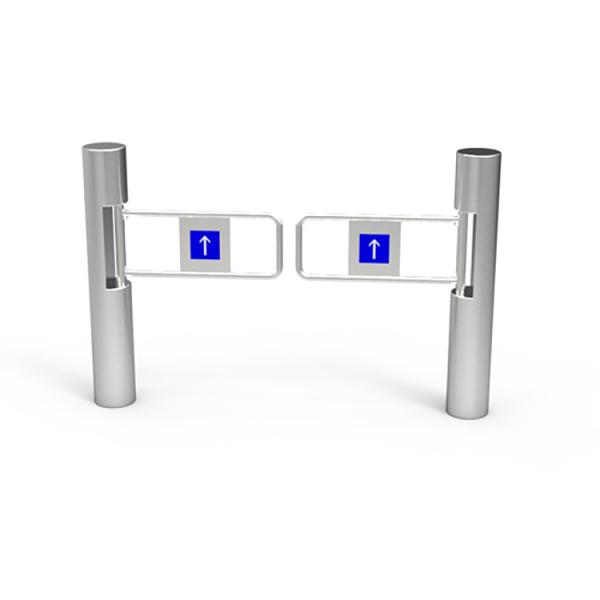

SS304 DC 24V Supermarket Swing Gate High Security Safety With Infrared Sensor
SS304 DC 24V Supermarket Swing Gate High Security Safety With Infrared Sensor
SS304 DC 24V Supermarket Swing Gate High Security Safety With Infrared Sensor
SS304 DC 24V Supermarket Swing Gate High Security Safety With Infrared Sensor
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SW01
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T or western Union
Supply Ability :
1,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Motor voltage :
DC24V
Surface treatment :
Polished
Tube Dimeter :
168mm
Passing Direction :
Singel or Bi-directional
Passing speed :
30 to 35 person / minute
Arm lenght :
500 to 800mm
Description
SS304 DC 24V Supermarket Swing Gate with High Security Safety Infrared Sensor
This high-security swing barrier gate features infrared sensor technology and can be integrated with any access control system. Designed for supermarket applications, it provides fail-safe safety solutions during emergencies or power failures, ensuring egress during crisis evacuations.
Product Features
  • Stainless steel housing with rain-proof laser opening
  • LINIX brush-less DC motor with electroplated surface
  • Adjustable arm length from 500mm to 800mm
  • Fault detection and alarm functions for easy maintenance
  • Programmable running status with built-in keyboard control
  • Mechanical anti-pinch function with automatic reset
  • Anti-breakthrough function with automatic locking
  • Synchronization functions for dual gate equipment
  • Automatic reset function with configurable timing
  • Configurable as normally open or normally closed
  • Compatible with various card readers: IC/ID, bar codes, fingerprints
  • Unidirectional or bidirectional operation settings
  • Remote control and management via computer connection
  • Optional LED direction indicator
  • Automatic power-off opening and power-on closing for fire safety
  • Infrared photocell support for anti-pinch and reset functions
Product Advantages
  • Bi-directional operation capability
  • High quality at cost-effective pricing
  • Integration with any access control and ID systems
  • Low power consumption
  • Whisper quiet, low noise operation
  • Customizable gate opener options
  • Wide range of available accessories
  • Complete supply set as standard
  • Choice between fail-safe (default) or fail-secure modes
Technical Specifications
Description Parameter
Cabinet material 304 stainless steel
Arm material 304 stainless steel/Acrylic
Dimension Case diameter: 168mm
Power supply AC 220V/110V±10%
Motor voltage DC24V (Brush-less motor)
Access device input Dry contact
Optimal flow rate 30 to 35 person/minute
Gate swing angle 90 deg per side
Gate opening/closing speed 1s
Reset time when power on 3s
Default arm length 530mm
Arm max. bearing capacity 30KG
Working environment Indoor/outdoor with shelter
Working temperature -15°C~80°C
Relative humidity ≤95%, Non condensation
Communication interface RS485 standard (distance ≤ 1200m)
SS304 DC 24V Supermarket Swing Gate High Security Safety With Infrared Sensor
Extendibility Options
  • LED counter display
  • Customizable casing and gate sizes
  • Logic judgment by photocells (8 pair or 10 pairs)
  • Speech reminder system
  • Adjustable normal close or normal open settings
  • LED lighting and sound alarm systems
