IP44 Full Height Turnstile Mechanism Core Kit Surface Oxidation Protection Mold Design
IP44 Full Height Turnstile Mechanism Core Kit Surface Oxidation Protection Mold Design
IP44 Full Height Turnstile Mechanism Core Kit Surface Oxidation Protection Mold Design
IP44 Full Height Turnstile Mechanism Core Kit Surface Oxidation Protection Mold Design
Specifications
Brand Name :
SINOMATIC
Model Number :
FH-SM-M1-PLUS
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,
Supply Ability :
5,00 pcs per month
Delivery Time :
5 to 7 days after payment received
Packaging Details :
Carton box/ Plywood box/Pallet
Power supply :
AC100~240V, DC24V
MTBF :
More than 10 million times
IP :
IP44
Working Temperature :
-25℃-75℃
Direction :
Bi-directional
Rotation degree :
120 or 90 degree(to be clarified)
Description

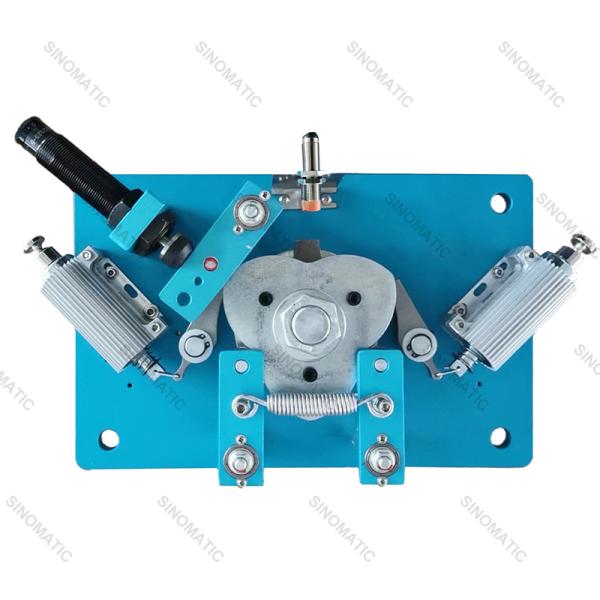

IP44 Full Height Turnstile Mechanism Core Kit with Surface Oxidation Protection
This advanced full height turnstile mechanism core kit features surface oxidation protection mold design and radiator solenoid technology for enhanced durability and performance.
Product Advantages
  • Electroplated and oxidized main body for anti-rust protection and aesthetic durability
  • Mold-designed vulnerable parts for reduced wear and enhanced rust resistance
  • Aluminum alloy heat sink solenoids for effective heat dissipation and extended service life
Technical Specifications
Power Input AC100~240V, DC24V
Solenoid With radiator
Drive Type Semi-automatic
Material Steel
Passing Speed 30 person/min, adjustable
Direction Bi-directional
Working Temperature -25℃-75℃
Communication Signal Dry contact (RS485 Optional)
MTBF More than 10 million times
Relative Humidity <95%
Key Features & Functions
  • Automatic regulated hydraulic buffer device for low noise and impact operation
  • Mechanical drive unit with solenoid locking mechanism eliminates expensive electric motors and reduces maintenance costs
  • Automatic rotation to next idle position when arm rotates more than half, or returns to current position when rotated less than half
  • Built-in adjustable tensioner for controlled rotation force, enabling easy operation for all users including elderly and children
  • Configurable bi-directional or uni-directional operation with tamper-resistant housing lock
  • Innovative mounting surface design for simple and convenient installation
  • Compatible with various access control devices: IC/ID card readers, bar-code scanners, fingerprint systems (access controller required)
  • Automatic reset function cancels user authority if passage isn't completed within preset time (default 5 seconds)
IP44 Full Height Turnstile Mechanism Core Kit Surface Oxidation Protection Mold Design
About Sinomatic

Shenzhen Sinomatic Technology Co., Limited, located in Shenzhen China, is a high-tech enterprise specializing in R&D, production, and sales of security access control solutions.

Main product lines include:

  • Access control turnstiles
  • Parking barrier gates & parking locks
  • Road bollards, road blockers & tire killers
  • Automatic gate operators

Our products have been exported to over 100 countries worldwide, including Italy, Germany, UK, Spain, Russia, Canada, Mexico, Brazil, UAE, Qatar, India, Malaysia, Singapore, Thailand, South Africa, and Kenya.

We focus on stable functionality and excellent performance in product development, while offering competitive pricing to establish win-win, long-term partnerships with customers worldwide.
