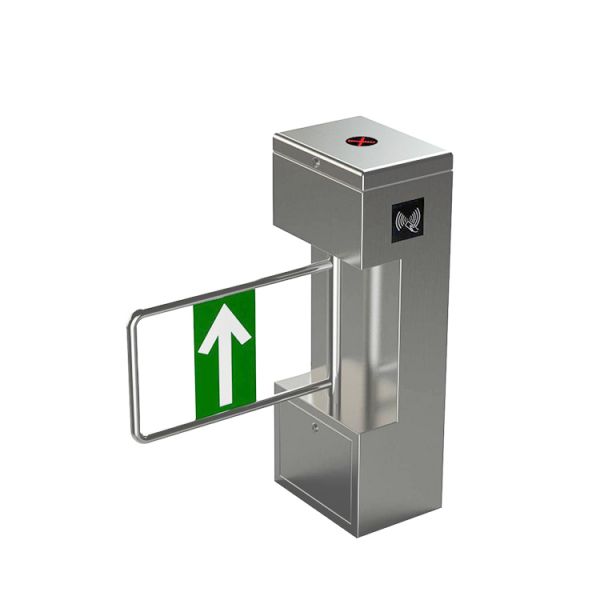

Custom Automatic Swing Barrier Gate with RFID Reader Auto Closing and Bi-directional Passage
Custom Automatic Swing Barrier Gate with RFID Reader Auto Closing and Bi-directional Passage
Custom Automatic Swing Barrier Gate with RFID Reader Auto Closing and Bi-directional Passage
Custom Automatic Swing Barrier Gate with RFID Reader Auto Closing and Bi-directional Passage
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SW02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
3,000pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Working humidity :
0~95%RH
Direction :
Can be set as single or double
Surface finishing :
Wire drawing
Gate opening speed :
1.5s
Standard :
European standard
Application :
Indoor/ outdoor with tent
Description
Custom Automatic Swing Barrier Controlled Access Turnstiles With RFID Reader
Access control system head counting auto closing pedestrian swing barrier with RFID reader
Pedestrian Swing Gate Introduction
Available in single walkway or bi-directional passage configurations. Both directions can be set as controlled mode or free mode. Features self-recovery function that automatically resets with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable via software).
Key Features
  • Bi-directional opening capability
  • Seamless integration with access control systems
  • Dry contact trigger opening with automatic timer-based closing
  • Dual dry contact control (NC for open, NO for close) for precise access timing
  • Automatic free access during power failure with security restoration upon power resume
  • Built-in clutch mechanism disengages motor drive when obstructed, minimizing impact force
  • Optional safety IR beam for obstacle detection and automatic gate reversal
  • Customizable gate length to fit specific site requirements
  • Synchronized opening when multiple barriers are installed in same passage
  • Self-locking motor mechanism at open and close positions
Technical Specifications
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor Voltage DC 24V (brush motor)
Maximum Flow Rate 20 to 25 persons per minute
Gate Swing Angle 180 degrees
Gate Opening Speed 1.5 seconds
Reset Time When Power On 3 seconds
Working Temperature -20°C to 60°C
Application Example
Custom Automatic Swing Barrier Gate with RFID Reader Auto Closing and Bi-directional Passage
Why Choose Our Swing Barrier Turnstiles
  • OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model inventory
  • Custom OEM/ODM orders to meet specific client requirements
  • Trial orders and sample testing available before bulk orders
  • Comprehensive online technical support
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome on working days
