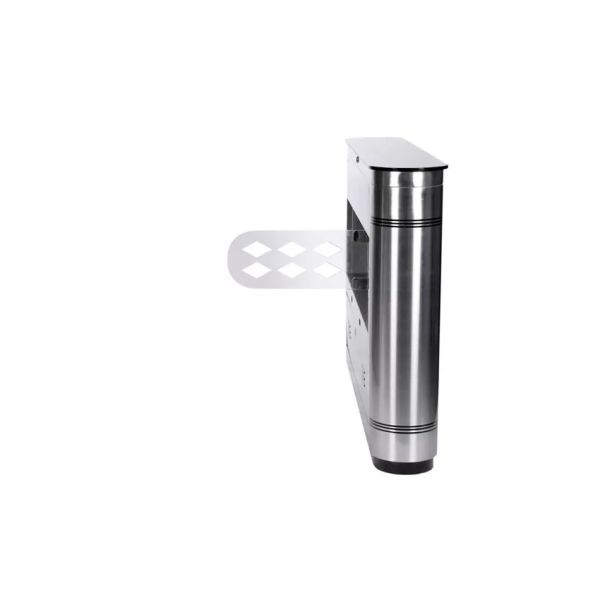

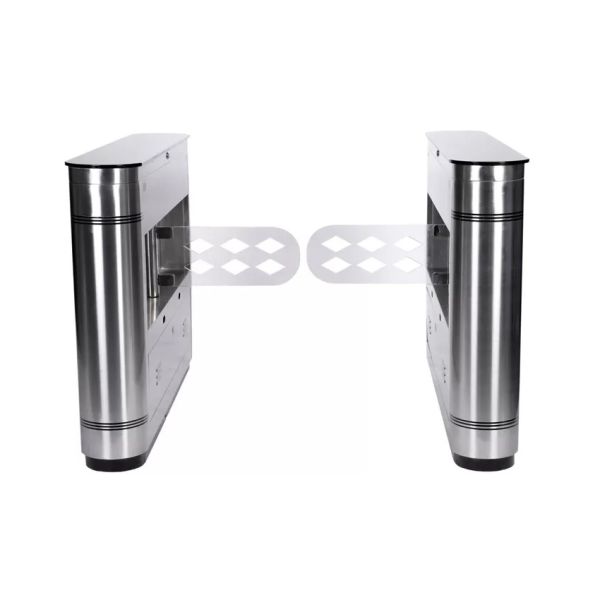

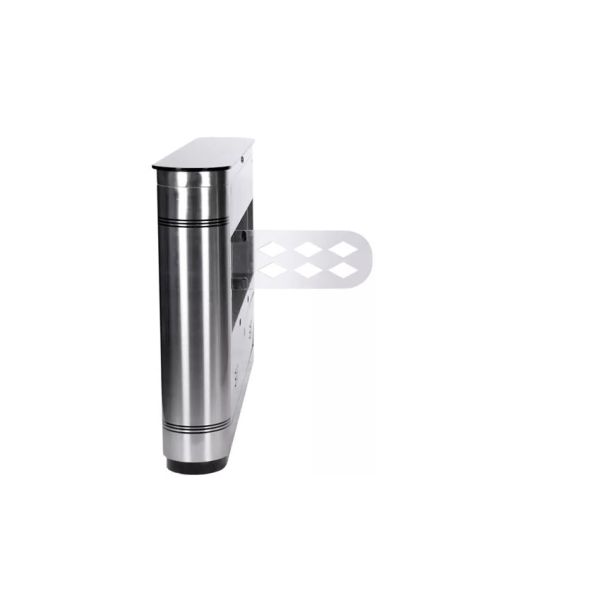

Luxury Slim Intelligent Full Automated Pedestrian Swing Gate With Marble Top Cover and 304 Stainless Steel Body
Luxury Slim Intelligent Full Automated Pedestrian Swing Gate With Marble Top Cover and 304 Stainless Steel Body
Luxury Slim Intelligent Full Automated Pedestrian Swing Gate With Marble Top Cover and 304 Stainless Steel Body
Luxury Slim Intelligent Full Automated Pedestrian Swing Gate With Marble Top Cover and 304 Stainless Steel Body
Luxury Slim Intelligent Full Automated Pedestrian Swing Gate With Marble Top Cover and 304 Stainless Steel Body
Luxury Slim Intelligent Full Automated Pedestrian Swing Gate With Marble Top Cover and 304 Stainless Steel Body
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SW04
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
3,000pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Size :
1200mm*230mm*1000mm
Body material :
304 stainless steel
Top cover material :
marble
Arm material :
Acrylic
Product life :
4 million times
Motor :
24V DC
Description
Luxury Slim Intelligent Full Automated Pedestrian Swing Gate With Marble Top Cover
Luxurious full automated slim size swing turnstile barrier with marble top cover and 2-year warranty
Swing Arm Barrier Introduction
  • Intelligent route-way managing device
  • Integrated mechanical, electronic, and microprocessor systems
Key Features
  • Bi-directional opening capability
  • Seamless integration with access control systems
  • Dry contact trigger opening with automatic timer closure
  • Programmable delay time on control panel
  • Automatic opening during power failure for free access
  • Built-in safety clutch disengages motor when obstructed
  • Optional safety IR beam for obstacle detection and auto-reverse
  • Customizable gate length to fit site requirements
  • Auto-synchronized opening for dual barrier installations
  • Self-locking motor mechanism at open and close positions
Technical Specifications
Description Specification
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Access Device Input Voltage Dry contact or 12V electrical level signal or >100ms 12V impulse signal, driving current >10mA
Motor Voltage DC 24V (brush motor)
Maximum Flow Rate 20 to 25 persons per minute
Gate Swing Angle 180 degrees
Gate Opening Speed 1.5 seconds
Reset Time When Power On 3 seconds
Working Temperature -20°C to 60°C
Product Application
Luxury Slim Intelligent Full Automated Pedestrian Swing Gate With Marble Top Cover and 304 Stainless Steel Body
Why Choose Our Products
  • Over 20 years OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model stock availability
  • OEM/ODM orders accepted to meet client requirements
  • Trial orders and sample testing available before bulk orders
  • Comprehensive online technical support
  • Multiple transportation options: sea shipment, air cargo, or express
  • Factory visits welcome on working days
