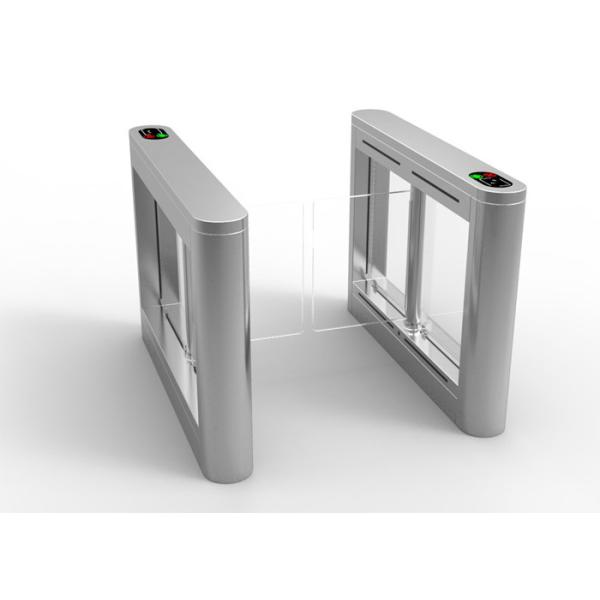

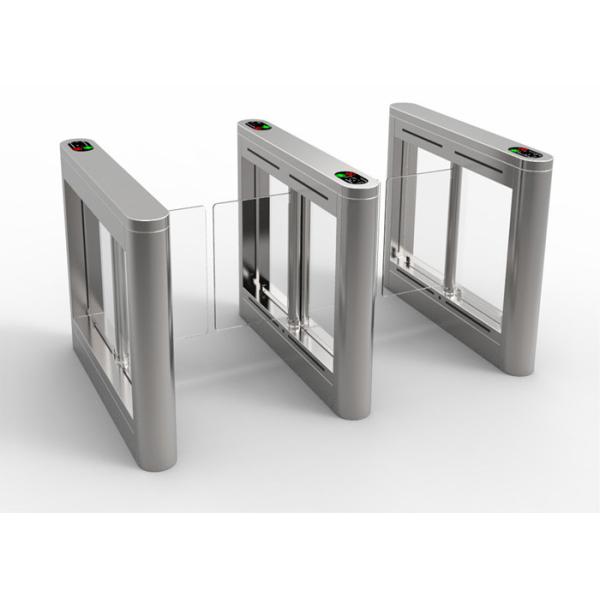

304 Grade Stainless Steel Swing Barrier Gate with 180 Degree Swing Angle and Bi-Directional Entry Control
304 Grade Stainless Steel Swing Barrier Gate with 180 Degree Swing Angle and Bi-Directional Entry Control
304 Grade Stainless Steel Swing Barrier Gate with 180 Degree Swing Angle and Bi-Directional Entry Control
304 Grade Stainless Steel Swing Barrier Gate with 180 Degree Swing Angle and Bi-Directional Entry Control
304 Grade Stainless Steel Swing Barrier Gate with 180 Degree Swing Angle and Bi-Directional Entry Control
304 Grade Stainless Steel Swing Barrier Gate with 180 Degree Swing Angle and Bi-Directional Entry Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SW05
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
1,000pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Housing material :
304 grade stainless steel
Housing thickness :
2.0mm
Gate material :
Clear acrylic
Max. passage width :
1000mm
Arm swing angle :
180 degree
Swing direction :
Single or bi-direction
Description
Bi-Directional Security Swing Gate Entry Control
180° Direction Swing Arm Speed Gate
Secure bi-directional entry control with 180° swing arm speed gate
Product Overview
Sinomatic speed gate series provide secure bi-directional entry control while blending beautifully with high-end environments. These intelligent speed gates offer increased facility security, more organized entry/exit processes, and reduced staffing requirements for monitoring guest and employee access.
All models integrate seamlessly with access control systems and provide quiet, highly-reliable operation with rapid throughput. Advanced integrated sensors and motorized barriers control access, block unauthorized entry attempts, and detect "tailgating" on allowed entries. Audible and visual alerts activate when unauthorized passage is attempted. Center cabinet designs allow for space-saving, multi-lane configurations.
Sinomatic speed gates are premium passenger access management devices developed through extensive research. Constructed from 304 stainless steel, these units integrate mechanical, electronic, and microprocessor technologies with various identification systems. They achieve intelligent access control and management through configurable identification devices, direction indicators, and extended LED counting displays.
Key Features
  • Configurable working methods via main panel controls
  • Anti-pinch and anti-collision safety features with automatic motor stop and reset
  • Anti-illegal entry and intrusion prevention with auto-close for reverse direction
  • Automatic gate closure when no valid signal is detected
  • Motor protection from external force collisions
  • Synchronization capability for multiple lanes
  • Auto-reset function with adjustable timing
  • Photocell-based reset and anti-pinch functions
  • Compatibility with access control, consumption, ESD, and e-ticket systems
  • Optional one-way or two-way control configurations
  • Remote control administration capabilities
  • Integrated LED lamp indicators
Technical Specifications
Framework Material 304 Grade Stainless Steel
Dimensions L1200 * W220 * H1000mm
Net Weight 80kg
Passage Width 650mm (One passage)
Passing Direction Single Directional / Bi-directional
Power Supply 100V~240V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 30W
Operation Temperature -20°C to +60°C
Operation Humidity 0 to 95% (No freeze)
Working Environment Indoor / Outdoor (Shelter)
Flow Rate 30 to 35 people per minute
LED Indicator Included
Infrared Sensor Included
Emergency Feature Automatic arm open when power off
Production Line Gallery
304 Grade Stainless Steel Swing Barrier Gate with 180 Degree Swing Angle and Bi-Directional Entry Control 304 Grade Stainless Steel Swing Barrier Gate with 180 Degree Swing Angle and Bi-Directional Entry Control 304 Grade Stainless Steel Swing Barrier Gate with 180 Degree Swing Angle and Bi-Directional Entry Control 304 Grade Stainless Steel Swing Barrier Gate with 180 Degree Swing Angle and Bi-Directional Entry Control
Our Advantages
  • Professional access control solutions
  • Competitive and reasonable pricing
  • Advanced manufacturing technology
  • High-quality construction and materials
  • Fast delivery and reliable service
  • Industry-leading reputation
  • Expert technical team
  • Wide range of industrial applications
