DC Brushless Motor Anti Pinch SS304 Swing Barrier Gate and Swing Arm Turnstile
DC Brushless Motor Anti Pinch SS304 Swing Barrier Gate and Swing Arm Turnstile
DC Brushless Motor Anti Pinch SS304 Swing Barrier Gate and Swing Arm Turnstile
DC Brushless Motor Anti Pinch SS304 Swing Barrier Gate and Swing Arm Turnstile
DC Brushless Motor Anti Pinch SS304 Swing Barrier Gate and Swing Arm Turnstile
DC Brushless Motor Anti Pinch SS304 Swing Barrier Gate and Swing Arm Turnstile
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SW05
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
1,000 pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Case material :
SS304/ 316 optional
Arm material :
Acrylic glass
Product life :
5 million times
Control signal :
Relay switch signal/Dry contact signal
Direction :
single or bi-direction
LED indicator :
included
Swing Arm Drive Angle :
180 degree
Drive motor :
DC brushless motor
Description
DC Brushless Swing Arm Turnstile Anti Pinch Acrylic Glass Arm SS304
Fast speed DC brushless motor pedestrian control automatic swing barrier gate
About the Swing Barrier Gate
The brush-less anti-collision swing barrier is an intelligent passage management equipment developed and produced by our company. It integrates the exquisite mechanical transmission, microprocessor control, voice and various reading and writing technologies. By configuring different reading and writing equipment, the intelligent control and management of the passage can be completed. The machine can realize the public channel's dissuade and access control.
Key Features

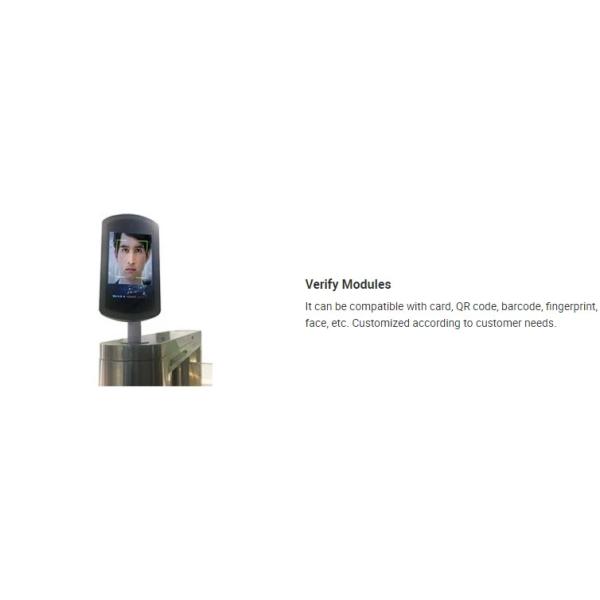

  • Compatible with various card readers: IC/ID card readers, bar codes, fingerprints, etc. (via dry contact signal)
  • Direction can be set as unidirectional or bidirectional
  • Can be connected to management computer for remote control and management
  • LED direction indicator (optional)
  • Gate automatically opens when power is off and closes when power is on, complying with fire safety requirements
  • Infrared photocell support for anti-pinch and reset function
  • Anti-breakthrough function - gate locks automatically until opening signal is received
  • Synchronization functions (for dual gate equipment)
  • Automatic reset function - cancels user authority if passage not completed within default 5 seconds
  • Gate can be set as normally open or normally closed
Technical Specifications
Framework Material304 Stainless Steel
DimensionL1200*W220*H1000mm
Net Weight80kg
Passage WidthMin. 800mm
Passing DirectionSingle directional / Bi-directional
Power Supply100V~240V, 50/60Hz
Operation Voltage24V DC
Power Consumption35W
Operation Temperature-20°C ~ +60°C
Operation Humidity0 ~ 95% (No freeze)
Working EnvironmentIndoor / Outdoor with Shelter
Flow RateAbout 30 people per minute
LED IndicatorYes
Infrared SensorYes
Emergency FeatureAutomatic arm open when power off

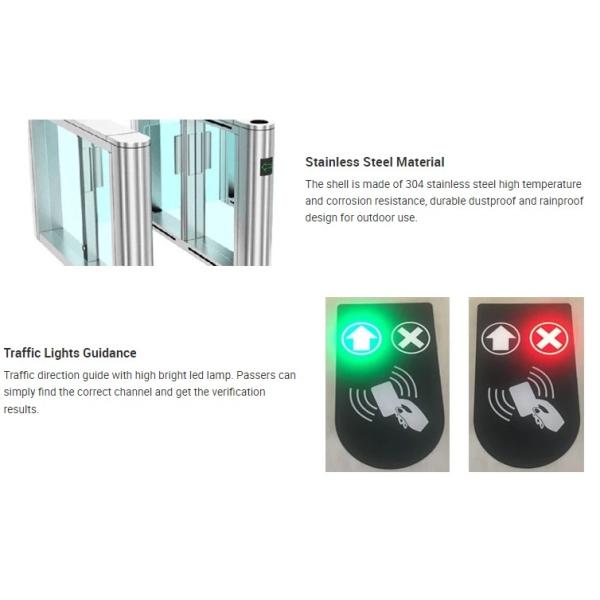

Product Images
DC Brushless Motor Anti Pinch SS304 Swing Barrier Gate and Swing Arm Turnstile DC Brushless Motor Anti Pinch SS304 Swing Barrier Gate and Swing Arm Turnstile
Our Service Commitment
  • Prompt reply - All inquiries receive response within 24 hours
  • Professional manufacturer and supplier - Factory visits welcome
  • OEM/ODM available - Custom colors, appearance, and functions
  • Reasonable & competitive pricing - Quality products at fair prices
  • Technical support - Comprehensive before and after sales assistance
  • Warranty policy - Minimum 12 months warranty with lifetime technical support
  • Fast delivery - 1-7 days for samples, 7-30 days for bulk orders
  • Flexible payment options - T/T, Western Union, Money Gram, etc.
  • Global shipping - Partnerships with DHL, FEDEX, TNT, UPS, EMS, and freight forwarders
