DC24V Waterproof Swing Barrier Gate with Biometric System and 30 Person/Minute Passing Speed
DC24V Waterproof Swing Barrier Gate with Biometric System and 30 Person/Minute Passing Speed
DC24V Waterproof Swing Barrier Gate with Biometric System and 30 Person/Minute Passing Speed
DC24V Waterproof Swing Barrier Gate with Biometric System and 30 Person/Minute Passing Speed
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SW03
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
3,000pcs per month
Delivery Time :
5-10 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Size Of housing :
1200*280*980mm
Material of housing :
304/316 stainless steel
Working temperature :
-20°C~60°C
Arm material :
Stainless steel
Passing speed :
30 person/minute
LED indicator :
Both direction
Description
DC24V Waterproof Swing Barrier Gate with IR Beam & Biometric System
Waterproof entrance control stainless steel turnstiles with biometric system, featuring 180-degree swing operation for reliable pedestrian flow management.
Swing barrier systems provide effective means for pedestrian flow control at entrances of production facilities, administrative buildings, company offices, schools, university campuses, stadiums, leisure and fitness facilities, amusement parks and zoos, and shopping outlets.
Key Features of Pedestrian Swing Gate
  • Bi-directional opening capability
  • Seamless integration with access control systems
  • Dry contact trigger opening with automatic timer-based closing
  • Programmable delay time via swing barrier control panel
  • Automatic opening during power failure for free access
  • Built-in clutch system disengages motor drive when obstructed
  • Optional safety IR beam for obstacle detection and auto-reverse
  • Customizable gate length to fit specific site requirements
  • Synchronized opening when multiple barriers are installed
  • Self-locking motor mechanism at open and close positions
DC24V Waterproof Swing Barrier Gate with Biometric System and 30 Person/Minute Passing Speed
Technical Specifications
Housing Material 304 Stainless Steel
Dimensions L1200 x W280 x H980mm
Arm Length 530mm (Standard), ≤750mm
Weight 80kg
Motor Power DC24V
Voltage AC220V±10%
Frequency 50Hz
MCBF 5 Million Cycles
Transit Speed 30 Persons/Minute
Operating Environment Indoor/Outdoor (Shelter)
Operating Temperature -20°C to 60°C
Operating Humidity ≤95% No Condensation

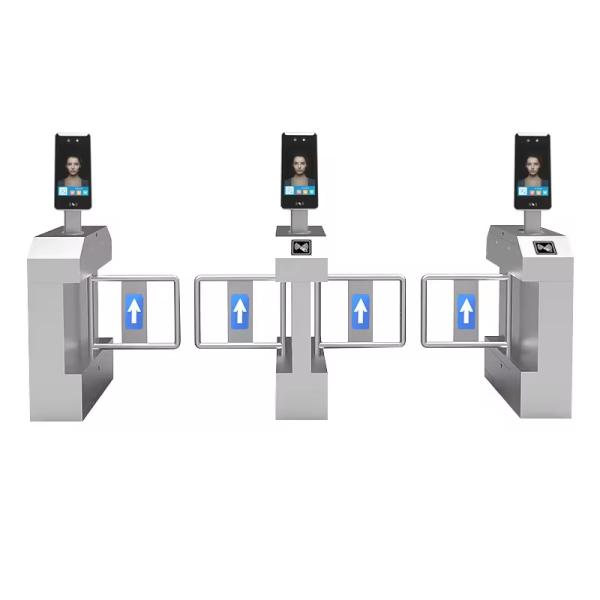

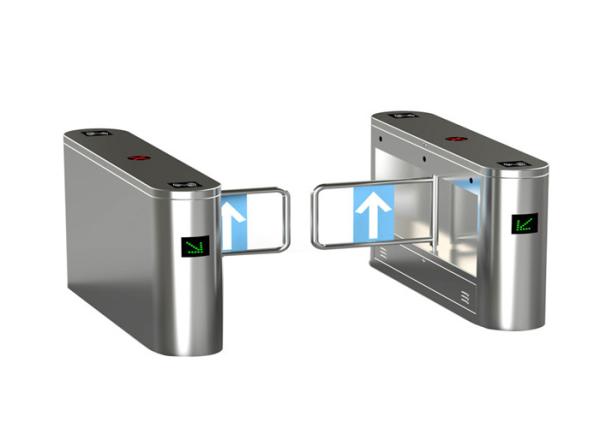

Product Photos
DC24V Waterproof Swing Barrier Gate with Biometric System and 30 Person/Minute Passing Speed DC24V Waterproof Swing Barrier Gate with Biometric System and 30 Person/Minute Passing Speed
