Stainless Steel Swing Barrier Gate with 900mm Arm and High Protection for Pedestrian Access Control
Stainless Steel Swing Barrier Gate with 900mm Arm and High Protection for Pedestrian Access Control
Stainless Steel Swing Barrier Gate with 900mm Arm and High Protection for Pedestrian Access Control
Stainless Steel Swing Barrier Gate with 900mm Arm and High Protection for Pedestrian Access Control
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-TB101
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
1000 pcs per month
Delivery Time :
3-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Motor voltage :
DC 24V, Brush
Arm length :
500 to 900mm
Arm material :
Stainless steel
Warranty :
1 year
Case material :
304 Stainless Steel
Case thickness :
1.5mm
Description
Cylinder Stainless Steel Swing Gate IP32 900mm Arm For Passenger
Automatic Stainless Steel Electric Swing Gate for Passenger Access Control
Our intelligent swing barrier represents a premium access control solution featuring precise craftsmanship, comprehensive functionality, and high reliability. Designed for high-class communities, intelligent buildings, hotels, subway stations, gyms, and other premium venues, this system integrates seamlessly with modern intelligent management systems to deliver sophisticated access control management.
Key Features

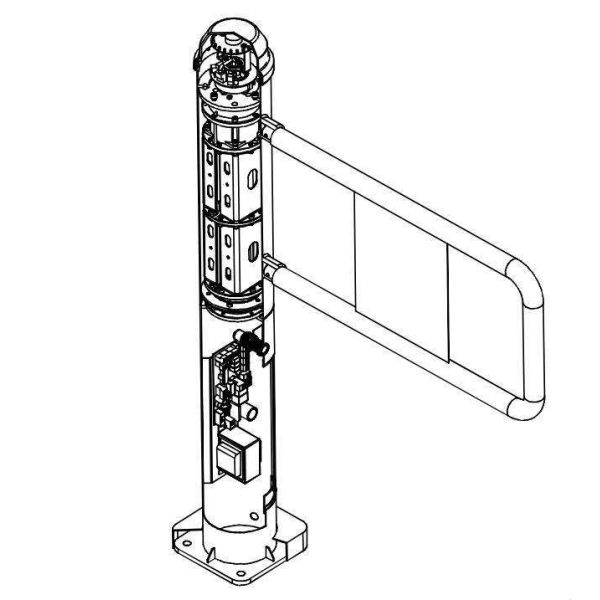

  • Compact electro-mechanical design with unique drive and self-lock mechanism
  • Automatic malfunction detection system
  • Input interface for dry contact and switch signal connection
  • Adjustable auto-delay closing functionality
  • Infrared photocells for safe access control
  • Alarm system for unauthorized access and reverse passenger flow
  • Anti-reversing passing protection
  • Automatic closing when powered on
  • Automatic opening and free access during power outages
  • Adjustable access directions
  • Emergency interface availability
  • Traffic light indicators for passenger guidance
Technical Specifications
Housing Dimension φ114.3 * 990mm
Arm Length 500-900mm
Motor Material Steel and aluminum alloy
Voltage 220V±15% or 110V±15%
Motor Type Brush 24V DC motor
Input Interface Dry contact
Opening Time 1 second
Protection Grade IP32
Working Temperature -25°C to +50°C

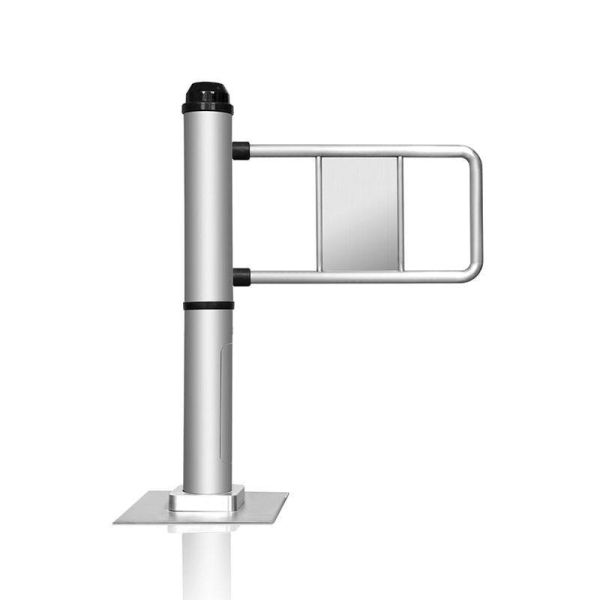

Product Images
Stainless Steel Swing Barrier Gate with 900mm Arm and High Protection for Pedestrian Access Control
