Durable 304 Stainless Steel Swing Turnstile with 900mm Arm Length and DC 24V Motor
Durable 304 Stainless Steel Swing Turnstile with 900mm Arm Length and DC 24V Motor
Durable 304 Stainless Steel Swing Turnstile with 900mm Arm Length and DC 24V Motor
Durable 304 Stainless Steel Swing Turnstile with 900mm Arm Length and DC 24V Motor
Specifications
Brand Name :
SINOMATIC
Model Number :
SN-SW02
Certification :
CE/ ISO
Place of Origin :
Shenzhen, China.
MOQ :
Sample order accepted
Price :
negotiable
Payment Terms :
T/T,Western Union,,L/C,D/A,D/P
Supply Ability :
1000 pcs per month
Delivery Time :
3-7 working days after payment received
Packaging Details :
Carton/Plywood box/Pallet
Motor voltage :
DC 24V, Brush
Arm length :
Max. 900mm
Arm material :
304 Stainless steel
Warranty :
1 year
Case material :
304 Stainless Steel
Case thickness :
1.2mm
Description

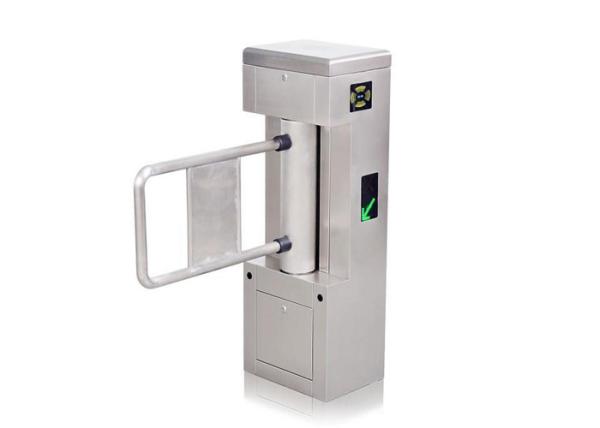

Durable Vertical Type Pedestrian Swing Turnstile With Max 900mm Arm
Durable Vertical Type Pedestrian Swing Gate With Max 900mm Arm
Pedestrian Swing Gate Introduction
Our intelligent swing barrier represents a premium access control solution featuring precise craftsmanship, comprehensive functionality, and exceptional reliability. Designed for high-end applications including luxury communities, intelligent buildings, hotels, subway stations, gyms, and other sophisticated venues.
This swing gate seamlessly integrates with modern intelligent management systems to deliver comprehensive access control management capabilities.
Pedestrian Swing Gate Features
  • Compact electro-mechanical design with unique drive and self-lock mechanism
  • Automatic malfunction detection system
  • Input interface for dry contact and switch signal connection
  • Adjustable auto-delay closing functionality
  • Infrared photocells for enhanced safety access
  • Alarm system for unauthorized access and reverse flow detection
  • Anti-reversing passing protection
  • Automatic closing when powered on
  • Automatic opening and free access during power outages
  • Adjustable access directions
  • Emergency interface availability
  • Traffic light indicators for passenger access guidance
Pedestrian Swing Gate Specifications
Housing Dimension 370×280×1000mm
Arm Length 500-900mm
Motor Material Steel and aluminum alloy
Voltage 220V±15% or 110V±15%
Motor Type Brush 24V DC motor
Input Interface Dry contact
Opening Time 1 second
Protection Grade IP44
Working Temperature -25°C to +50°C
