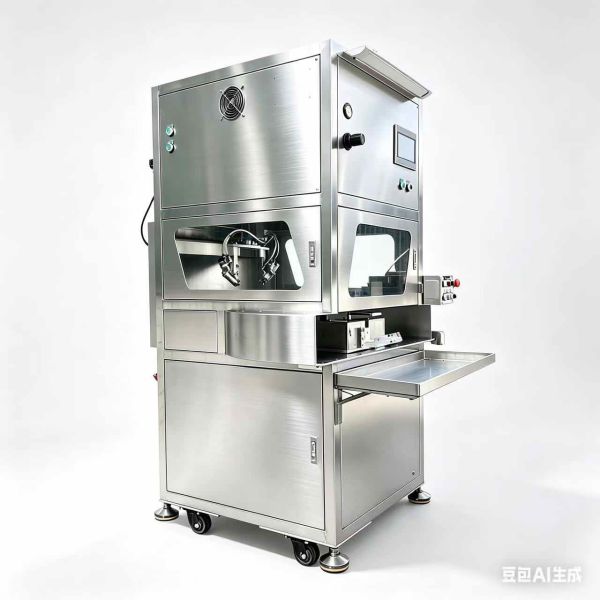

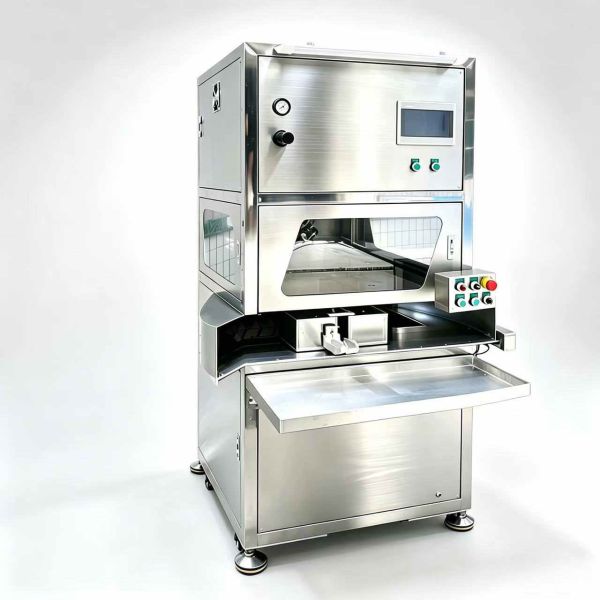

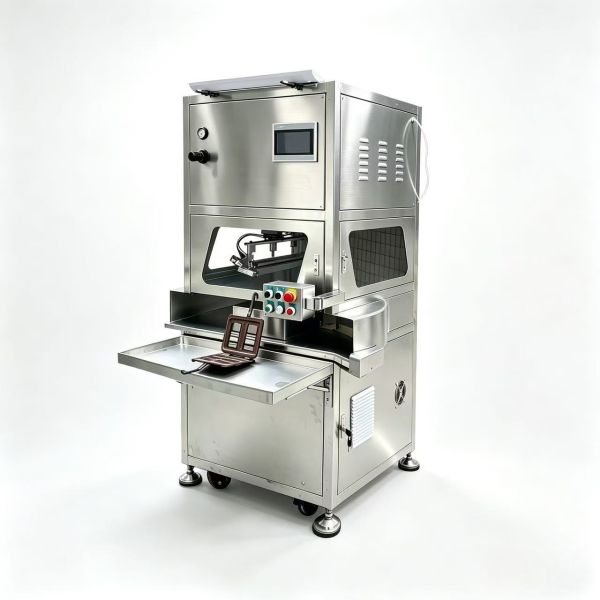

Automatic Spray Painting Machine, Coating Equipment for Toy Color Ball Surface Spraying Treatment
Automatic Spray Painting Machine, Coating Equipment for Toy Color Ball Surface Spraying Treatment
Automatic Spray Painting Machine, Coating Equipment for Toy Color Ball Surface Spraying Treatment
Automatic Spray Painting Machine, Coating Equipment for Toy Color Ball Surface Spraying Treatment
Automatic Spray Painting Machine, Coating Equipment for Toy Color Ball Surface Spraying Treatment
Automatic Spray Painting Machine, Coating Equipment for Toy Color Ball Surface Spraying Treatment
Automatic Spray Painting Machine, Coating Equipment for Toy Color Ball Surface Spraying Treatment
Automatic Spray Painting Machine, Coating Equipment for Toy Color Ball Surface Spraying Treatment
Automatic Spray Painting Machine, Coating Equipment for Toy Color Ball Surface Spraying Treatment
Automatic Spray Painting Machine, Coating Equipment for Toy Color Ball Surface Spraying Treatment
Automatic Spray Painting Machine, Coating Equipment for Toy Color Ball Surface Spraying Treatment
Automatic Spray Painting Machine, Coating Equipment for Toy Color Ball Surface Spraying Treatment
Automatic Spray Painting Machine, Coating Equipment for Toy Color Ball Surface Spraying Treatment
Automatic Spray Painting Machine, Coating Equipment for Toy Color Ball Surface Spraying Treatment
Automatic Spray Painting Machine, Coating Equipment for Toy Color Ball Surface Spraying Treatment
Automatic Spray Painting Machine, Coating Equipment for Toy Color Ball Surface Spraying Treatment
Specifications
Material :
S.Steel / Alu / Steel
Gun / Nozzle :
WA101 / 0.5mm
Axes :
X(L/R) / Y(F/B) / Z(U/D) / R(Gun Rotate) / T1(A-Station) / T2(B-Station) / W(Base Rotate)
Brand Name :
Mansheng
Price :
6882
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
MOQ :
1
Dimension :
1245 x 1070 x 1764mm (Frame: 825mm)
Comm Port :
USB
Exhaust :
Round 200mm
Model Number :
200X7A
Effective Stroke :
290 x 240 x 160mm
Air Pressure :
0.4-0.6MPa
Drive :
7-Axis Closed-Loop Stepper
Key Parts :
Leadshine Motor / HIWIN Guide / NSK Bearing
Accuracy :
0.05mm
Weight :
230KG
Control :
Touch Screen
Packaging Details :
WOODEN BOX
Spray Mode :
360 Rotation + Reciprocating (2 guns)
Voltage :
220VAC / 50Hz
Place of Origin :
China, Dongguan
Program :
10,000+
Power :
0.75KW/H
Spray Range :
200 x 200mm
Description

Product Specifications

ParameterSpecification
Model200X7A Auto Spray Machine
MaterialS.Steel / Alu / Steel
Weight230KG
Gun / NozzleWA101 / 0.5mm
Dimension1245 x 1070 x 1764mm (Frame: 825mm)
Effective Stroke290 x 240 x 160mm
Spray Range200 x 200mm
Spray Mode360 Rotation + Reciprocating (2 guns)
Drive7-Axis Closed-Loop Stepper
AxesX(Left/Right) / Y(Front/Back) / Z(Up/Down) / R(Gun Rotate) / T1(A-Station) / T2(B-Station) / W(Base Rotate)
Accuracy0.05mm
ControlTouch Screen
Program10,000+
Comm PortUSB
Key PartsLeadshine Motor / HIWIN Guide / NSK Bearing
Voltage220VAC / 50Hz
Air Pressure0.4-0.6MPa
ExhaustRound 200mm
Power0.75KW/H

Key Selling Points

  • 7-Axis High Precision Spray System: 0.05mm positioning accuracy with closed-loop stepper drive, ensures consistent, defect-free coating on complex parts.
  • Dual Independent Spray Guns: 2x WA101 spray guns (0.5mm nozzle) with separate oil output control, supports 360 rotation + reciprocating spraying for full coverage.
  • Wide Application Range: 200 x 200mm spray range, dual-station rotation, and 10,000+ programmable sequences, ideal for auto parts, 3C electronics, metal, glass and toys.
  • Durable Industrial Build: Features HIWIN linear guides, NSK bearings, and brand-name components, stable 220VAC/50Hz operation with 0.4-0.6MPa air pressure.
  • Energy-Saving and Easy to Use: Only 0.75KW/H power consumption, touch screen control with USB port, 200mm round exhaust for clean working conditions.
