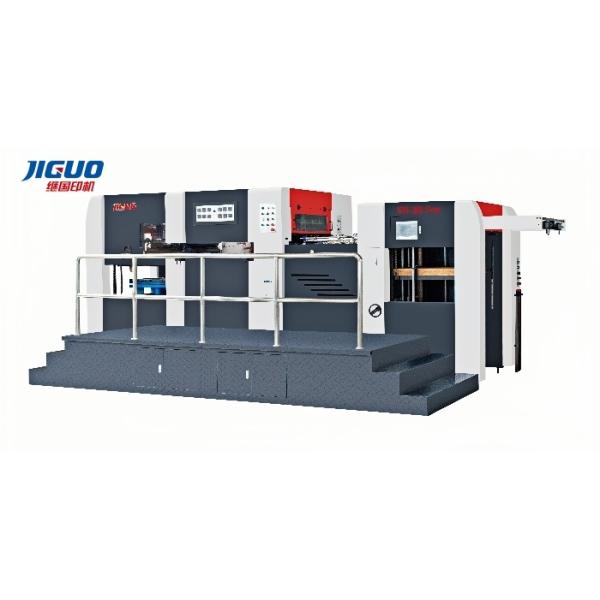

Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
Specifications
Brand Name :
JIUGO
Model Number :
MYR-1060Deep
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
$130000
Payment Terms :
T/T,L/C,MoneyGram
Supply Ability :
20
Delivery Time :
30
Packaging Details :
Film winding
Description
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
Product Overview

MYR-1060Deep automatic hot stamping and die cutting machine is key equipment for printing finishing such as die cut, crease and embossing. Featuring electrical components and driving elements of internationally known brands to ensure die cutting precision and reliability.

This machine applies European CE safety certificate standards, with innovations in frame and structure design for stable, safe, and convenient operation. Ideal for die-cutting, creasing and cold embossing stripping of carton boxes, labels, and advanced prints including cigarette cases, wine boxes, gift boxes, appliance boxes, and cosmetic boxes.

Technical Specifications
Model MYR-1060Deep
Max. Paper Size 1070*770mm
Min. Paper Size 400*360mm
Max. Cutting Size 1040*750mm
Max. Die Cutting Speed 7500s/h
Min. Gripper Edge 8mm
Sheet Thickness 0.1-4mm
Die-cutting Accuracy ±0.1mm
Max. Pressure 900Tons
Total Power 62 Kw
Net Weight 20 Tons
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
System Components
Paper Feeding Unit
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
  • Non-stop high-speed paper feeding section with 9 suction nozzles for different paper thicknesses
  • Professional designed feeder made of lightweight aluminum alloy with anode treatment
  • Horizontal paper parting and blowing device
  • Main and secondary stacking paper table operates without stopping
  • Pre-stack device with rails for accurate and easy loading
Die-cutting Unit
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
  • Pneumatic plate locking unit for firm and fast upper frame fixation
  • German imported paper holding rack chain for long service life and stable precision
  • Taiwan intermittent mechanism for improved speed and precision
  • Torque limiter with overload protection for safe operation
  • Italian pneumatic brake and clutch complying with European standards
Delivery Unit
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
  • Efficient collection of die-cut materials
  • High-quality stacking of finished products
  • Maintains production continuity
  • Critical for overall productivity enhancement
Machine Operation
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
Global Presence

SINO JIGUO MACHINERY CO., LTD. products are spread across over 70 countries worldwide.

Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
Manufacturing Facilities
Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging Automatic Hot Embossing And Die Cutting Machine 900 Ton For Printing And Packaging
