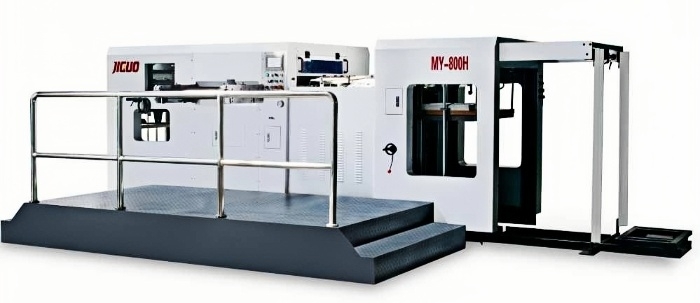

JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box
JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box
JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box
JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box
JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box
JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box
JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box
JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box
JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box
JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box
Specifications
Brand Name :
JIGUO
Model Number :
MY-800H
Certification :
CE
Place of Origin :
Hebei
MOQ :
1
Price :
$56000-$60000
Payment Terms :
L/C,T/T,MoneyGram
Supply Ability :
25
Delivery Time :
30
Packaging Details :
Film winding
Description
JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box
Product Description
The JIGUO MY-800H Automatic Die Cutting & Creasing Machine integrates high-precision die cutting and creasing in one workflow. Boasting a servo-driven system with ±0.1mm positioning accuracy, it handles paper weights Corrugated board: ≤4mm Cardboard:0.1-1.5mm
and formats up to 800×600mm. Equipped with intelligent pressure adjustment and jam-detection sensors, it ensures stable operation at 8,000 sheets/hour, suitable for packaging boxes, gift boxes, and printed matter processing in printing and packaging industries.

JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box


Technical Specifications
Model MY-800H
Max. Paper Size 810*610mm
Min. Paper Size 320*240mm
Max. Cutting Size 780*590mm
Max. Die Cutting Speed 8500 sheets/hour
Sheet Thickness Corrugated board: ≤4mm
Cardboard: 0.1-1.5mm
Die-cutting Accuracy ±0.1mm
Total Power 14.5 Kw
Net Weight 9.5 Tons
Overall Dimensions 5600*3400*2000 mm
Die cutter machine details and functions
Paper Feeding Unit
JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box

- Smooth & Stable Feeding: Adopts precision feeding mechanism to realize continuous, uniform paper conveyance, ensuring no jamming or misalignment for various paper types (coated paper, offset paper, etc.).
- High Precision Positioning: Equipped with servo control system, achieving accurate paper positioning to match subsequent processing procedures (printing, cutting, etc.) with ±0.1mm positioning error.
- Adjustable Compatibility: Supports quick adjustment of paper width and thickness, adapting to paper sizes from A4 to large-format sheets, meeting diverse production needs.
- Intelligent Protection: Features paper shortage detection and overload protection functions, automatically stopping operation and alerting to avoid equipment damage and production interruptions.
- Efficient Transmission: High-speed feeding design with adjustable speed (0-140 sheets/min), improving overall production efficiency while maintaining stable performance.

Paper Conveying Unit
JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box

- Structure: Composed of a support frame, conveying rollers, guide rails, tension control components, and anti-deviation devices, with a smooth and rigid connection between the feeding and die-cutting units.
- Function: Transports materials (e.g., paper, film) stably from the previous process to the die-cutting station, maintains consistent material tension to prevent wrinkling/deviation, and ensures precise alignment for accurate die-cutting.

Die-cutting Unit
JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box
  • High pressure capability for thick materials and complex processes
  • ±0.1mm accuracy with premium components and servo control
  • Touchscreen-controlled automated operation
  • Durable construction with special steel materials
  • Function: Implements precise die-cutting of materials (e.g., paper, cardboard) into preset shapes via the die-cutting plate, forms clear creases through creasing rules for easy folding, and adjusts pressure/position to match different material thicknesses and processing requirements.
Delivery Unit
JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box
  • Non-stop delivery mechanism for continuous operation
  • Precision delivery with suction and flattening systems
  • Flexible adjustment for various paper sizes
  • German-imported conveyor belt for stable high-speed operation
  • - Structure: Comprises a delivery conveyor, stacking platform, aligning baffles, speed synchronization mechanism, anti-scratch rollers, and height-adjustable supports.
    - Function: Receives finished materials after die-cutting/creasing, conveys them smoothly to the stacking area, aligns sheets neatly via baffles, maintains consistent speed with the die-cutting unit to avoid damage, and enables orderly stacking for convenient subsequent handling.
Product Gallery
JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box
Our Partners

JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box

Workshop and Exhibition

JIGUO MY-800H All-in-One Automatic Die Cutting And Creasing Machine For Adhesives And Packaging Box
