10000L Accumulator Blow Molding Machine 3-6 Layer Co-Extrusion for Water Tanks
10000L Accumulator Blow Molding Machine 3-6 Layer Co-Extrusion for Water Tanks
Specifications
Brand Name :
XINHENGDA
Model Number :
10000L Blowing Mould Machine
Place of Origin :
Shibu Industrial Park Changyi City Shandong Province China
MOQ :
1
Price :
Contact me
Payment Terms :
L/C,D/A,T/T,Western Union,D/P
Supply Ability :
90+
Delivery Time :
Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Productionmethod :
Blow molding
Surfacefinish :
Smooth or textured
Dimensions :
Custom sizes available
Productname :
Large-scale Plastic Blow
Applications :
Storage tanks, containers, industrial use
Coloroptions :
Customizable
Description

10000L Accumulator Blow Molding Machine 3-6 Layer Co-Extrusion for Water Tanks

Product Introduction

The 10000L water tank blow moulding machine is a high-capacity, custom industrial blow molding equipment independently developed and produced by a professional Shandong manufacturer with 30 years of deep cultivation in large-scale plastic blow molding machinery industry. This equipment is specially tailored for the mass production of large-capacity plastic water tanks and hollow plastic containers, solving the production bottlenecks of low efficiency and unstable molding quality of large tank products in the market.

Tabular Parameters

Parameter Details
Plastic Processed HDPE, PE
Clamping Force 2000 KN
Automation Type Automatic
Voltage 380-415V
Key Selling Point Multilayer
Warranty 1 Year
No. of Screw 7
Core Components PLC, Frequency Converter, Bearing Guard, Motor, Gear, Pump
Video Quality Inspection Provided
Machinery Test Report Provided
Place of Origin Shandong, China
Power 520 kW
Equipment Weight 50 Ton
Equipment Dimension 1158 m
Screw L/D Ratio 30
Screw Diameter 120 mm
Screw Heating Power 80 KW
Extruder Motor Power 90 KW
Mold Station Length 1900 mm
Mold Station Size 2100 mm
Air Pressure 0.65 MPa
Air Consumption 3 m³/min
Die Head Heating Power 100 KW
Automatic Function Yes
Single Unit Weight 50 TON
Packaging Method According to customer requirements (container, etc.)
Port of Dispatch QINGDAO
Annual Supply Capacity 35 Units

Product Core Functions

This upgraded 10000L large blow molding machine is mainly used for the standardized production of ultra-large capacity plastic water tanks and industrial hollow containers. It supports precise adjustable control of product wall thickness and overall weight, with an adjustable wall thickness range of 1mm-10mm. The equipment features high molding accuracy, uniform product thickness and no deformation, which can meet the customized production requirements of different specifications of large plastic containers for civil and industrial use.

Product Competitive Advantages

  • Labor Cost Saving: The highly automated production line realizes minimal manual intervention, only 2 professional workers are needed to complete the whole line operation, greatly reducing long-term labor input and production management costs for enterprises.
  • Systematic Training Support: The factory provides 2 weeks of free on-site professional training for equipment operation, parameter debugging, daily maintenance and fault elimination, helping customers' workers master operation skills efficiently and put the equipment into production quickly.
  • Wide Material Adaptability: Optimized extrusion and molding structure, perfectly compatible with HDPE, PE and other common plastic raw materials, adaptable to different raw material procurement standards and production needs of different regions.
  • Strict Quality Control System: The whole production process of the equipment supports video tracking and recording, and complete machinery performance test reports and quality certification documents are provided before delivery, ensuring each equipment meets international export standards.
  • High-Quality Branded Core Parts: Key components such as PLC control system, frequency converter, motor and hydraulic pump adopt well-known brand accessories, with stable performance, low failure rate and long service life, reducing equipment maintenance costs.
  • Rich Industry Manufacturing Experience: Backed by 30 years of professional R&D and manufacturing experience in large-scale blow molding equipment, the equipment structure and process are continuously optimized, with mature technology and reliable quality, serving global industrial plastic production enterprises.


Product Distinctive Features

  • Full Automatic Intelligent Operation: Adopts integrated PLC intelligent control system, one-key start-up, automatic completion of extrusion, mold closing, blow molding, cooling, demolding and other processes, stable operation and high production efficiency.
  • Multi-Layer Blow Molding Technology: Supports multi-layer synchronous blow molding process, which can improve the compression resistance, corrosion resistance and sealing performance of large water tank products, and enhance product market competitiveness.
  • Flexible Parameter Customization: Flexible adjustment of product weight, wall thickness and molding parameters is available, supporting customized production of large containers of different specifications to meet personalized market demands.
  • Premium Core Configuration & High Stability: Equipped with high-power and high-precision core components, the equipment runs stably for a long time, with low vibration and low noise, suitable for long-time continuous industrial production.


Application Scenarios

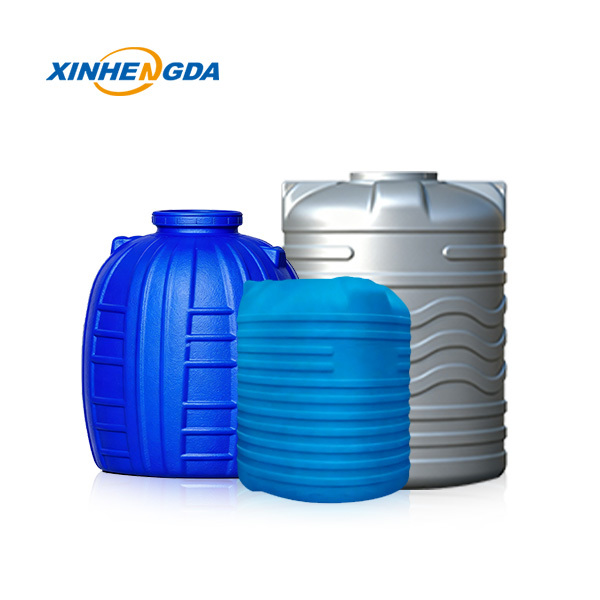

This 10000L high-capacity blow molding machine is mainly applicable to the production of large plastic water tanks and industrial containers ranging from 500L to 10000L. In addition to water tank products, it can also efficiently produce plastic pallets, environmental waste bins, road isolation barriers, plastic septic tanks and other large hollow plastic products, with a wide range of product applicability.
The equipment has passed international quality inspection standards, and its main sales markets cover Southeast Asia, South America, Europe and other regions. It is widely recognized by downstream manufacturers of plastic products for its high efficiency, stability and low energy consumption, and is a preferred equipment for large-scale plastic hollow product production lines.

10000L Accumulator Blow Molding Machine 3-6 Layer Co-Extrusion for Water Tanks

10000L Accumulator Blow Molding Machine 3-6 Layer Co-Extrusion for Water Tanks

10000L Accumulator Blow Molding Machine 3-6 Layer Co-Extrusion for Water Tanks
