Specifications
Brand Name :
XINHENGDA
Model Number :
1000L 3 Layer
Place of Origin :
Shibu Industrial Park Changyi City Shandong Province China
MOQ :
1
Price :
Contact me
Payment Terms :
L/C,D/A,T/T,Western Union,D/P
Supply Ability :
90+
Delivery Time :
Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Surfacefinish :
Smooth or textured
Productname :
Large-scale Plastic Blow
Dimensions :
Custom sizes available
Productionmethod :
Blow molding
Applications :
Storage tanks, containers, industrial use
Coloroptions :
Customizable
Description

1000L 5-Layer Full-Automatic Industrial-Grade Blow Molding Machine

Product Introduction

This is a Plastic Water Tank Blow Molding Machine produced in Shandong, China. It adopts the extrusion blow moulding process, uses HDPE as the raw material, and operates fully automatically to produce plastic water tanks with a multi-layer structure.

Tabular Parameters

plastic processed HDPE, PE, HDPE Clamping Force (kN) 1000
automation Automatic voltage 380-415V
key selling points Multilayer warranty 1 Year
plc brand core components PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
machinery test report Provided video outgoing-inspection Provided
output (kg/h) 350 kg/h place of origin Shandong, China
power (kw) 400 weight (t) 40
dimension(lwh) 786.3 Screw L/D Ratio 30
screw diameter (mm) 100 mm screw heating power(kw) 60 kW
extruder motor power(kw) 75 kW mold platen size(width)(mm) 1500 mm
mold platen size(height)(mm) 1700 mm air pressure(mpa) 0.65 MPa
air comsumption(m³/min) 2 m³/min die head heating power(kw) 65 kW
Blow Moulding Type Extrusion Blow Moulding Automatic yes
After-sales Service Provided Engineers available to service machinery overseas Application water tank
Raw material HDPE Name Plastic water tank blow molding Machine
Weight 44TON Clamping Force 1000KN
Power 355KW - -

Product Functions

1.Full-automatic operation: Equipped with adjustable robot for automatic product pick-up.
2. Precision control: Moog 100-point parison thickness controller ensures uniform wall thickness.
3. Intelligent heating: Peak-shifting progressive heating reduces energy consumption.
4. Versatile production: Supports 1-4 layer products; adaptable to 200-1000L tank production.

Product Advantages

1.Equipped with PLC for high control precision

2.Reliable configuration of core components ensures equipment stability

3.Provides test reports and outgoing inspection videos for traceable quality

4.Offers after-sales support from overseas engineers to solve subsequent operation and maintenance issues

5.Has an output of 350 kg/h to meet batch production needs

Product Features

1.High degree of automation for easy operation

2.Capable of producing multi-layer structure products (key selling point)

3.Branded core components ( PLC)

4.Comprehensive inspection and warranty support

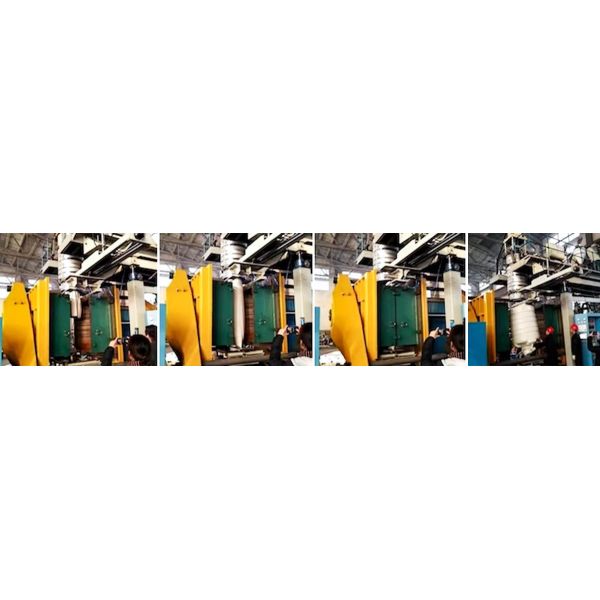

Production process

1000L 5 Layer Extrusion Multi Layer Blow Moulding Machine Full Automatic Industrial Grade

Application Scenarios

Specialized in mass production of 200-1000L HDPE water tanks (vertical/horizontal). Suitable for industries including: Civil use: Domestic water storage, rainwater harvesting. Agriculture: Irrigation water storage, pesticide/fertilizer storage. Industry: Chemical liquid storage, industrial water reserve. Commercial use: Water supply for hotels, markets, and public facilities.
