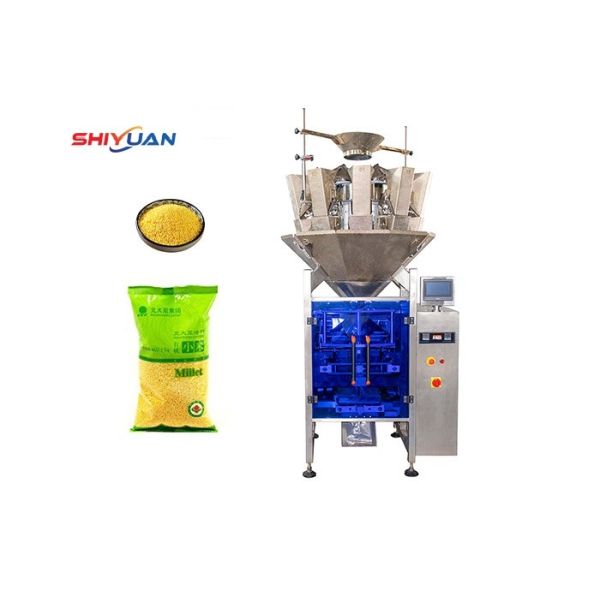

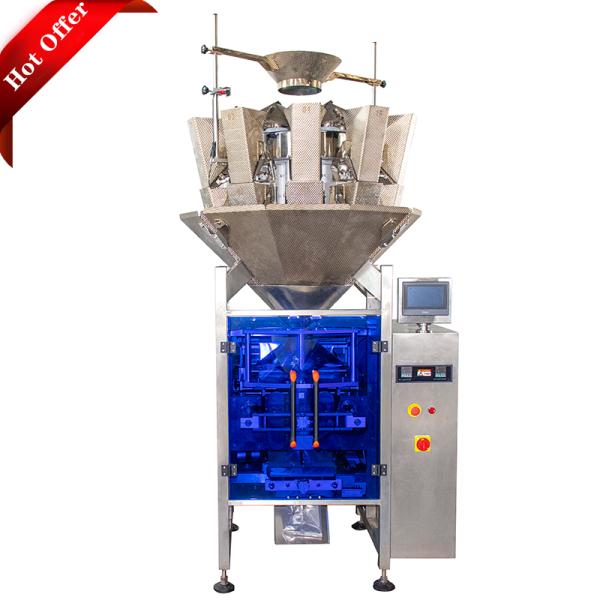

1.6L Hopper OatmealA Packaging Machine 10 Bucket 100g
1.6L Hopper OatmealA Packaging Machine 10 Bucket 100g
1.6L Hopper OatmealA Packaging Machine 10 Bucket 100g
1.6L Hopper OatmealA Packaging Machine 10 Bucket 100g
Specifications
Packaging Details :
1740*1300*2600mm
Delivery Time :
15-25/day
Model Number :
SLIV-420
Certification :
CE
Scope of application :
Granule
Measuring range :
2500ml (subject to actual materials)
Bag size :
(W): width 100-200mm(W)mm length 300mm
Sealing category :
Back seal, gusset pillow bag
Machine size :
1265(L)x1060(W)x1600(H)mm
Price :
Negotiable
Payment Terms :
D/A,D/P,T/T,Western Union,
Name :
Granule Packing Machine
MOQ :
Negotiable
Place of Origin :
Foshan
Supply Ability :
100 Set/Month
Brand Name :
Shiyuan
Measurement method :
Standard 10-bucket combination electronic scale, 1.6L hopper
Packing speed :
20-60 bags/minute
Maximum width of roll film :
420mm
Total power :
3kw
Machine weight :
600kg
Description

Oatmeal Packaging Machine 1-100g

Main advantages


1. The transverse seal guide axle of the machine is made of bearing steel material refined by special technology, which is super wear-resistant. High accuracy, low noise, easy maintenance.
2. Copper sleeve with sealing ring, oil will not leak, clean and hygienic. All parts of the contact packaging materials are made of stainless steel, which is hygienic and pollution-free.
3. Advanced design of vibration blanking control circuit. Vibration force of 0-9 gears can be adjusted. The noise is obviously less than that of ordinary models. The cutting material is more ideal.

Features


1. 8-station design, can automatically complete a series of processes such as bag taking, bag opening, metering, blanking, sealing, etc.
2. High quality and performance, the frame is made of 1.5mm thickness 304# stainless steel.
3. Intelligent PLC control, fast and stable operation of the machine.
4. The touch screen is used to set packaging parameters, supports multiple languages, and the operation is simple and easy to understand.
5. With electric eye detection function, automatic stop operation without bag.
6. The host adopts a new frame design, which occupies a small area and is easy to detect and maintain.
7. Independent temperature PID controller.

Granule Packaging Machine Specification

Packaging Materials OPP / CPP OPP / PE NILO / PE PE
Measurement method Standard 10 - bucket combination electronic scale, 1.6L hopper
Scope of application Granule
Measuring range 2500ml ( subject to actual materials )
Packing speed 20 - 60 bags / minute
Maximum width of roll film 420mm
Bag size (W) : width 100 - 200mm( W ) mm length 300mm
Sealing category Back seal , gusset pillow bag
Total power 3kw
Power supply 220V or 380V50 - 60HZ
Air pressure and air consumption 0.65Mpa 0.8m3 / min
Machine weight 600kg
Machine size 1265 ( L ) x 1060 ( W ) x 1600 ( H ) mm
Wooden box size 1740 * 1300 * 2600
