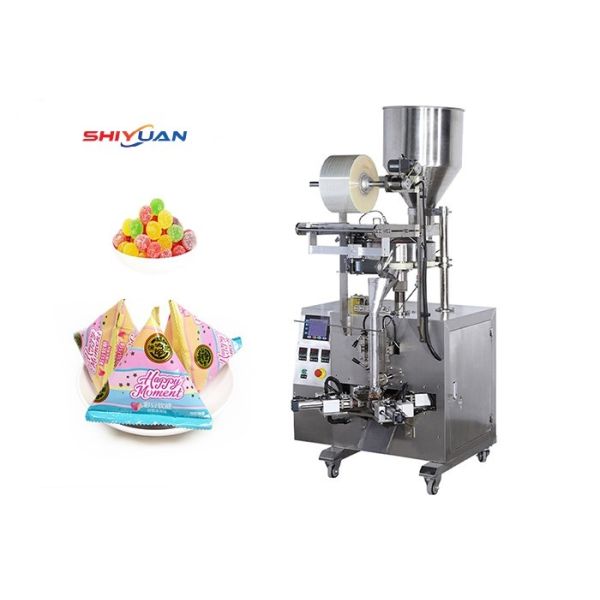

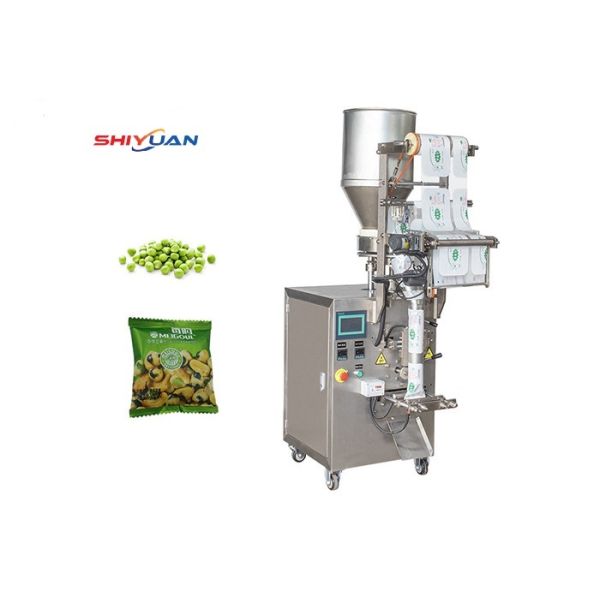

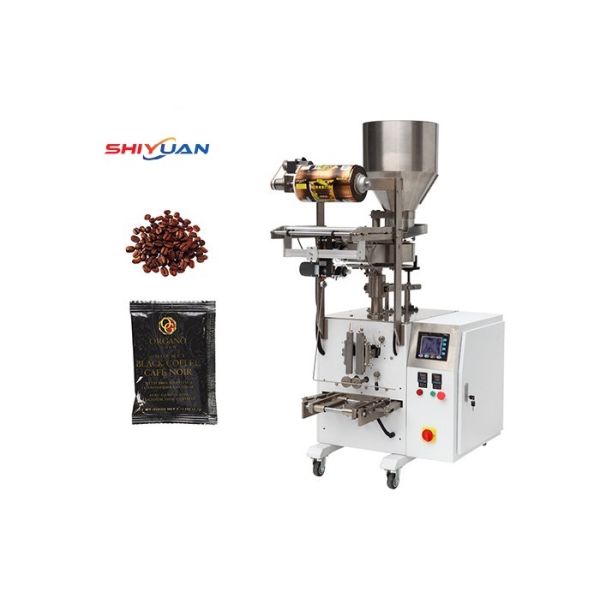

Vertical Granule Packaging Machine For Cashew Nut Coffee Beans Rice Sugar
Vertical Granule Packaging Machine For Cashew Nut Coffee Beans Rice Sugar
Vertical Granule Packaging Machine For Cashew Nut Coffee Beans Rice Sugar
Vertical Granule Packaging Machine For Cashew Nut Coffee Beans Rice Sugar
Vertical Granule Packaging Machine For Cashew Nut Coffee Beans Rice Sugar
Vertical Granule Packaging Machine For Cashew Nut Coffee Beans Rice Sugar
Specifications
Brand Name :
Shiyuan
Model Number :
SLIV-380B3K
Certification :
CE
Place of Origin :
Foshan
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100 Set/Month
Delivery Time :
15-25/day
Packaging Details :
1260*940*2350mm
Measurement method :
Measuring cup measurement
Measuring range :
Granules ( 10 - 600ml ) are subject to actual materials
Packing speed :
20-60 bags/minute
Maximum width of roll film :
320mm
Bag size :
( W ) : 14-150mm ( L ) 50-200mm
Sealing category :
Three side seal
Total power :
2.6kw
Power supply :
220V or 380V50 - 60HZ
Machine weight :
250kg
Machine size :
L860 * W700 * H1700mm
Name :
Granule Packing Machine
Description

Wholesale Vertical Granule Packaging Machine For Cashew Nut Coffee Beans Rice Sugar

Name
Coffee Beans Granule Packaging Machine
Model
DLP-380B
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Food Shop, Other
Weight (KG)
450
Automatic Grade
Automatic
Power
220V 50/60hz 2.5KW
Place of Origin
CHINA GUANG DONG
Brand Name
DACHUAN MACHINE
Dimension(L*W*H)
1100*800*2150MM
Filmroll diameter
Max:320MM
Film width
180-380MM
Bag length
60-280MM
Bag width
60-180MM
Range of measurement
50-750ML
Warranty
1 Year
Key Selling Points
High-accuracy
Video outgoing-inspection
Provided
Packing speed
35-70bag/min(According to the products conditions)
Certification
CE

Applications


Application all kinds of granules such as coffee beans, frozen fruits, dry food, cookies, cereals, all kinds of nuts, hard candy, beef jerky, pork jerky, pet food, BBQ charcoal, activated charcoal etc.

Function and characteristics


1.The whole body 304 stainless steel high-precision structure, rust and durable, easy operation and maintenance.
2.PLC, touch screen, stepper motor control, bag length set convenient and accurate.
3.Frequency control, bag more convenient and smooth, simple and quick, save time and film.
4.High sensitivity photoelectric eye color mark tracking, digital input sealing and cutting position, so that the sealing and cutting position more accurate.
5.Temperature independent PID control, better adapt to a variety of packaging materials.
6.From filling, bagging, printing date, inflatable (exhaust) one-time completion.
7.Drive system is simple, more reliable, more convenient maintenance.
8.All controls are implemented by software to facilitate functional adjustment and technology upgrades, never lagging behind.

Granule Packaging Machine Specification

Packaging Materials OPP / PE NILO / PE
Measurement method Measuring cup measurement
Measuring range Granules ( 10 - 600ml ) are subject to actual materials
Packing speed 20 - 60 bags / minute
Maximum width of roll film 320mm
Bag size ( W ) : 14 - 150mm( L )50 - 200mm
Sealing category Three side seal
Total power 2.6kw
power supply 220V or 380V50 - 60HZ
Machine weight 250kg
Machine size L860 x W700 x H1700mm
