Fully Automatic Crayfish Apron Making Folding Packing All-In-One Production & Packaging Line
Fully Automatic Crayfish Apron Making Folding Packing All-In-One Production & Packaging Line
Specifications
Supply Ability :
50 set /month
Product Name :
Disposable PE Apron Making Packing Machine
Model Number :
SN-900
Transmission Mode :
Servo motor, guide rail
Raw material Dia :
860-1200mm width
MOQ :
1 set
Delivery Time :
20-25 working days
Functions :
Unwinding, Cutting, Folding, Bag Forming, Packing
Payment Terms :
T/T
Applicable industries :
Crayfish Apron,Cleaning Apron etc PE apron
Advantages :
Making, folding and packing all in one machine
Price :
EXW US$17900-20950/set
Appearance :
Stainless steel
Certification :
CE
Place of Origin :
China
Packaging Details :
Exported wooden case
Brand Name :
Sayok
Control System :
HMI + PLC programming control
Description

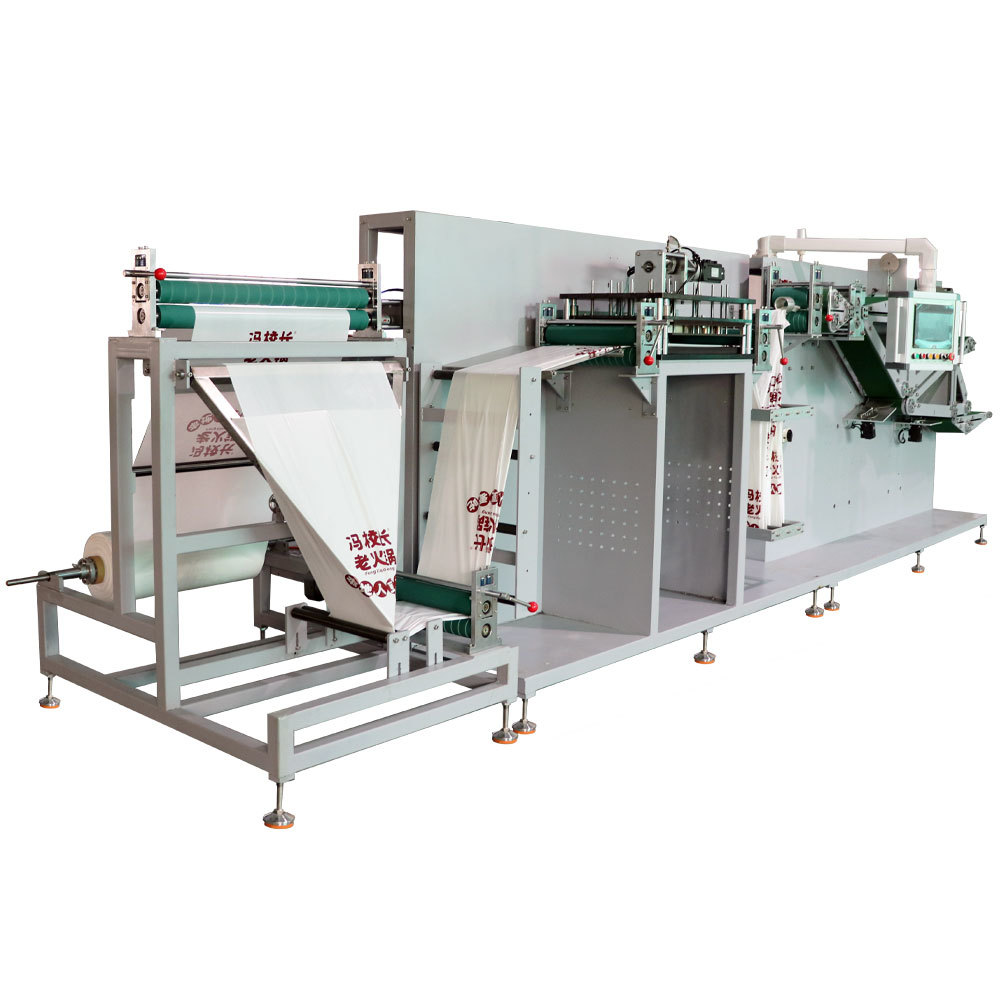

Fully Automatic Crayfish Apron Making Folding Packing All-In-One Production & Packaging Line
This machine is specially designed for the automatic making folding and packing of all kinds of PE apron, widely used in disposable PE aprons for food service, catering, cleaning, beauty salon, home kitchen and light‑duty industrial protection to prevent stains and liquid splashes. It can automatically complete film unwinding, mold cutting, tearing waste, folding, bag forming, sealing, but cutting etc all in one continuous process. With stable operation, high efficiency, and easy operation, it effectively improves packaging neatness and production capacity, greatly reducing labor costs. It is an ideal supporting equipment for disposable PE Apron manufacturers.

It is a full automatic cutting machine, from large material rolls unwinding, mold cutting, waste tearing, folding, bag forming,sealing, cutting etc as set length shape, very compact and ideal design for PE aprons making folding and packing. It is customized for PE apron making, folding, and can be connected with the pillow packing machine for individual pack. Less labour force with high efficients, high pricisely and low costs, which are very useful for the disposable apron manufacturer, especially the ones with difficult in labour forces.

  1. PE Apron Roll Material Conveying: Equipped with a high-precision servo unwinding unit, it stably conveys various apron rolls with adjustable speed to avoid stretching or wrinkling.
  2. Servo Control: Machine is servo driven and control, HMI touching screen, which is easy in operating and maintaining, can set related data in the operating screen directly.
  3. Automatic Folding & Positioning Cutting: Advanced photoelectric positioning realizes precise folding (double/four-fold, etc.) and accurate cutting (error <1mm) by preset parameters.
  4. Pneumatic Clamping & Rolling: Pneumatic clamps transfer folded tablecloths to the rolling unit with adjustable tension, enabling neat rolling with customizable diameter.
  5. Finished Product Delivery: Rolled products are automatically sent out by conveyor belt for easy subsequent packaging and transportation.
Specifications:
Machine Model SN-900A
Raw Material width 860~1200mm

Weight of the machine

Mainframe: about 500KG, automatic loading rack: about 300KG,packing machine 400KG

Operating Environmental Condition

Dry and clean factory

Power supply requirements

Single-phase, AC 220V, 50/60 HZ

The power line interface is a 16A triangle plug.

Machine power

Maximum power 7.5 KW

Air source requirements

Compressed air: 0.6-0.8MPa

Air consumption: 65L/min

3 Inter pipe: 8 centimeters in diameter
Folding speed Folding speed about: 20-40PCS/min
Folded dimensions Depends on actual product
Transmission mode Servo motor, guide rail
Control system: human-computer interface setting operation, PLC programming control

Operator

1 Operator
Machine Details:

1. Making folding and packing all in one machine

It can realize the one-step process of material unwinding, folding, cutting into pieces and rewinding into small rolls.

Fully Automatic Crayfish Apron Making Folding Packing All-In-One Production & Packaging Line

2.Conpact Design Unwinding Raw Material Holder

Large raw material helder design, can install .

 Fully Automatic Crayfish Apron Making Folding Packing All-In-One Production & Packaging Line

3. Working Process

Raw material unwinding - mold cutting - folding - bag forming - sealing - cutting - packed finished products

 Fully Automatic Crayfish Apron Making Folding Packing All-In-One Production & Packaging Line

4.Multi-functional customized mechanical devices enjoy quality service

Fully Automatic Crayfish Apron Making Folding Packing All-In-One Production & Packaging Line
6. Automatic making folding and packing machine for disposable apron individual pack.

Fully Automatic Crayfish Apron Making Folding Packing All-In-One Production & Packaging Line

Packaging And Shipping

It is carefully packaged to ensure it arrives safely at your location. The machine is securely wrapped in protective materials and placed inside a sturdy wooden crate to prevent any damage during transit. All components are individually packed and labeled for easy assembly and installation.

The packaging is designed to withstand long-distance transportation and handling, ensuring that the machine reaches you in perfect working condition.

We also provide installation guides, assist you in setting up the machine quickly and efficiently.

Fully Automatic Crayfish Apron Making Folding Packing All-In-One Production & Packaging Line
