Compatible With Sheer And Thick Large Tablecloth Automatic Rolling & Folding Machine
Compatible With Sheer And Thick Large Tablecloth Automatic Rolling & Folding Machine
Specifications
Brand Name :
Sayok
Model Number :
SN-900
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
EXW US$17900-20950/set
Payment Terms :
T/T
Supply Ability :
50 set /month
Delivery Time :
20-25 working days
Packaging Details :
Exported wooden case
Product Name :
Disposable Deskcloth Folding Reminding Machine
Applicable industries :
PE and non-woven disposable deskcloth
Appearance :
Carbon Steel
Raw material Dia :
1000-1800mm width
Advantages :
Automatic
Functions :
Folding, Cutting, Rewinding etc
Transmission Mode :
Servo motor, guide rail
Control System :
HMI + PLC programming control
Description
Compatible With Sheer And Thick Large Tablecloth Automatic Rolling & Folding Machine
This machine is specially designed for the automatic rolling and folding of large-size disposable tablecloths, widely used in disposable non-woven, plastic, and PEVA tablecloth production lines. It can automatically complete feeding, edge alignment, precise folding, and rolling in one continuous process. With stable operation, high efficiency, and easy operation, it effectively improves packaging neatness and production capacity, greatly reducing labor costs. It is an ideal supporting equipment for disposable tablecloth manufacturers.

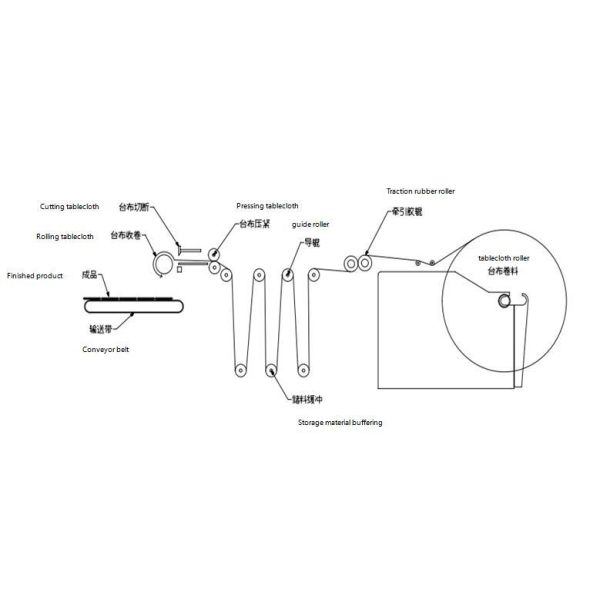

  1. Process Diagram

Compatible With Sheer And Thick Large Tablecloth Automatic Rolling & Folding Machine

It is a full automatic cutting machine, from large material rolls unwinding, folding, rolling, slitting as set length then clipping out for bagging, very compact and ideal design for large tablecloth's folding and cutting. It is customized for tablecloth's folding, and can be connected with the packing machine. Less labour force with high efficients, high pricisely and low costs, which are very useful for the disposable tablecloth manufacturer, especially the ones with difficult in labour forces.

  1. Tablecloth Roll Material Conveying: Equipped with a high-precision servo unwinding unit, it stably conveys various tablecloth rolls with adjustable speed to avoid stretching or wrinkling.
  2. Material Storage and Buffering: A dedicated buffer unit adjusts process rhythm, absorbs speed differences, and ensures production line continuity.
  3. Automatic Folding & Positioning Cutting: Advanced photoelectric positioning realizes precise folding (double/four-fold, etc.) and accurate cutting (error <1mm) by preset parameters.
  4. Pneumatic Clamping & Rolling: Pneumatic clamps transfer folded tablecloths to the rolling unit with adjustable tension, enabling neat rolling with customizable diameter.
  5. Finished Product Delivery: Rolled products are automatically sent out by conveyor belt for easy subsequent packaging and transportation.
Specifications:
Machine Model SN-900A
Raw Material width 1000~1800mm

Weight of the machine

Mainframe: about 310KG, automatic loading rack: about 300KG

Machine color

White baking paint, chrome plating or oxidation surface treatment for some parts

Operating Environmental Condition

Dry and clean factory

Power supply requirements

Single-phase, AC 220V, 50/60 HZ

The power line interface is a 16A triangle plug.

Machine power

Maximum power 1.5KW

Air source requirements

Compressed air: 0.4-0.8MPa

Air consumption: 65L/min

3 Inter pipe: 8 centimeters in diameter
Folding speed Folding speed about: (8~12)±1PCS/min
Folded dimensions length 150 mm to 380mm,Width 150 mm to 220mm
Transmission mode Servo motor, guide rail
Control system: human-computer interface setting operation, PLC programming control

Operator

1 Operator
Machine Details:

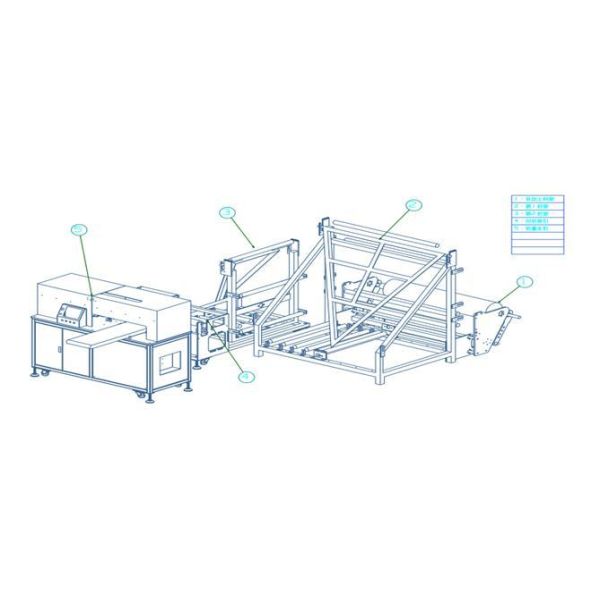

1. Folding & Rewinding Integrated Machine

It can realize the one-step process of material unwinding, folding, cutting into pieces and rewinding into small rolls.

Compatible With Sheer And Thick Large Tablecloth Automatic Rolling & Folding Machine

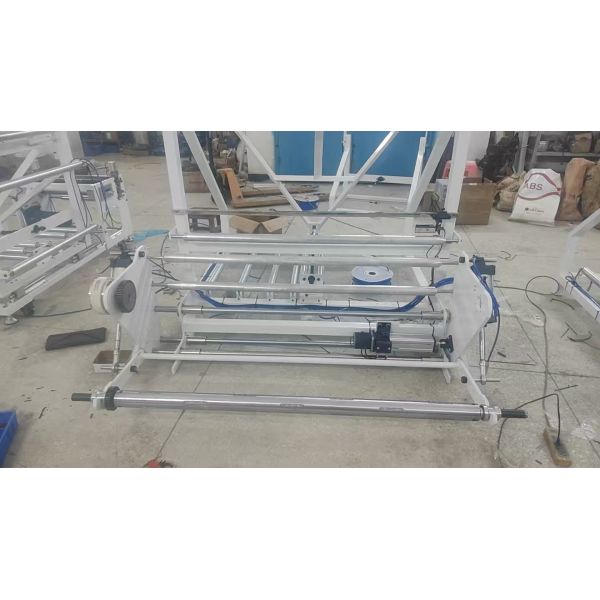

2.Conpact Design Unwinding Raw Material Holder

Large raw material helder design, can install .

 Compatible With Sheer And Thick Large Tablecloth Automatic Rolling & Folding Machine

3. Working Process

This machine consist of 5 parts:
1. Tablecloth roll material conveying;
2. Material storage and buffering;
3. Automatic roll material positioning and cutting.
4. Pneumatic clamp picking up the folded material;
5. Finished product delivery by conveyor belt.

 Compatible With Sheer And Thick Large Tablecloth Automatic Rolling & Folding Machine

4.Multi-functional customized mechanical devices enjoy quality service

Compatible With Sheer And Thick Large Tablecloth Automatic Rolling & Folding Machine

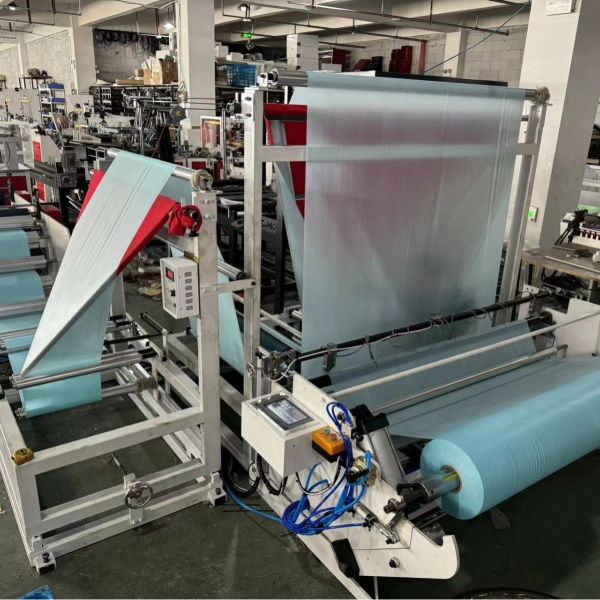

6. Automatic folding and rewinding machine for disposable deskcloth.

Compatible With Sheer And Thick Large Tablecloth Automatic Rolling & Folding Machine
