Specifications
Brand Name :
BIG AUTO
Model Number :
F10
Place of Origin :
China
MOQ :
1 Unit
Payment Terms :
L/C,T/T
Delivery Time :
Within 60 working days of receipt of deposit
Natural gas compressor models :
FD-0.32/(30-200)-250
Natural gas compressor core functions :
Boosts incoming low-pressure natural gas to the high pressure required for filling
Natural gas compressor suction pressure range :
3.0 - 20.0 MPa
Natural gas compressor rated discharge pressure :
25 MPa
Natural gas compressor volumetric flow rate :
0.32 m³/min
Natural gas compressor motor power :
75 KW
Recovery tank vessel type :
Class II pressure vessel
Recovery tank design pressure :
6.2 MPa
Recovery tank volume :
0.45 m³
Unloader flow rate range :
3 ~ 60 kg/min
Description

Market customization CNG Filling Station Solutions Core Equipment Supply



Core Equipment Introduce:

Our Compressed Natural Gas (CNG) Station Solution is equipped with a comprehensive set of specialized machinery to ensure efficient and safe operations. The key equipment includes:

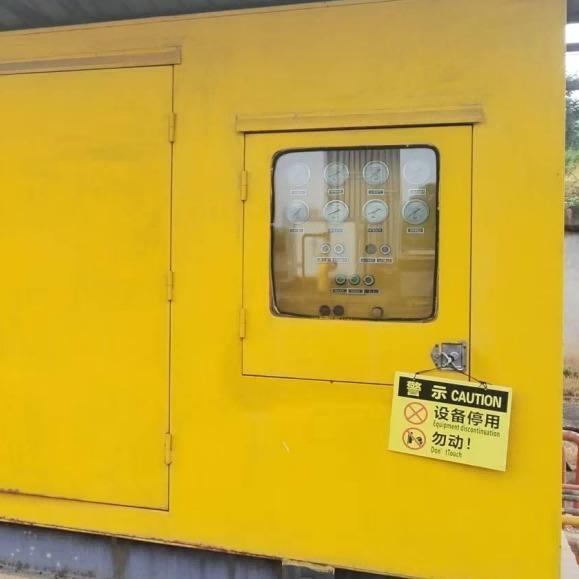

Natural Gas Compressor:
Model: FD-0.32/(30-200)-250

Key Specifications:

  • Suction Pressure: 3.0 - 20.0 MPa
  • Discharge Pressure: 25 MPa
  • Power: 75 KW
  • Volumetric Flow Rate: 0.32 m³/min

Recovery Tank (Vessel):
Type: Class II Pressure Vessel
Product ID: C140733
Key Specifications:

  • Design Pressure: 6.2 MPa
  • Volume: 0.45 m³

Unloading Unit (Priority Panel / Unloading Skid):
Model: JQF-A80B
Key Specifications:

  • Flow Rate Range: 3 ~ 60 kg/min
  • Minimum Measurable Quantity: 5 kg
  • Maximum Working Pressure: 25 MPa

CNG Dispensers:
Model: JQD-B30B (Quantity: 2)
Key Specifications:
Flow Rate Range: 1 ~ 20 kg/min
Minimum Measurable Quantity: 2 kg
Maximum Working Pressure: 25 MPa

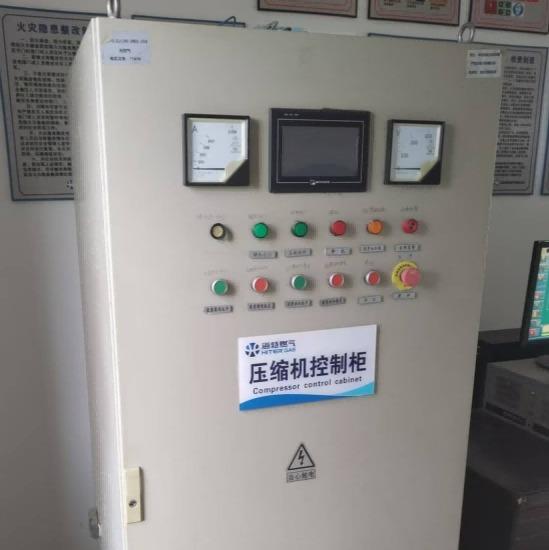

Compressor Electrical Control Cabinet:
Model: VFJ-032/(30-200)-250
Key Specifications:

  • Frequency: 50 Hz
  • Capacity: 75 KW
  • Rated Voltage/Current: 380 V / 150 A

Additional Infrastructure: The station utilizes a network of associated pipelines designed for high-pressure natural gas service to interconnect the equipment.
