Specifications
Brand Name :
WeSeW
Model Number :
CNC0184
Certification :
CE, ISO9001/UL
Place of Origin :
China
MOQ :
1pcs
Price :
US$5~US$50 per pc
Payment Terms :
T/T,Western Union
Supply Ability :
10,000 pieces per month
Delivery Time :
10-20 working day
Packaging Details :
Wooden Case
name :
Spline Shaft Coupling
OEM/ODM :
OEM ODM CNC Milling Turning Machining Service
Material Capabilities :
Aluminum, Brass, Bronze, Copper, Hardened Metals
Application :
Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery
Standard :
DIN, ASTM, GOST, GB, JIS, ANSI, BS
CNC Machining or Not :
CNC Machining
Micro Machining or Not :
Micro Machining
Processing Method :
Customer′s Engineering Drawing
Description
OEM Customized Machine Learning Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling
High-precision flexible steel rectangular spline shaft coupling with keyway tapered structure, designed for demanding industrial applications requiring reliable torque transmission and precise alignment.
Technical Specifications
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Construction Works, Energy & Mining, Other
Material Steel
Standard or Nonstandard Standard
Structure Universal
Warranty 1 year
Bore Diameter 100mm
Maximum Speed 5,000 RPM
Rated Torque 2000 N·m
Type Flexible
Outer Diameter 145mm
Bore Diameter Range 24mm ~ 65mm
Length Range 163mm - 323mm
Bore Type Finished Bore
Surface Treatment Blackening
Minimum Order Quantity 1 Set
Key Features & Benefits
  • High Load Capacity: Multi-tooth structure design with large total contact area and uniform force distribution for substantial torque transmission in heavy-duty applications
  • Excellent Alignment and Guidance: Numerous evenly distributed teeth ensure high alignment precision between shaft and hub, ideal for high-speed operation and precision transmission systems
  • High Structural Strength: Shallow keyways minimize stress concentration at tooth roots, effectively reducing strength degradation in shafts and hubs
  • Wide Application Range: Commonly used in automotive transmissions, machine tool spindles, hydraulic equipment, and other applications demanding high centering accuracy and reliability
  • Diverse Compatibility: Available in rectangular splines (small-diameter centering, easy machining) and involute splines (self-centering, higher strength)

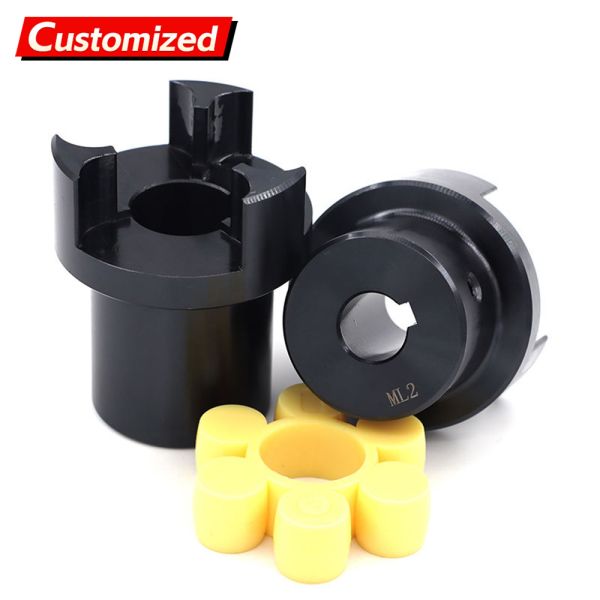

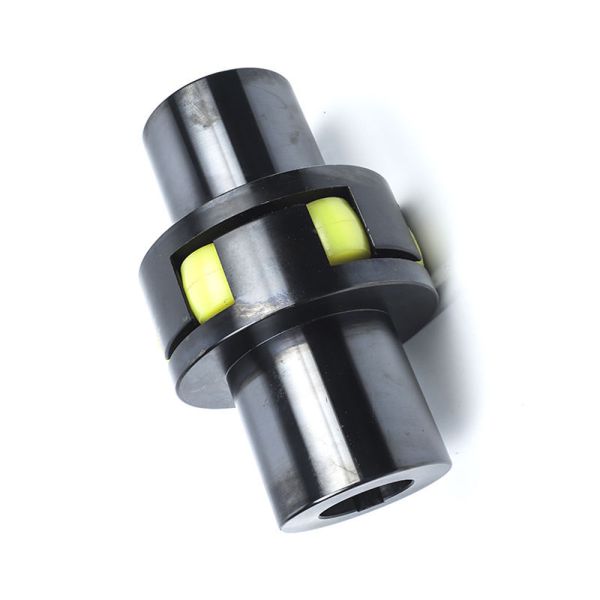

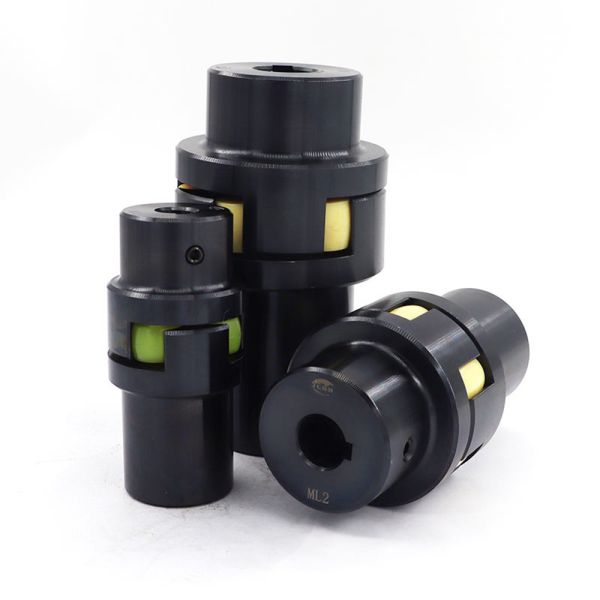

Product Images
OEM Customized Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling with Keyway Tapered Structure and 2000n-m Rated Torque OEM Customized Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling with Keyway Tapered Structure and 2000n-m Rated Torque OEM Customized Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling with Keyway Tapered Structure and 2000n-m Rated Torque OEM Customized Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling with Keyway Tapered Structure and 2000n-m Rated Torque OEM Customized Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling with Keyway Tapered Structure and 2000n-m Rated Torque OEM Customized Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling with Keyway Tapered Structure and 2000n-m Rated Torque
