Specifications
Brand Name :
WeSeW
Model Number :
CNC0184
Certification :
CE, ISO9001/UL
Place of Origin :
China
MOQ :
1pcs
Price :
US$5~US$50 per pc
Payment Terms :
T/T,Western Union
Supply Ability :
10,000 pieces per month
Delivery Time :
10-20 working day
Packaging Details :
Wooden Case
name :
Flexible Star Couplings
OEM/ODM :
OEM ODM CNC Milling Turning Machining Service
Material Capabilities :
Aluminum, Brass, Bronze, Copper, Hardened Metals
Application :
Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery
Standard :
DIN, ASTM, GOST, GB, JIS, ANSI, BS
CNC Machining or Not :
CNC Machining
Micro Machining or Not :
Micro Machining
Processing Method :
Customer′s Engineering Drawing
Description
Custom Flexible Single-Diaphragm Coupling
High-performance flexible shaft coupling featuring torsional rigidity with double-disc assembly and spacers. Transmits torque through elastic deformation of metal diaphragms for precision applications.
Technical Specifications
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Printing Shops, Energy & Mining
Material Steel
Standard or Nonstandard Standard
Structure Disc
Warranty 1 year
Bore Diameter 100mm
Maximum Speed 5,000 RPM
Rated Torque 2000 N·m
Type Diaphragm
Customized Support OEM, ODM
Flexible or Rigid Flexible
Outer Diameter 168mm
Bore Diameter (d1~d2) ≤75mm
Length 133mm
Bore Type Finished Bore
Surface Treatment Blackening
Minimum Order Quantity 1 Set
Key Features & Benefits
Structure and Compensation Characteristics
Compact and lightweight design with short overall length. Comprises a set of diaphragms and two coupling halves. The diaphragms' elastic deformation compensates for small axial, radial, and angular misalignments, making it ideal for installations with limited space.
Performance Advantages
  • All-metal construction - maintenance-free and resistant to oil and corrosion
  • Operates reliably in extreme temperatures from -200°C to +300°C
  • Service life exceeding 10 years
  • Zero-backlash design ensures transmission accuracy
  • Torque transfer efficiency above 99.8%
  • Reduces bearing load for improved system longevity
Applications
Ideal for precision applications including servo motor-ball screw connections, battery assembly line indexing mechanisms, and tire tightening machines. Delivers high-precision torque transmission and positioning. Select models meet FDA certification requirements for food-grade cleanliness standards.

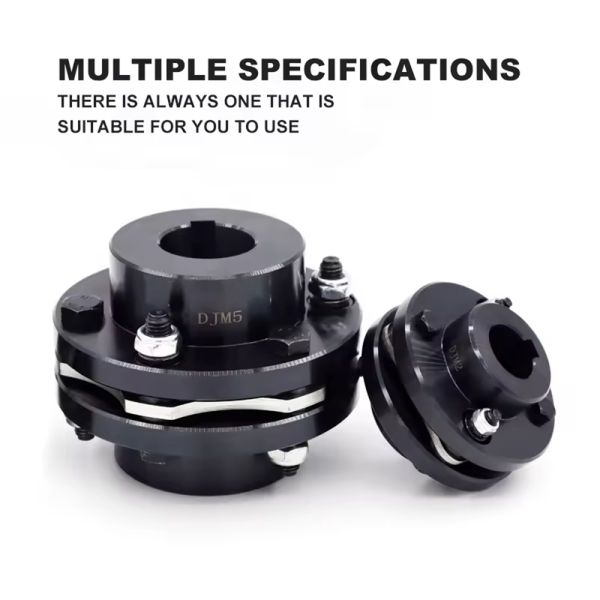

Product Images
Custom Flexible Coupling with 2000n-m Rated Torque and 5000 RPM Maximum Speed for Torsionally Rigid Applications Custom Flexible Coupling with 2000n-m Rated Torque and 5000 RPM Maximum Speed for Torsionally Rigid Applications Custom Flexible Coupling with 2000n-m Rated Torque and 5000 RPM Maximum Speed for Torsionally Rigid Applications Custom Flexible Coupling with 2000n-m Rated Torque and 5000 RPM Maximum Speed for Torsionally Rigid Applications Custom Flexible Coupling with 2000n-m Rated Torque and 5000 RPM Maximum Speed for Torsionally Rigid Applications Custom Flexible Coupling with 2000n-m Rated Torque and 5000 RPM Maximum Speed for Torsionally Rigid Applications
